STATUS SCREEN

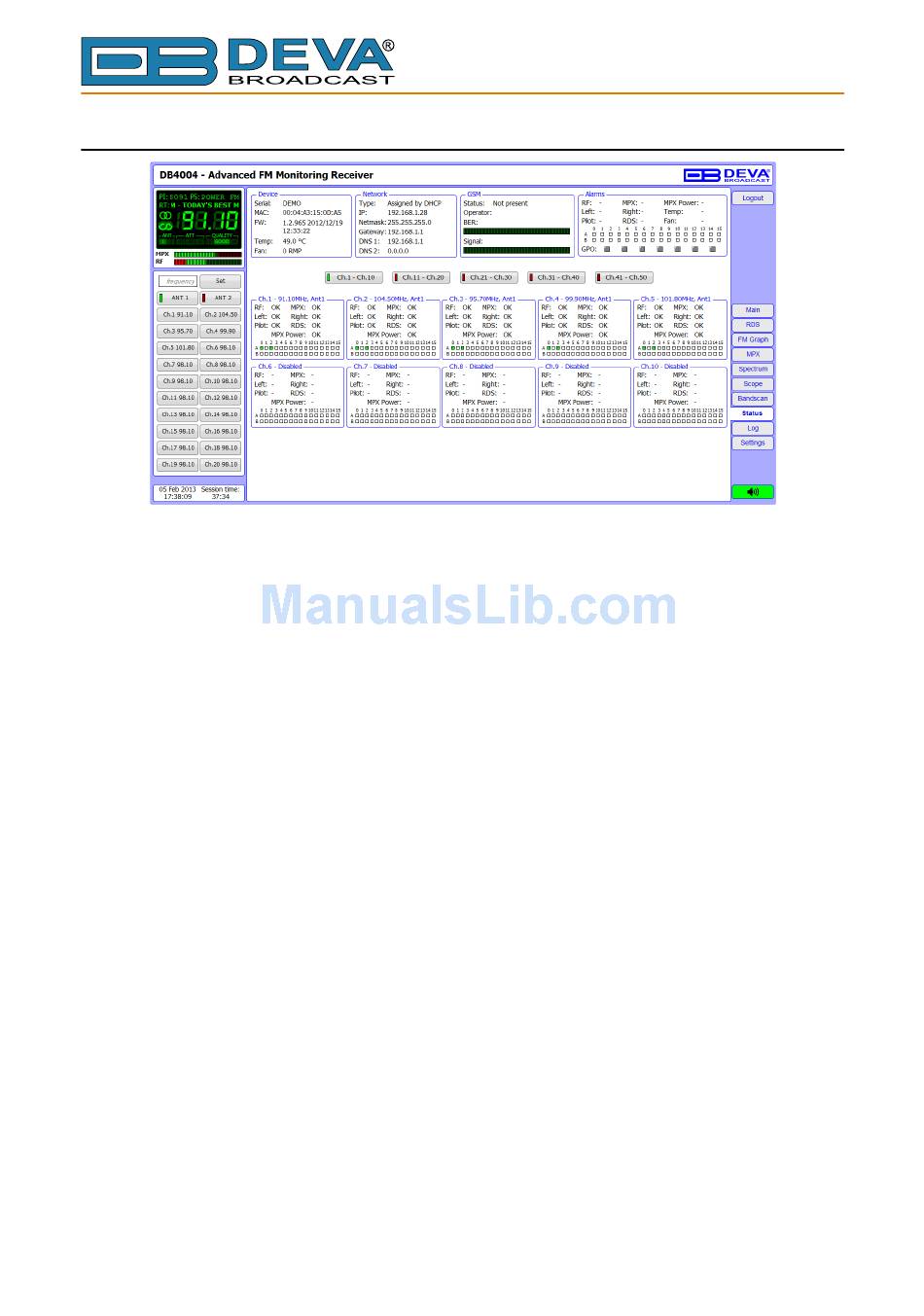

The status tab shows the alarm status of each parameter of the preset frequencies, along with the

basic device and network status (IP address, MAC, etc.).

The Channel parameters (RF, MPX, Pilot etc.) have several conditions:

- In range - green OK;

- Out of range - red LO or HI;

- Signal monitoring is not enabled - n/a.

The status of the RDS/RBDS Groups Alarm is displayed on the bottom of the channels' section:

- Green - RDS/RBDS Group is received;

- Red - RDS/RBDS Group is not received and an alarm has been triggered;

- White (blank) - RDS/RBDS Group is not received and no alarm has been triggered.
