- Page 1 MAINTENANCE AND OPERATION INSTRUCTION MANUAL DB3012 Advanced DAB/DAB+ & IP Audio Confidence Monitoring Receiver Publish Date: 23-Mar-2018...
-
Page 2: Table Of Contents
Contents Introduction ............................6 Typographic conventions ........................7 General Information .......................... 8 Product Features ..........................9 Technical Specifications ........................ 10 Panel Indicators, Switches and Connectors................... 12 OLED Display ..........................12 LED Meters ........................... 12 Context-sensitive soft buttons ......................12 Navigational buttons ........................12 Rear Panel ............................. - Page 3 How to create a preset ........................27 Output ............................28 Setup .............................. 28 Security ............................29 Keyboard lock ........................... 29 Keyboard unlock ........................29 Monitoring ............................. 30 Alarms set-up – Option 1 ......................31 Alarms set-up – Option 2 ......................31 Status .............................
- Page 4 Outputs ............................. 48 Other ............................49 Firmware Update ........................ 49 Storage ..........................49 System Log .......................... 49 Factory Defaults ......................... 49 Reboot Device ........................49 WARRANTY TERMS AND CONDITIONS ................. 50 Product Registration Card ......................51 APPENDIX A ........................... 52 Alarm Triggers ..........................
- Page 5 THIS PAGE IS INTENTIONALLY LEFT BLANK...
-
Page 6: Introduction
E-mail: office@devabroadcast.com ,Web: www.devabroadcast.com Introduction DEVA Broadcast Ltd. is an international communications and high-technology manufacturing organization, its corporate headquarters and facility located in Burgas, Bulgaria. The company serves the broadcast and corporate markets worldwide – from consumers and small businesses to the largest global organizations. -
Page 7: Typographic Conventions
65 Aleksandar Stamboliyski Str., 8000 Bourgas, Bulgaria Tel: +359 56 820027, Fax: +359 56 836700 E-mail: office@devabroadcast.com ,Web: www.devabroadcast.com Typographic conventions This manual uses the following typographic conventions: Style Used for NOTE Important notes and recommendations Example Used when example text is cited “Menu”... -
Page 8: General Information

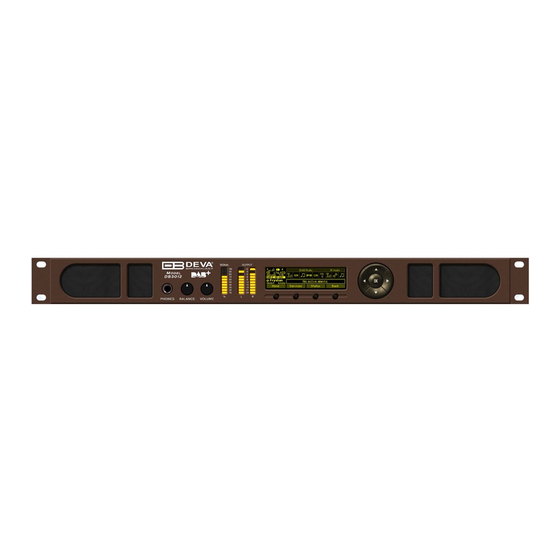

The DB3012 has been developed to bring you quality of sound in addition to ease of operation and programming. Fully compliant with the DAB/DAB+ standard, it is a guarantee of top monitoring performance. -
Page 9: Product Features
65 Aleksandar Stamboliyski Str., 8000 Bourgas, Bulgaria Tel: +359 56 820027, Fax: +359 56 836700 E-mail: office@devabroadcast.com ,Web: www.devabroadcast.com Product Features • DAB/DAB+ compliant receiver • Support for Program Associated Data (PAD) • Predefined DAB channels scan or manual tune •... -
Page 10: Technical Specifications
65 Aleksandar Stamboliyski Str., 8000 Bourgas, Bulgaria Tel: +359 56 820027, Fax: +359 56 836700 E-mail: office@devabroadcast.com ,Web: www.devabroadcast.com TECHNICAL SPECIFICATIONS DAB/DAB+ RADIO RF frequency range 168 - 240 MHz DAB/DAB+ Band III Channels 5A - 13F Sensitivity 18 dBµV Input connector BNC 50Ω... - Page 11 65 Aleksandar Stamboliyski Str., 8000 Bourgas, Bulgaria Tel: +359 56 820027, Fax: +359 56 836700 E-mail: office@devabroadcast.com ,Web: www.devabroadcast.com POWER SUPPLY Voltage 100-240V / 50-60 Hz / 25W Connector IEC320 SIZE AND WEIGHT Dimensions (W;H;D) 485 x 44 x 300 mm Shipping Weight 540 x 115 x 300 mm / 4.000kg - 11 -...
-
Page 12: Panel Indicators, Switches And Connectors
E-mail: office@devabroadcast.com ,Web: www.devabroadcast.com Panel Indicators, Switches and Connectors OLED DISPLAY DB3012 has easy to read, high-resolution OLED graphical display that visualizes all measurements of the received signal and DB3012’s settings. LED METERS The full-time LED meters allow quick and easy monitoring of the metering, making the setup, adjustment and programming easy. -
Page 13: Rear Panel
65 Aleksandar Stamboliyski Str., 8000 Bourgas, Bulgaria Tel: +359 56 820027, Fax: +359 56 836700 E-mail: office@devabroadcast.com ,Web: www.devabroadcast.com REAR PANEL MAX RF LEVEL CAUTION: TO PREVENT ELECTRICAL SHOCK, 100-240VAC MADE IN BULGARIA 50-63Hz, 25VA 110 dB V µ DISCONNECT POWER BEFORE SERVICING w w w.devabroadcast.com PATENT PENDING DESIGN AES/EBU... -
Page 14: Rear Panel Alarm Terminal
65 Aleksandar Stamboliyski Str., 8000 Bourgas, Bulgaria Tel: +359 56 820027, Fax: +359 56 836700 E-mail: office@devabroadcast.com ,Web: www.devabroadcast.com REAR PANEL ALARM TERMINAL AES/EBU AL ARM OUT 1 - GPO1 Collector 9 - GPO1 Emitter 2 - GPO2 Collector 10 - GPO2 Emitter 3 - GPO3 Collector 11 - GPO3 Emitter 4 - GPO4 Collector... -
Page 15: Before You Start
For normal operation of DB3012, we recommend following the instructions listed below. • Install the unit in places with good air conditioning. DB3012 is designed to operate within the ambient temperature range of 10 to 50°C. The equipment rack should be ventilated in order for the device to keep its internal temperature below the maximum ambient temperatures;... -
Page 16: Unpacking And Inspection
Upon receipt, the equipment should be inspected for possible shipping damages. If such are found or suspected, notify the carrier at once and contact DEVA Broadcast Ltd. The original shipping carton box and packing materials should be kept for possible reuse, in case of return for Warranty repair, for example. -
Page 17: Mounting
Mounting RACK REQUIREMENTS The DB3012 mounts in a standard 19-inch equipment rack and requires only 1¾ inches (1U) of vertical rack space. In order the painted finish around the mounting holes to be protected, the use of plastic washers is recommended. -
Page 18: Ac Mains Power
- 100 - 240 VAC - 1 Amp Fuse CAUTION: Permanent damage will result if improper AC supply voltage is applied to DB3012 device. Your warranty does not cover damages caused by applying improper supply voltage, or use of an improper fuse. -
Page 19: Basic Setup
After a few seconds the start-up screen will disappear, replaced by the main screen. This is the starting point of the navigation process. DB3012’s OLED display has three function areas: header, soft buttons and main screen working area. -
Page 20: Numerical Parameter
65 Aleksandar Stamboliyski Str., 8000 Bourgas, Bulgaria Tel: +359 56 820027, Fax: +359 56 836700 E-mail: office@devabroadcast.com ,Web: www.devabroadcast.com There are several parameter types available in DB3012. The way of editing depends of the parameter type. Every parameter type has its own editing rules. Numerical parameter Represents numerical value. -
Page 21: Timer
65 Aleksandar Stamboliyski Str., 8000 Bourgas, Bulgaria Tel: +359 56 820027, Fax: +359 56 836700 E-mail: office@devabroadcast.com ,Web: www.devabroadcast.com Timer Represents relative time interval. Example: Front panel buttons usage: [UP] / [DOWN] – Increments/decrements value with one step. The unit value will be changed automatically from seconds to minutes and vice-versa;... - Page 22 65 Aleksandar Stamboliyski Str., 8000 Bourgas, Bulgaria Tel: +359 56 820027, Fax: +359 56 836700 E-mail: office@devabroadcast.com ,Web: www.devabroadcast.com [Insert] – Inserts blank space before the selected character: – before – after [Delete] – Deletes the selected character: – before –...
-
Page 23: Home Screen
65 Aleksandar Stamboliyski Str., 8000 Bourgas, Bulgaria Tel: +359 56 820027, Fax: +359 56 836700 E-mail: office@devabroadcast.com ,Web: www.devabroadcast.com HOME SCREEN The home screen contains all the needed information as regards the signal received. The header is located on the left part of the screen. The header content is determined according to the work area context and may include the functions described below. - Page 24 65 Aleksandar Stamboliyski Str., 8000 Bourgas, Bulgaria Tel: +359 56 820027, Fax: +359 56 836700 E-mail: office@devabroadcast.com ,Web: www.devabroadcast.com The Soft buttons [SB1], [SB2], [SB3] and [SB4] are/could be assigned with quick access presets. The [UP] and [DOWN] buttons will open the preset list. When a preset is chosen, the [UP] and [DOWN] buttons will visualize list with all available services.
-
Page 25: Main Screen Working Area
NAVIGATION BUTTONS [UP], [DOWN], [LEFT], [RIGHT] and [OK] buttons are used to navigate through the menus, for selecting various functions and parameters of DB3012. The main menu structure has an up- and-down basis, expanded with left-to-right branches. - 25 -... -
Page 26: Menu Pages
65 Aleksandar Stamboliyski Str., 8000 Bourgas, Bulgaria Tel: +359 56 820027, Fax: +359 56 836700 E-mail: office@devabroadcast.com ,Web: www.devabroadcast.com MENU PAGES TUNER This menu allows you to change the Input and apply changes to the currently selected DAB/DAB+ or Internet radio. The new presets are also created through this menu. For further information, please refer to “How to create a preset”... -
Page 27: How To Create A Preset
65 Aleksandar Stamboliyski Str., 8000 Bourgas, Bulgaria Tel: +359 56 820027, Fax: +359 56 836700 E-mail: office@devabroadcast.com ,Web: www.devabroadcast.com HOW TO CREATE A PRESET You can create up-to 10 presets. The number of FM or Internet radio preset is not limited. For example, you can set 7 DAB/DAB+ presets and 3 Internet radio presets, or 10 DAB/DAB+ presets, and etc. -
Page 28: Output
65 Aleksandar Stamboliyski Str., 8000 Bourgas, Bulgaria Tel: +359 56 820027, Fax: +359 56 836700 E-mail: office@devabroadcast.com ,Web: www.devabroadcast.com OUTPUT The settings applied through this menu have influence on the audio level of the analog and digital outputs. SETUP Enter the main Menu page, select Setup icon and press [OK]. The Setup menu is organized into a hierarchical tree menu and all similar parameters are grouped into sections (branches). -
Page 29: Security
If you do not manage to unlock the front panel with the default password, nevertheless whether it has been changed intentionally or not, DB3012 should be returned to its factory defaults in order for the password security to be disabled. -
Page 30: Monitoring
65 Aleksandar Stamboliyski Str., 8000 Bourgas, Bulgaria Tel: +359 56 820027, Fax: +359 56 836700 E-mail: office@devabroadcast.com ,Web: www.devabroadcast.com MONITORING This menu pages allows you to apply the needed settings to the alarms. The following submenus are available: • Alarm Notification – you can enable/disable the available notification types. Alarms –... -
Page 31: Alarms Set-Up - Option 1
65 Aleksandar Stamboliyski Str., 8000 Bourgas, Bulgaria Tel: +359 56 820027, Fax: +359 56 836700 E-mail: office@devabroadcast.com ,Web: www.devabroadcast.com Alarms set-up – Option 1 The bar graph indicates the signal range of the alarm. The highlighted area represents the permitted signal value range. If current signal value (pos. 4) is in this range, no alarm event will be generated. -
Page 32: Status
65 Aleksandar Stamboliyski Str., 8000 Bourgas, Bulgaria Tel: +359 56 820027, Fax: +359 56 836700 E-mail: office@devabroadcast.com ,Web: www.devabroadcast.com STATUS The basic/general information on the device is found here: • Device – Model, Serial number, Firmware version in use, Calibration, Storage capacity; IP address –... -
Page 33: Web Interface
E-mail: office@devabroadcast.com ,Web: www.devabroadcast.com WEB Interface DB3012 is also controlled through a built-in web server. A standard web browser can be used to monitor its status or to make some adjustments. There are two options for access to the WEB interface of DB3012: •... -
Page 34: Access
E-mail: office@devabroadcast.com ,Web: www.devabroadcast.com ACCESS DB3012 provides you with a protected access to the device settings. You can choose between two types of log in: 1. As an ADMINISTRATOR – it will give you full control over the settings (username: admin, password: pass);... -
Page 35: Web Interface Menu Pages
65 Aleksandar Stamboliyski Str., 8000 Bourgas, Bulgaria Tel: +359 56 820027, Fax: +359 56 836700 E-mail: office@devabroadcast.com ,Web: www.devabroadcast.com WEB Interface Menu pages MAIN The main screen contains information on the mandatory parameters for the currently selected DAB/DAB+ station and Internet radio. A set of interactive buttons enabling the fast switch between the presets assigned is also available. -
Page 36: Dab
65 Aleksandar Stamboliyski Str., 8000 Bourgas, Bulgaria Tel: +359 56 820027, Fax: +359 56 836700 E-mail: office@devabroadcast.com ,Web: www.devabroadcast.com This page contains information on all the mandatory parameters of the currently selected service. Slideshow is also displayed (if available). - 36 -... -
Page 37: Log
Here are listed all the Device System Events. The local measurements and logs are saved in the internal device memory. All log files can be downloaded via the built-in FTP server. For information on how the connection between the DB3012 and an FTP Client should be configured, please refer to “APPENDIX B : Download files via FTP”... -
Page 38: Settings
DB3012 provides you with protected access to the device settings. Security In order for the security of DB3012 to be enhanced, a new username and password could be set from the menu. You can choose between two types of log in. -
Page 39: Sntp Internet Time
Tel: +359 56 820027, Fax: +359 56 836700 E-mail: office@devabroadcast.com ,Web: www.devabroadcast.com SNTP Internet Time Synchronizes automatically the DB3012 clock to a millisecond with the Internet time server. Press [Enable] to use the function. (Specifying the server closest to your location will improve the accuracy). -
Page 40: Dab Radio
65 Aleksandar Stamboliyski Str., 8000 Bourgas, Bulgaria Tel: +359 56 820027, Fax: +359 56 836700 E-mail: office@devabroadcast.com ,Web: www.devabroadcast.com DAB Radio The Tuner Section gives control over Tuner settings, allowing you to select a DAB channel and service. All available services will be listed below once the list is collected from the multiplex data. -
Page 41: Ip Radio
The IP Radio tab allows you to change the setting of the currently selected internet stream, or to specify a new one. If a new internet stream is added, the DB3012 will automatically switch to it upon pressing the [Save] button. -
Page 42: Presets
Tel: +359 56 820027, Fax: +359 56 836700 E-mail: office@devabroadcast.com ,Web: www.devabroadcast.com Presets The DB3012 allows 10 user presets to be set and saved in the device’s memory. The procedure of adding a new preset is quite simplified. How to make a DAB/DAB+ preset Once an available preset is selected, in order for a DAB/DAB+ preset to be made: 1. - Page 43 65 Aleksandar Stamboliyski Str., 8000 Bourgas, Bulgaria Tel: +359 56 820027, Fax: +359 56 836700 E-mail: office@devabroadcast.com ,Web: www.devabroadcast.com The here specified presets could be easily changed via the interactive buttons placed in the Main page of the WEB interface. NOTE: In order for the applied settings to be used press the [Save] button, placed on the bottom right part of the screen.
-
Page 44: Alarms
65 Aleksandar Stamboliyski Str., 8000 Bourgas, Bulgaria Tel: +359 56 820027, Fax: +359 56 836700 E-mail: office@devabroadcast.com ,Web: www.devabroadcast.com Alarms - 44 -... -
Page 45: Alarm Notifications
65 Aleksandar Stamboliyski Str., 8000 Bourgas, Bulgaria Tel: +359 56 820027, Fax: +359 56 836700 E-mail: office@devabroadcast.com ,Web: www.devabroadcast.com Alarm notifications [E-mail] – global enable/disable E-mail notification; [SNMP] – global enable/disable SNMP notification; [GPO] – global enable/disable GPO actions. NOTE: If the monitoring option is disabled, notifications will not be sent, nevertheless whether they are enabled or disabled. -
Page 46: Communication
In order for the built-in DHCP client to be activated, the function should be [Enabled]. When the DHCP client is activated, all assigned values will be shown in the relevant fields on the Network Status. If due to any reason, the DHCP procedure cannot be completed, DB3012 will use AutoIP and will generate an IP address. -
Page 47: Ftp Server
SNMP Manager. SNMP MIB File The latest MIB file can be downloaded directly from the DB3012 by pressing the [Download] button. Downloading this file from the device, guarantees that you have the proper MIB file. -
Page 48: Outputs
65 Aleksandar Stamboliyski Str., 8000 Bourgas, Bulgaria Tel: +359 56 820027, Fax: +359 56 836700 E-mail: office@devabroadcast.com ,Web: www.devabroadcast.com Outputs The general purpose outputs settings are applied through this page. The Audio output section allows Audio Vol for the analog output to be set, and the Digital Out to be [Enabled] or [Disabled]. Type and Pulse time for each of the GPOs could be set individually. -
Page 49: Other
[Retain IP] – all settings except for the Network settings (IP addresses) will be deleted. To restore DB3012 to its factory defaults select one of the available options (described above) and then press the button. A new window will appear - confirm that you want to restore the factory defaults and wait for the process to be completed. -
Page 50: Warranty Terms And Conditions
A. Equipment will not be accepted for Warranty or other repair without a Return Authorization (RA) number issued by DEVA Broadcast Ltd. prior to its return. An RA number may be obtained by calling the factory. The number should be prominently marked on the outside of the shipping carton. -
Page 51: Product Registration Card
Your signature* *Signing this warranty registration form you are stating that all the information provided to DEVA Broadcast Ltd. are truth and correct. DEVA Broadcast Ltd. declines any responsibility for the provided information that could result in an immediate loss of warranty for the above specified product(s). -
Page 52: Alarm Triggers
65 Aleksandar Stamboliyski Str., 8000 Bourgas, Bulgaria Tel: +359 56 820027, Fax: +359 56 836700 E-mail: office@devabroadcast.com ,Web: www.devabroadcast.com APPENDIX A ALARM TRIGGERS After collecting all the data, the DSP-based core compares the values measured with the predefined by the user threshold levels, for all the alarms monitored. In case that a parameter is beyond limits, the device will initiate the sending of an alarm notification via the selected communication path. - Page 53 65 Aleksandar Stamboliyski Str., 8000 Bourgas, Bulgaria Tel: +359 56 820027, Fax: +359 56 836700 E-mail: office@devabroadcast.com ,Web: www.devabroadcast.com parameter level becomes stable, within thresholds, and the alarm Trigger time is not elapsed, then the Alarm Trigger remains in Idle state. If the alarm Trigger time expires and the parameter level is still beyond limits, the Alarm trigger would change its state to High/Low.
-
Page 54: Alarm Notification
Alias, date and time of alarm triggered, frequency and information about the alarm activation/ deactivation. The basic signal parameters are also included. Example for E-mal Notification: Example Stereo Recover Date: 01 Apr 2015, 16:48:36 DB3012 reports IDLE alarm Idle: Stereo RECOVERED Signal parameters: RF: 21dBuV Stereo: OK FM Tuner Left: -11.6dBFs... -
Page 55: Example Rf
65 Aleksandar Stamboliyski Str., 8000 Bourgas, Bulgaria Tel: +359 56 820027, Fax: +359 56 836700 E-mail: office@devabroadcast.com ,Web: www.devabroadcast.com Example RF Date: 06 Apr 2015, 17:33:22 DB3012 reports ACTIVE alarm Alarm: RF < 46dBuV Signal parameters: RF: 39dBuV Stereo: OK FM Tuner Left: -14.2dB... -
Page 56: Download Files Via Ftp
65 Aleksandar Stamboliyski Str., 8000 Bourgas, Bulgaria Tel: +359 56 820027, Fax: +359 56 836700 E-mail: office@devabroadcast.com ,Web: www.devabroadcast.com APPENDIX B DOWNLOAD FILES VIA FTP In order for a connection to be established the following setting should be applied: FTP Server Settings The built-in FTP Server has four important parameters that should be configured: Command Port, Data Port, User name and Password. -
Page 57: Example Of Ftp Client (Filezilla) Settings
65 Aleksandar Stamboliyski Str., 8000 Bourgas, Bulgaria Tel: +359 56 820027, Fax: +359 56 836700 E-mail: office@devabroadcast.com ,Web: www.devabroadcast.com Example of FTP Client (FileZilla) Settings In some cases, FileZilla’s “Quick connect” feature is not able to connect with the DEVA unit. That is why we recommend the device to be assigned in the program manually.
