Left / Right Buttons – change the center frequency of the data plot on 500 kHz increments. The
center frequency permitted values depend on the currently selected X span. The selected center
frequency value is briefly displayed on the screen.
Up / Down Buttons – changes Y axis reference (the value for the bottom of the Y scale). Permitted
values vary from -20dBμV to 110dBμV in 10dBμV increments. The upper limit of the Y reference
depends on the currently selected Y span. Upon selection, the Y reference is briefly displayed on
the screen.
E-mail: office@devabroadcast.com ,Web: www.devabroadcast.com

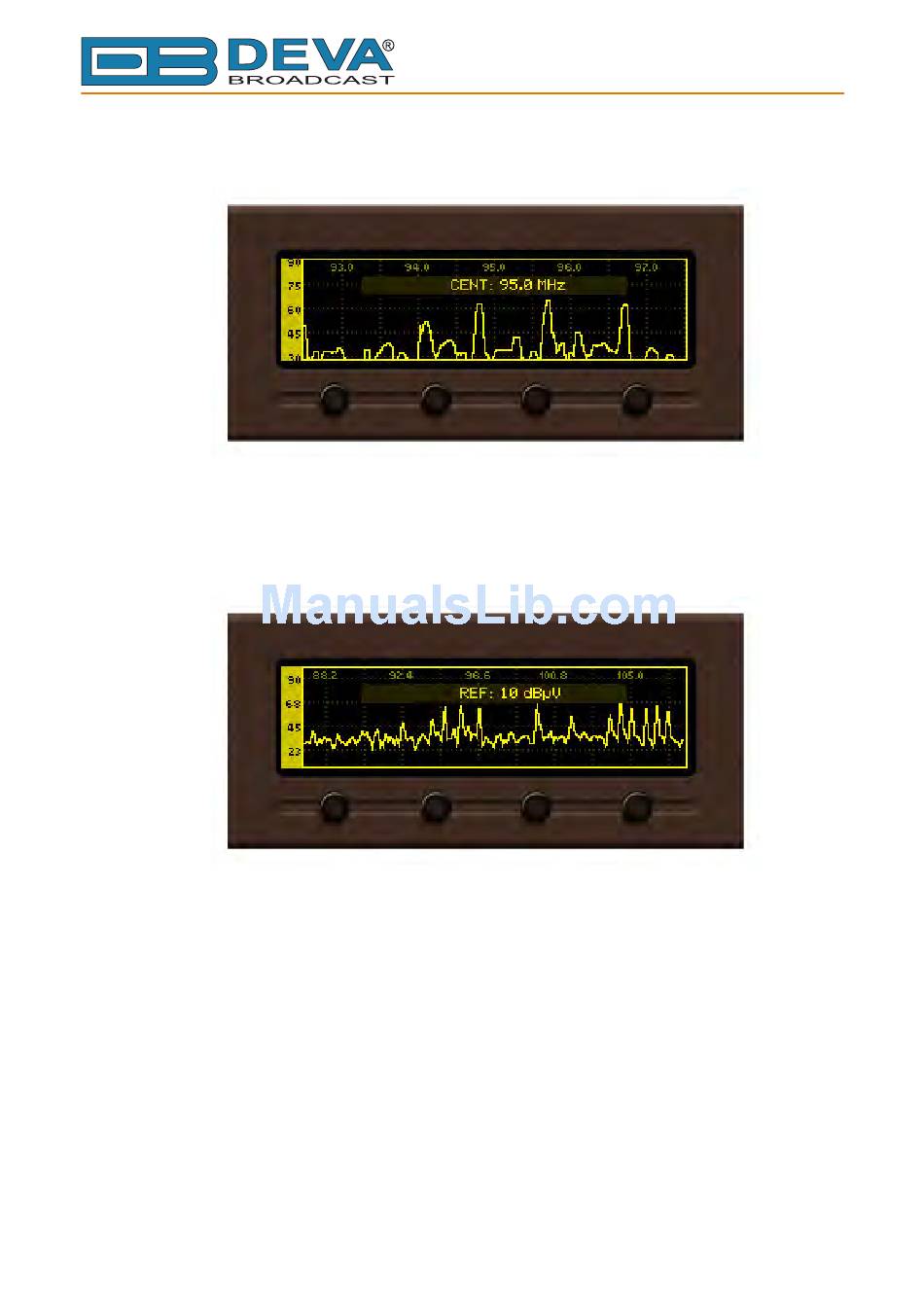

95 MHz center frequency is selected
10 dBµV reference is selected
