MAIN SCREEN

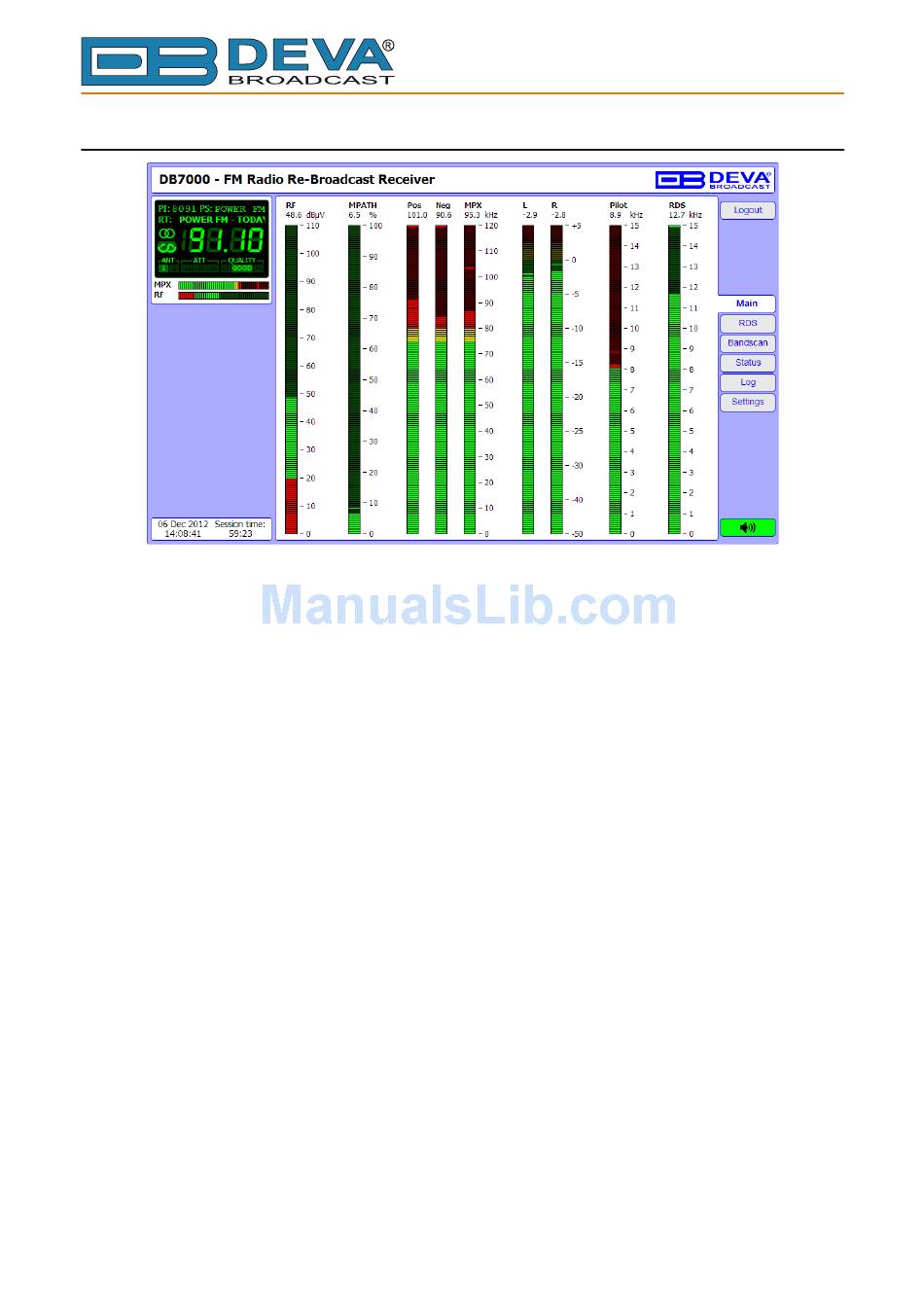

The Main Screen of the WEB Interface shows all the mandatory parameters represented as LED

readings - RF level, measured multipath level, baseband modulation (positive and negative peaks),

audio levels, PILOT and RDS/RBDS levels.

- 53 -
