DEVA Broadcast DB4004 Maintenance And Operation Instruction Manual

Dsp-based fm radio monitoring receiver with tcp/ip connectivity
Hide thumbs Also See for DB4004:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual
MAINTENANCE AND OPERATION
INSTRUCTION MANUAL

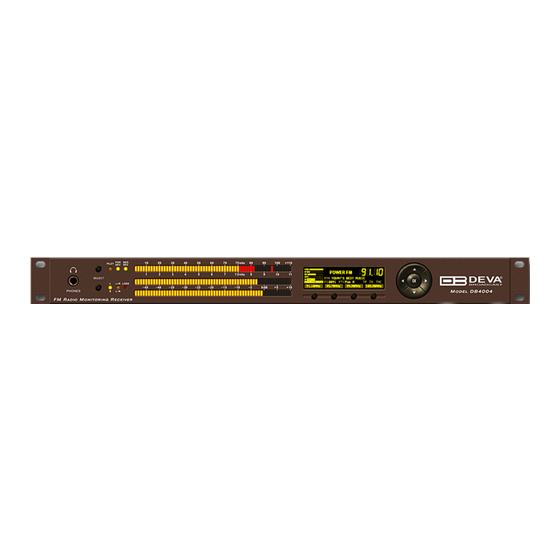

DB4004
DSP-based FM Radio Monitoring Receiver
with TCP/IP Connectivity
Publish Date: 17-Aug-2015

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DB4004 and is the answer not in the manual?

Questions and answers

Related Manuals for DEVA Broadcast DB4004

Summary of Contents for DEVA Broadcast DB4004

  • Page 1 MAINTENANCE AND OPERATION INSTRUCTION MANUAL DB4004 DSP-based FM Radio Monitoring Receiver with TCP/IP Connectivity Publish Date: 17-Aug-2015...

  • Page 2: Table Of Contents

    Contents Introduction ............................6 General Information .......................... 7 Product Features ..........................8 Technical Specifications ........................9 Block Diagram ..........................11 Before you start ..........................12 Safety Precautions ......................... 12 Operating Environment Recommendations................... 13 Installation Specifications and Precautions regarding the RF Environment. Antenna Consider- ation.
  • Page 3 Marker control state: ......................33 Parameter control state: ...................... 34 FFT Page ..........................35 Scope Page ..........................37 Measure Stereo page ........................ 38 Graphs page ..........................39 Levels page ..........................41 RDS decoder page ........................45 Settings page ..........................47 WEB Interface ..........................
  • Page 4 Factory Defaults ........................72 Reboot ............................72 APPENDIX 1: Alarm Triggers ....................... 73 Alarm Triggers ..........................73 Alarm Notifications ........................75 APPENDIX 2: List of DB4004 settings ..................76 WARRANTY TERMS AND CONDITIONS ................. 84 Product Registration Card ......................85...
  • Page 5 THIS PAGE IS INTENTIONALLY LEFT BLANK...

  • Page 6: Introduction

    E-mail: office@devabroadcast.com ,Web: www.devabroadcast.com Introduction DEVA Broadcast Ltd. is an international communications and high-technology manufacturing organization, its corporate headquarters and facility located in Burgas, Bulgaria. The company serves the broadcast and corporate markets worldwide – from consumers and small businesses to the largest global organizations.

  • Page 7: General Information

    LAN communication interfaces, allowing flexibility in remote connection and control of the unit. The DB4004 is the most cost effective way for regular monitoring of the quality and continuity of your station and up to 50 other FM Radio Stations, with many innovative features such as TCP/ IP connectivity, audio streaming, and automatic alerts for operation outside of predefined ITU-R ranges.

  • Page 8: Product Features

    65 Aleksandar Stamboliyski Str., 8000 Bourgas, Bulgaria Tel: +359 56 820027, Fax: +359 56 836700 E-mail: office@devabroadcast.com ,Web: www.devabroadcast.com Product Features • FM Band 87 - 108 MHz Basic Spectrum Analyzer • Dual antenna ports with built-in RF attenuator • Up to 100 dBµV direct RF Antenna Input •...

  • Page 9: Technical Specifications

    65 Aleksandar Stamboliyski Str., 8000 Bourgas, Bulgaria Tel: +359 56 820027, Fax: +359 56 836700 E-mail: office@devabroadcast.com ,Web: www.devabroadcast.com TECHNICAL SPECIFICATIONS RF INPUT Tuning Range 88 to 108 MHz, Frequency Agile Tuning Step 10, 20, 50, 100 kHz Tuner Sensitivity 30 dBµV Antenna Ports Dual, 2 x BNC Connectors, 50Ω...
  • Page 10 65 Aleksandar Stamboliyski Str., 8000 Bourgas, Bulgaria Tel: +359 56 820027, Fax: +359 56 836700 E-mail: office@devabroadcast.com ,Web: www.devabroadcast.com FFT SPECTRUM ANALYSIS (RF, COMPOSITE, AUDIO) Signal Sources RF (IF), MPX, Left, Right FFT length 2048 points Dynamic range 90 dB SCOPE ANALYSIS (RF, COMPOSITE, AUDIO) Signal Sources RF (IF), MPX, Pilot, RDS, Main, Sub, Left, Right...

  • Page 11: Block Diagram

    OLED User controls Because of the all-digital, minimalist-discrete-component nature of device circuitry, we have not provided schematic diagrams of the DB4004 in this Manual. Please, note that: NO USER-SERVICEABLE COMPONENTS INSIDE. REFER ALL SERVICING TO QUALIFIED TECHNICAL PERSONNEL. - 11 -...

  • Page 12: Before You Start

    MOS components. ATTENTION: DB4004 uses internal Lithium battery. Do not try to re-charge this battery!!! In case you have to change the battery, please contact us for detailed instructions and more information for the battery type.

  • Page 13: Operating Environment Recommendations

    We do not recommend installation in rooms with high humidity, dusty places or other aggressive conditions. • Although it is expected that a DB4004 will be installed close to exciters (or transmitters of even higher-power!), please practice reasonable care and common sense in locating the unit away from abnormally high RF fields.

  • Page 14: Installation Specifications And Precautions Regarding The Rf Environment. Antenna Consider- Ation

    The typical RF output level of such sources is too high for the normal operation of the DB4004 receiver. We strongly recommend using external RF attenuators with attenuation value between 20 – 90dB for reaching optimal RF output level in the 55-60 dBµV range.

  • Page 15: Connecting Ac Power And Voltage Selection

    - 1 Amp Fuse CAUTION: Permanent damage will result if improper AC supply voltage is applied to the DB4004 device. Your warranty does not cover damages caused by applying improper supply voltage, or use of an improper fuse. - 15 -...

  • Page 16: Panel Indicators, Switches And Connectors

    FRONT PANEL – LEFT AND RIGHT AREAS The DB4004 front panel can be provisionally divided into two main areas – Left Area and Right Area. A brief description of controls and switches, indicators and displays located in both areas is given below.

  • Page 17: Rear Panel

    65 Aleksandar Stamboliyski Str., 8000 Bourgas, Bulgaria Tel: +359 56 820027, Fax: +359 56 836700 E-mail: office@devabroadcast.com ,Web: www.devabroadcast.com REAR PANEL 1. Mains connector, 110-240VAC, IEC-320 C14 type; 2. Fuseholder – 1A; 3. Audio Left Output - XLR; 4. Audio Right Output - XLR; 5.

  • Page 18: Rear Panel Alarm Terminal

    65 Aleksandar Stamboliyski Str., 8000 Bourgas, Bulgaria Tel: +359 56 820027, Fax: +359 56 836700 E-mail: office@devabroadcast.com ,Web: www.devabroadcast.com REAR PANEL ALARM TERMINAL 1 - GPO1 Collector 9 - GPO1 Emitter 2 - GPO2 Collector 10 - GPO2 Emitter 3 - GPO3 Collector 11 - GPO3 Emitter 4 - GPO4 Collector 12 - GPO4 Emitter...

  • Page 19: Operation

    Such antenna besides improving the signal strength, will contribute in eliminating the multipath distortion. A bargraph indicator used in DB4004 allows measuring the strength of the signal being received, where the rule “the more the better” is in force. To reach this indicator, activate LEVELS menu.

  • Page 20: Co-Channel Interference

    Another thing which would result in mutual interference between the broadcasting stations is poor frequency planning. The inherent broad bandwidth of the DB4004 receiver is vulnerable from stations working on the nearby frequencies, where signal strength will be the most important factor – the stronger the interfering station, the stronger the interference effect.

  • Page 21: First Time Power On

    NOTE: The DB4004 powers-up to the last selected frequency. This frequency, along with some of the settings and parameters will be held by the DB4004’s non-volatile memory and used on switching on of DB4004. Plug the headphones into the front panel jack PHONES and using the LEFT< or RIGHT>...

  • Page 22: Front Panel - Readout Section (Left Side)

    65 Aleksandar Stamboliyski Str., 8000 Bourgas, Bulgaria Tel: +359 56 820027, Fax: +359 56 836700 E-mail: office@devabroadcast.com ,Web: www.devabroadcast.com FRONT PANEL – READOUT SECTION (LEFT SIDE) Phones Phones jack to monitor the received signal. Headphones volume can be menu adjusted by going to Settings >...

  • Page 23: L, R, L+R, L-R

    LOSS – indicating that the audio of the Left and/or Right stereo channel is lost. DB4004 can detect program audio loss and alarm is initiated whenever any of the Left or Right channels of the stereo pair drops below selected threshold for certain time. The LOSS detection threshold level and time can be adjusted from Settings >...

  • Page 24: Front Panel - Lcd Display, Navigational & Soft Buttons (Right Side)

    E-mail: office@devabroadcast.com ,Web: www.devabroadcast.com FRONT PANEL - LCD DISPLAY, NAVIGATIONAL & SOFT BUTTONS (RIGHT SIDE) Display The DB4004’s OLED display has three function areas: Header, Soft Buttons and Main Screen Working area. OLED Display with its function areas - 24 -...

  • Page 25: Header Area

    - Attenuator Indicator – showing the currently selected position of the active Antenna Input. Attenuator’s position can be set manually by the operator or automatically be the DB4004. - Indicator for Stereophonic Information contained in the received signal and currently selected de-emphasis time constant.

  • Page 26: Soft Buttons

    65 Aleksandar Stamboliyski Str., 8000 Bourgas, Bulgaria Tel: +359 56 820027, Fax: +359 56 836700 E-mail: office@devabroadcast.com ,Web: www.devabroadcast.com Soft Buttons Soft buttons are located on the bottom side of the OLED Display making possible direct transition from some of the pages to another page. In such cases the inscription of a specified Soft Button corresponds to the page it is linked with.

  • Page 27: Main Screen Working Area

    The Menu Screen (shown below) appears after a short pressing of the “OK” Navigational Button. The DB4004’s Menu Page contains selectable icons and software buttons for selecting modes and functionalities of this device. Pressing Left and Right arrow buttons changes icon selection of the Menu Page.

  • Page 28: Operating Modes And Pages

    PRESET is a pre-saved set of parameters for instant automatic recall later on. Creating a new Preset Navigate to page of the DB4004 in which Soft Buttons are assigned to Preset. In such page the labels of the soft buttons are FM Frequencies (e.g. Home page). Select desired frequency by the Navigational Buttons and press hold Soft Button for about 2 seconds until two short beeps are heard from DB4004.

  • Page 29: Bandscan Page

    Select Bandscan icon from Menu page and short press OK button on it. The transition to Bandscan page will be made. The data from last bandscan since DB4004 power-up will be shown on the display. If there is no data from previous bandscan the empty grid will be displayed.
  • Page 30 65 Aleksandar Stamboliyski Str., 8000 Bourgas, Bulgaria Tel: +359 56 820027, Fax: +359 56 836700 E-mail: office@devabroadcast.com ,Web: www.devabroadcast.com Short pressing SB3 once will make the transition from Marker to Span control state and Soft button labels will be changed accordingly. The controls state of the page will be changed alternatively between Marker and Span on every SB3 press.

  • Page 31: Span Control State

    65 Aleksandar Stamboliyski Str., 8000 Bourgas, Bulgaria Tel: +359 56 820027, Fax: +359 56 836700 E-mail: office@devabroadcast.com ,Web: www.devabroadcast.com Span control state: In this state SB1, SB2 and Arrow buttons controls span of the data plot. The following is description of button assignments in span control state: (SB1) cycles through available span values for X axis of the data plot.
  • Page 32 65 Aleksandar Stamboliyski Str., 8000 Bourgas, Bulgaria Tel: +359 56 820027, Fax: +359 56 836700 E-mail: office@devabroadcast.com ,Web: www.devabroadcast.com Left / Right Buttons – changes center frequency of the data plot on 500 kHz increments. Permitted values for center frequency depends from currently selected X span. Selected value for center frequency is briefly displayed on the screen.

  • Page 33: Marker Control State

    65 Aleksandar Stamboliyski Str., 8000 Bourgas, Bulgaria Tel: +359 56 820027, Fax: +359 56 836700 E-mail: office@devabroadcast.com ,Web: www.devabroadcast.com Marker control state: Up to two markers, named “A” and “B” are available in Bandscan page. SB1, SB2, Left and Right buttons controls the visibility and position of the Markers. Button assignments: (SB2) controls Marker A / Marker B appearance.

  • Page 34: Parameter Control State

    65 Aleksandar Stamboliyski Str., 8000 Bourgas, Bulgaria Tel: +359 56 820027, Fax: +359 56 836700 E-mail: office@devabroadcast.com ,Web: www.devabroadcast.com Parameter control state: Parameter control state allows specific parameters to be set before starting the bandscan. Button assignments: Left / Right Buttons – cycles through available parameters. Up / Down Buttons –...

  • Page 35: Fft Page

    As name of the page shows, spectral components of the selected signal are determined on the base of Fast Fourier Transform. The data from last selected FFT source signal since DB4004 power-up will be shown on the display.
  • Page 36 – indicates buffer numbers taken into account in calculation and obtaining the average signal. The possible values of the parameter are: 1 (no average), 5, 10, 20, 50, Infinite – sets the frequency at which the DB4004 is tuned. - 36 -...

  • Page 37: Scope Page

    This mode represents the observed signal change over time. In order to maximize the plot area, the Header and Soft buttons labels are hidden. The data from last selected Scope source signal since DB4004 power-up will be shown on the display.

  • Page 38: Measure Stereo Page

    65 Aleksandar Stamboliyski Str., 8000 Bourgas, Bulgaria Tel: +359 56 820027, Fax: +359 56 836700 E-mail: office@devabroadcast.com ,Web: www.devabroadcast.com Measure Stereo page Select Stereo icon from Menu page and short press OK button on it. The transition to Measure Stereo page will be made. The graphical representation of the phase relations between Left and Right audio channels is illustrated above.

  • Page 39: Graphs Page

    65 Aleksandar Stamboliyski Str., 8000 Bourgas, Bulgaria Tel: +359 56 820027, Fax: +359 56 836700 E-mail: office@devabroadcast.com ,Web: www.devabroadcast.com Graphs page Select Graphs icon from Menu page and short press OK button on it. The transition to Graphs page will be made. Graph page represents the value deviation of measured parameters in time.
  • Page 40 65 Aleksandar Stamboliyski Str., 8000 Bourgas, Bulgaria Tel: +359 56 820027, Fax: +359 56 836700 E-mail: office@devabroadcast.com ,Web: www.devabroadcast.com Button assignments: OK – Transition to Main menu page. Left/Right – Changes current frequency. Up/Down – Changes currently displayed parameter history. Following parameters are available for observation: •...

  • Page 41: Levels Page

    Select Level icon from Menu page and short press OK button on it. The transition to Levels page will be made. Levels page shows bargraph representation of different parameters, measured by DB4004. The parameters are shown in groups by four. Each bargraph displays averaged momentary value in highlighted color number, minimum and maximum peak values.
  • Page 42 65 Aleksandar Stamboliyski Str., 8000 Bourgas, Bulgaria Tel: +359 56 820027, Fax: +359 56 836700 E-mail: office@devabroadcast.com ,Web: www.devabroadcast.com Level of multipath reception in percent. The multipath detector measures amplitude fluctuations of the signal. An FM signal is broadcast with a fixed level. Therefore level fluctuations indicate degraded signal quality.
  • Page 43 65 Aleksandar Stamboliyski Str., 8000 Bourgas, Bulgaria Tel: +359 56 820027, Fax: +359 56 836700 E-mail: office@devabroadcast.com ,Web: www.devabroadcast.com Group 3. This group shows Audio related levels Group 4. This group shows reception quality related levels Ultrasonic Noise bargraph (lower is better). To give an indication about the Ultrasonic Noise the amplitude of the high frequency content of the MPX signal is measured.
  • Page 44 65 Aleksandar Stamboliyski Str., 8000 Bourgas, Bulgaria Tel: +359 56 820027, Fax: +359 56 836700 E-mail: office@devabroadcast.com ,Web: www.devabroadcast.com High Cut bargraph. Most of the effect of disturbances is present in the higher audio frequencies. Therefore, a means of reducing the effect of disturbances is to filter the higher frequencies.

  • Page 45: Rds Decoder Page

    65 Aleksandar Stamboliyski Str., 8000 Bourgas, Bulgaria Tel: +359 56 820027, Fax: +359 56 836700 E-mail: office@devabroadcast.com ,Web: www.devabroadcast.com RDS decoder page Short press SB3 from Menu page. The transition to RDS decoder page will be made. RDS page main view RDS AF list view - 45 -...
  • Page 46 65 Aleksandar Stamboliyski Str., 8000 Bourgas, Bulgaria Tel: +359 56 820027, Fax: +359 56 836700 E-mail: office@devabroadcast.com ,Web: www.devabroadcast.com RDS Statistics view RDS Group Sequence view RDS Raw Data view Button assignments: OK – Transition to Main menu page. Left/Right – Changes current frequency. Up/Down –...

  • Page 47: Settings Page

    65 Aleksandar Stamboliyski Str., 8000 Bourgas, Bulgaria Tel: +359 56 820027, Fax: +359 56 836700 E-mail: office@devabroadcast.com ,Web: www.devabroadcast.com Settings page Select Settings icon from Menu page and short press OK button on it. The transition to Settings page will be made. The device settings are organized as hierarchical tree menu (Settings menu).
  • Page 48 Left/Right – Changes selection within parameter value in edit mode. See examples below. SB4 – Back one level or cancel menu mode. There is several parameter types available in DB4004. The way of editing depends of that type. Following is description of parameter types. Every parameter has several properties, change step, unit, default value, permitted range for its value and so on.
  • Page 49 65 Aleksandar Stamboliyski Str., 8000 Bourgas, Bulgaria Tel: +359 56 820027, Fax: +359 56 836700 E-mail: office@devabroadcast.com ,Web: www.devabroadcast.com IP address (IP). Represents IPv4 address. Example: Button assignments for IP in edit mode: OK – Accept the value and exits edit mode. Up/Down –...
  • Page 50 65 Aleksandar Stamboliyski Str., 8000 Bourgas, Bulgaria Tel: +359 56 820027, Fax: +359 56 836700 E-mail: office@devabroadcast.com ,Web: www.devabroadcast.com • Up/Down – Cycles through possible values for selected (highlighted background) string character. There is certain limitation in permitted charset depending from string context. For example for phone number string only “1234567890+”...
  • Page 51 65 Aleksandar Stamboliyski Str., 8000 Bourgas, Bulgaria Tel: +359 56 820027, Fax: +359 56 836700 E-mail: office@devabroadcast.com ,Web: www.devabroadcast.com Alarm (ALARM). Alarm is special complex parameter with its own editor dialog. Each alarm parameter are composed from several sub-parameters. These are: •...
  • Page 52 65 Aleksandar Stamboliyski Str., 8000 Bourgas, Bulgaria Tel: +359 56 820027, Fax: +359 56 836700 E-mail: office@devabroadcast.com ,Web: www.devabroadcast.com Channel (CHANNEL). This is complex parameters which combines several sub-parameters together. (CHANNEL) represents the settings for one logger channel: • Name – channel name for convenience (STR). •...

  • Page 53: Web Interface

    There are two options for access to the WEB Interface of DB4004. The first one is through manual identification of the IP address of the device, and the second one is through the Network discovery option (For Windows 7 users only).

  • Page 54: Network Discovery

    ACCESS The DB4004 provides you with a protected access to the device settings. You can choose between two types of log in: 1. As an Administrator – which will give you full control over the settings (username: admin, password: pass);...

  • Page 55: Main Screen

    65 Aleksandar Stamboliyski Str., 8000 Bourgas, Bulgaria Tel: +359 56 820027, Fax: +359 56 836700 E-mail: office@devabroadcast.com ,Web: www.devabroadcast.com MAIN SCREEN The Main Screen of the WEB Interface shows all the mandatory parameters represented as LED readings. You can choose between two antenna inputs and easily select the preferred audio frequency by using the selection buttons, placed on the left part of the screen.

  • Page 56: Rds/Rbds Screen

    Alternative frequencies are also available, represented in a list. DB4004 supports the two most used ODA Applications. At your disposal are the Radio Text Plus and the Traffic Message Channel. If your Radio station has RT+ or TMC – DB4004 will display the information from those ODA Groups.

  • Page 57: Fm Graph Screen

    65 Aleksandar Stamboliyski Str., 8000 Bourgas, Bulgaria Tel: +359 56 820027, Fax: +359 56 836700 E-mail: office@devabroadcast.com ,Web: www.devabroadcast.com FM GRAPH SCREEN This screen represents all mandatory signals over the time span of 1 minute. All parameters have own color representation and measurement units, visible below the graph. According to your needs, the signals listed on the right part of the dialog window, can be visible or hidden.

  • Page 58: Mpx Screen

    65 Aleksandar Stamboliyski Str., 8000 Bourgas, Bulgaria Tel: +359 56 820027, Fax: +359 56 836700 E-mail: office@devabroadcast.com ,Web: www.devabroadcast.com MPX SCREEN The graphic represents the MPX Deviation overshoot (in percentage) over time. Standard overshoot is measured at 75 kHz and is indicated in the top right corner of the graphic. The graphic below represents MPX Power over the time span of 60 min.

  • Page 59: Spectrum Screen

    65 Aleksandar Stamboliyski Str., 8000 Bourgas, Bulgaria Tel: +359 56 820027, Fax: +359 56 836700 E-mail: office@devabroadcast.com ,Web: www.devabroadcast.com SPECTRUM SCREEN The spectrum analyzer tab is a very useful feature: It is an IF, MPX and Audio spectrum display. Initially it shows the IF from -250 to 250kHz, so that the readings of the currently selected source to be clearly visible.

  • Page 60: Scope Screen

    65 Aleksandar Stamboliyski Str., 8000 Bourgas, Bulgaria Tel: +359 56 820027, Fax: +359 56 836700 E-mail: office@devabroadcast.com ,Web: www.devabroadcast.com SCOPE SCREEN Scope screen represents the signals participating in the process of demodulating and stereo decoding over time. In order for the signal source to be changed, the corresponding button on the right-side of the graph should be pressed.

  • Page 61: Bandscan Screen

    65 Aleksandar Stamboliyski Str., 8000 Bourgas, Bulgaria Tel: +359 56 820027, Fax: +359 56 836700 E-mail: office@devabroadcast.com ,Web: www.devabroadcast.com BANDSCAN SCREEN This Screen evaluates FM broadcast band congestion by sweeping the tuner across the FM band, logging every carrier and generating a spectrum display of carrier level vs. frequency. The Bandscan application utilizes four different types of Bandscan, depending on the preferred signal frequency step.

  • Page 62: Status Screen

    65 Aleksandar Stamboliyski Str., 8000 Bourgas, Bulgaria Tel: +359 56 820027, Fax: +359 56 836700 E-mail: office@devabroadcast.com ,Web: www.devabroadcast.com STATUS SCREEN The status tab shows the alarm status of each parameter of the preset frequencies, along with the basic device and network status (IP address, MAC, etc.). The Channel parameters (RF, MPX, Pilot etc.) have several conditions: - In range - green OK;...

  • Page 63: Log Screen

    65 Aleksandar Stamboliyski Str., 8000 Bourgas, Bulgaria Tel: +359 56 820027, Fax: +359 56 836700 E-mail: office@devabroadcast.com ,Web: www.devabroadcast.com LOG SCREEN Here are listed all the Device System Events. The local measurements and logs are saved in the internal device memory. All log files can be downloaded via the built-in FTP server. - 63 -...

  • Page 64: General Settings Screen

    As a User – that will allow you to just monitor the device and to choose different stations, while the Settings bar remains locked. In order for the security of DB4004 to be enhanced, a new username and password could be set from the “Security” section.

  • Page 65: Tuner Settings Screen

    The Tuner Section gives full control over Tuner and Audio Processing and the two RF Antenna Inputs settings. These settings provide all the needed adjustments to the algorithm which DB4004 demodulates and manipulates the signal. Average and Peak Adjustments section is used for setting of the indicators response times.

  • Page 66: Alarms Settings Screen

    65 Aleksandar Stamboliyski Str., 8000 Bourgas, Bulgaria Tel: +359 56 820027, Fax: +359 56 836700 E-mail: office@devabroadcast.com ,Web: www.devabroadcast.com ALARMS SETTINGS SCREEN Alarm notifications - E-mail – global enable/disable E-mail notification; - SMS – global enable/disable SMS notification; - SNMP – global enable/disable SNMP notification; - GPO –...

  • Page 67: Logger Settings Screen

    Trough this section of the WEB Interface, up to fifty radio frequencies could be chosen and monitored, by applying the needed settings. When the desired adjustments are being made, DB4004 will monitor all of the selected frequencies at regular intervals. All of the collected information is accessible through the built-in FTP Server.

  • Page 68: Logger Channel Settings

    65 Aleksandar Stamboliyski Str., 8000 Bourgas, Bulgaria Tel: +359 56 820027, Fax: +359 56 836700 E-mail: office@devabroadcast.com ,Web: www.devabroadcast.com LOGGER CHANNEL SETTINGS Every Channel consists of a group of settings (explained in details below), which are used when monitoring and alerting. Each preset has its own page where it is being configured. Measurement windows can be set for each of the alarms, including trigger and alarm release times.

  • Page 69: Communication Settings Screen

    DHCP client to be activated, the function should be enabled. When the DHCP client is activated, all assigned values will be shown in the relevant fields on the “Status Screen”. If due to any reason, the DHCP procedure cannot be completed, DB4004 will use AutoIP and will generate an IP Address.

  • Page 70: Snmp Agent

    Once all needed settings are applied, use the Test button to generate a test notification, which upon success will be received by the SNMP Manager. Press the ‘Download’ button to download the latest available DB4004 SNMP MIB file. NOTE: The MIB file may vary from one firmware revision to another. Downloading this file from the device, guarantees that you have the proper MIB file.

  • Page 71: Outputs Settings Screen

    65 Aleksandar Stamboliyski Str., 8000 Bourgas, Bulgaria Tel: +359 56 820027, Fax: +359 56 836700 E-mail: office@devabroadcast.com ,Web: www.devabroadcast.com OUTPUTS SETTINGS SCREEN The general purpose outputs settings are applied through this page. The Audio/MPX output section allows the setting of the Audio and MPX Outputs, according to your needs. Function, type and pulse time for each of the GPOs could be set individually.

  • Page 72: Other Settings Screen

    To restore DB4004 to its Factory Defaults you should first select the desired option and then press the relevant button. A new window will appear – confirm that you want to restore the factory defaults and wait for the process to be completed.

  • Page 73: Appendix 1: Alarm Triggers

    65 Aleksandar Stamboliyski Str., 8000 Bourgas, Bulgaria Tel: +359 56 820027, Fax: +359 56 836700 E-mail: office@devabroadcast.com ,Web: www.devabroadcast.com APPENDIX 1: Alarm Triggers ALARM TRIGGERS After collecting all the data, the DSP-based core compares the values measured with the predefined by the user threshold levels, for all the alarms monitored. In case that a parameter is beyond limits, the device will initiate the sending of an alarm notification via the selected communication path.
  • Page 74 65 Aleksandar Stamboliyski Str., 8000 Bourgas, Bulgaria Tel: +359 56 820027, Fax: +359 56 836700 E-mail: office@devabroadcast.com ,Web: www.devabroadcast.com When an observation event takes place, the Alarm Trigger’s State will refresh, if necessary. Should we consider an instance when the Alarm Trigger is in Idle state, having in mind that an alarm is not triggered immediately when a parameter level passes beyond threshold: If the parameter level becomes stable, within Thresholds, and the Alarm Trigger Time is not elapsed, then the Alarm Trigger remains in Idle state.

  • Page 75: Alarm Notifications

    Alias, date and time of Alarm triggered, channel number, frequency and information about the Alarm activation/deactivation. The basic signal parameters are also included. Example for E-mal Notification: Date: 04 Nov 2013, 07:31:11 DB4004 reports ACTIVE alarm on 91.10MHz – Power FM (CH1) Alarm: RDS > 6.5kHz Signal parameters: RF: 51.5dBuV MPX Total: 89.9kHz...

  • Page 76: Appendix 2: List Of Db4004 Settings

    65 Aleksandar Stamboliyski Str., 8000 Bourgas, Bulgaria Tel: +359 56 820027, Fax: +359 56 836700 E-mail: office@devabroadcast.com ,Web: www.devabroadcast.com APPENDIX 2: List of DB4004 settings Parameter Name Type Range Default value [, Unit] Description Tuner Tuner related submenu Frequency 87 … 108, step 0.05...
  • Page 77 65 Aleksandar Stamboliyski Str., 8000 Bourgas, Bulgaria Tel: +359 56 820027, Fax: +359 56 836700 E-mail: office@devabroadcast.com ,Web: www.devabroadcast.com Parameter Name Type Range Default value [, Unit] Description ENUM Enable, Disable Enable FTP protocol Email ENUM Enable, Disable Enable SMTP protocol (email) SNTP ENUM Enable, Disable...
  • Page 78 Outgoing server port Email Address 1 EMAIL (blank) First recepient email address Email Address 2 EMAIL (blank) Second recepient email address db4004@ Sender Name Sender name devamonitoring.com User Name (blank) Outgoing server user name User Password (blank) Outgoing server password...
  • Page 79 65 Aleksandar Stamboliyski Str., 8000 Bourgas, Bulgaria Tel: +359 56 820027, Fax: +359 56 836700 E-mail: office@devabroadcast.com ,Web: www.devabroadcast.com Parameter Name Type Range Default value [, Unit] Description Number 1 (blank) First allowed phone number Number 2 (blank) Second allowed phone number Number 3 (blank) Third allowed phone number...
  • Page 80 65 Aleksandar Stamboliyski Str., 8000 Bourgas, Bulgaria Tel: +359 56 820027, Fax: +359 56 836700 E-mail: office@devabroadcast.com ,Web: www.devabroadcast.com Parameter Name Type Range Default value [, Unit] Description GPO3 Pulse Time TIMER 1 … 120, step 1 2, sec GPO pin 3 pulse duration GPO4 Type ENUM Level High, Level Low, Pulse High, Pulse Low Level High...
  • Page 81 GSM audio level Digital Out ENUM Enable, Disable Disable Digital audio output control Device Device related submenu Alias DB4004 Alias name for device Date / Time Date / Time settings Date DATE 01-Jan-2012 … 31-Dec-2100 dd-mm-yyyy Manual set Date Time TIME 0:0:0 …...
  • Page 82 65 Aleksandar Stamboliyski Str., 8000 Bourgas, Bulgaria Tel: +359 56 820027, Fax: +359 56 836700 E-mail: office@devabroadcast.com ,Web: www.devabroadcast.com NOTE 1: Default values for complex alarm parameters are as follows: Parameter Name Type Range Default value [,Unit] Description For all Alarms Trigger TIMER 1 …...
  • Page 83 65 Aleksandar Stamboliyski Str., 8000 Bourgas, Bulgaria Tel: +359 56 820027, Fax: +359 56 836700 E-mail: office@devabroadcast.com ,Web: www.devabroadcast.com Parameter Name Type Range Default value [,Unit] Description Temperature Alarm Low threshold 0 … (High threshold) 20, °C Low alarm trigger level High threshold (Low threshold) …...

  • Page 84: Warranty Terms And Conditions

    A. Equipment will not be accepted for Warranty or other repair without a Return Authorization (RA) number issued by DEVA Broadcast Ltd. prior to its return. An RA number may be obtained by calling the factory. The number should be prominently marked on the outside of the shipping carton.

  • Page 85: Product Registration Card

    Your signature* *Signing this warranty registration form you are stating that all the information provided to DEVA Broadcast Ltd. are truth and correct. DEVA Broadcast Ltd. declines any responsibility for the provided information that could result in an immediate loss of warranty for the above specified product(s).
