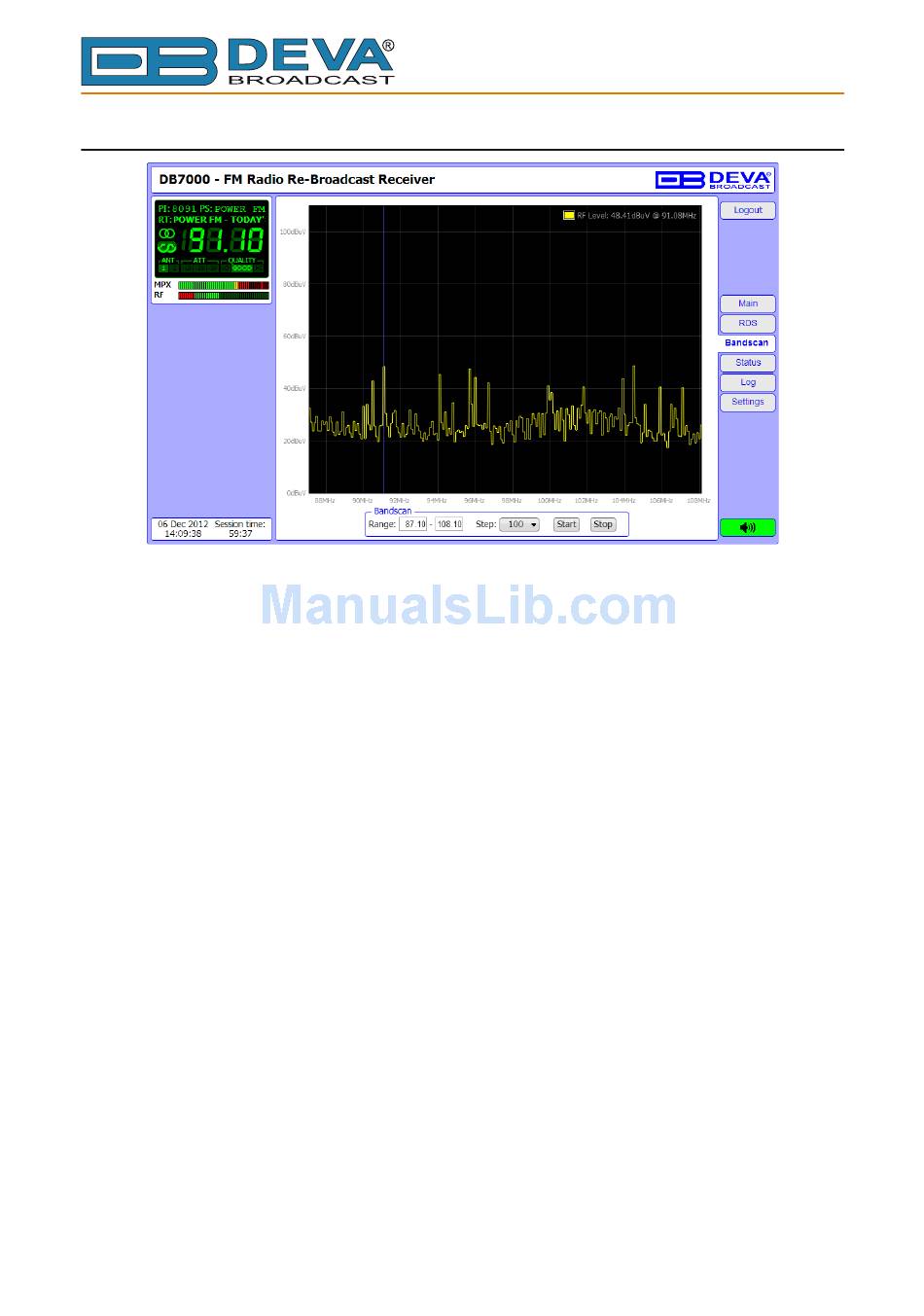

BANDSCAN SCREEN

This Screen evaluates FM broadcast band congestion by sweeping the tuner across the FM
band, logging every carrier and generating a spectrum display of carrier level vs. frequency.
The Bandscan application utilizes four different types of Bandscan, depending on the preferred
signal frequency step. The bandscanning mode could be customized by setting low and high
frequency limits of the scan. Once you have set the frequency step and low/high frequencies, the
start button should be pressed in order for the Bandscan process to be initiated. The current scan
could be stopped at any time by pressing the Stop button.
To evaluate the RF level of the specified frequency, move the vertical marker along the horizontal
scale. The Values at the cross-point will be shown at the top right corner of the graph.
