Installing The Internal Cooling Fan - Dell poweredge t330 Owner's Manual

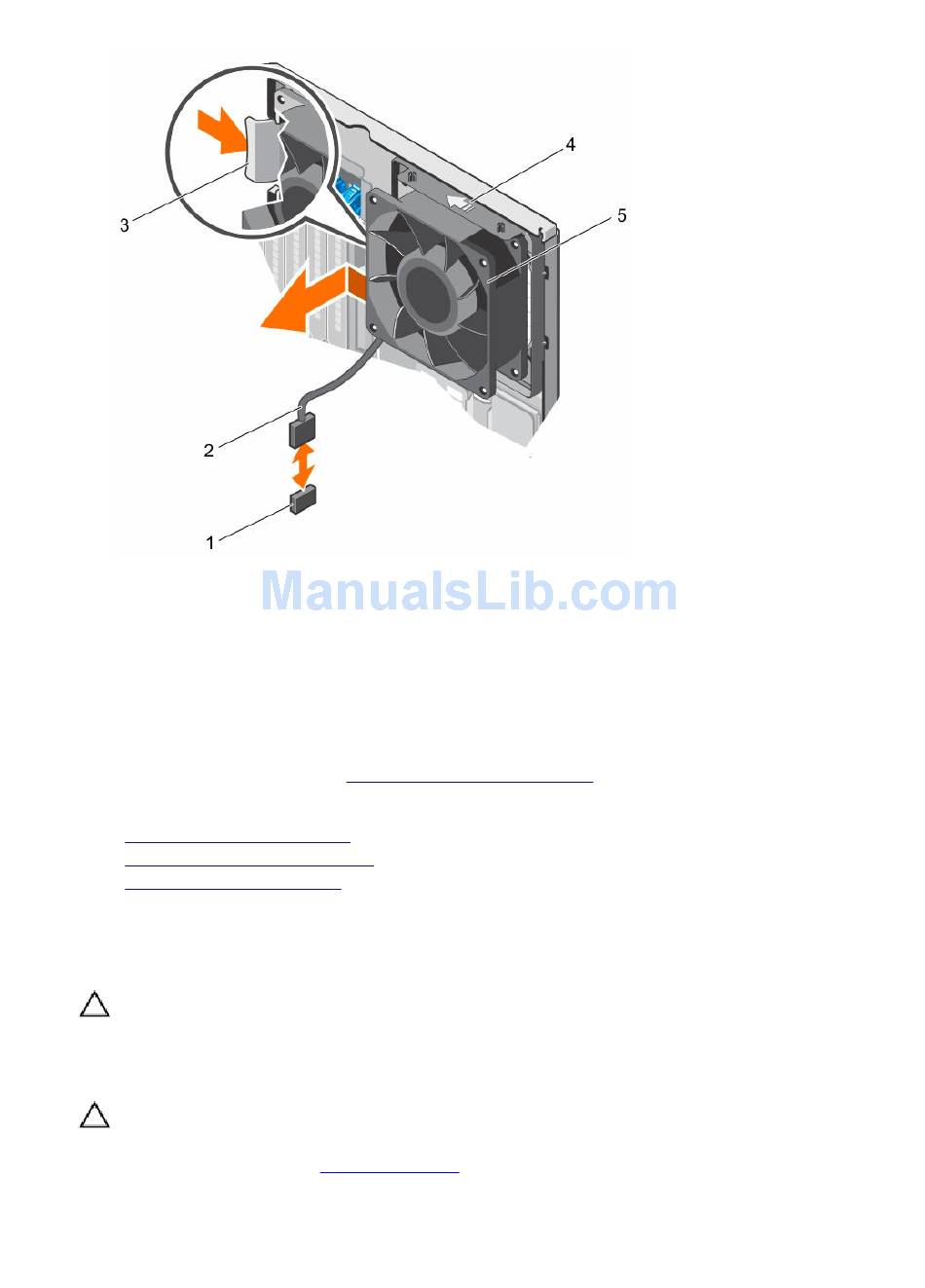

Figure 32. Removing and installing the internal cooling fan
1. fan connector on the system board
3. release tab
5. internal cooling fan
Next steps
1. Install the internal cooling fan.
2. Follow the procedure listed in
Related Tasks
Removing the cooling shroud

Installing the internal cooling fan

Installing the cooling shroud
Installing the internal cooling fan
Prerequisites
CAUTION: Many repairs may only be done by a certified service technician. You should only
perform troubleshooting and simple repairs as authorized in your product documentation, or as
directed by the online or telephone service and support team. Damage due to servicing that is
not authorized by Dell is not covered by your warranty. Read and follow the safety instructions
that came with the product.
CAUTION: Do not operate the system with the cover removed for a duration exceeding 5
minutes.
1. Ensure that you follow the
88
After working inside your
Safety instructions.
2. internal cooling fan power cable
4. arrow
system.
