Installing A 3.5-Inch Hard Drive Adapter Into The 3.5-Inch Hot Swappable Hard Drive Carrier - Dell poweredge t330 Owner's Manual

Installing a 3.5-inch hard drive adapter into the 3.5-inch hot swappable hard
drive carrier
Prerequisites
CAUTION: Many repairs may only be done by a certified service technician. You should only
perform troubleshooting and simple repairs as authorized in your product documentation, or as
directed by the online or telephone service and support team. Damage due to servicing that is
not authorized by Dell is not covered by your warranty. Read and follow the safety instructions
that came with the product.
1. Ensure that you follow the
2. Keep the Phillips #2 screwdriver ready.
3. Install the 2.5-inch hot swappable hard drive into the 3.5-inch hard drive adapter.
Steps
1. Insert the 3.5-inch hard drive adapter into the 3.5-inch hot swappable hard drive carrier with the
connector end of the hard drive toward the back of the 3.5-inch hot swappable hard drive carrier.
2. Align the screw holes on the 3.5-inch hard drive adapter and the 3.5-inch hard drive with the holes
on the 3.5-inch hot swappable hard drive carrier.
3. Install the screws to secure the 3.5-inch hard drive adapter to the 3.5-inch hot swappable hard drive
carrier.

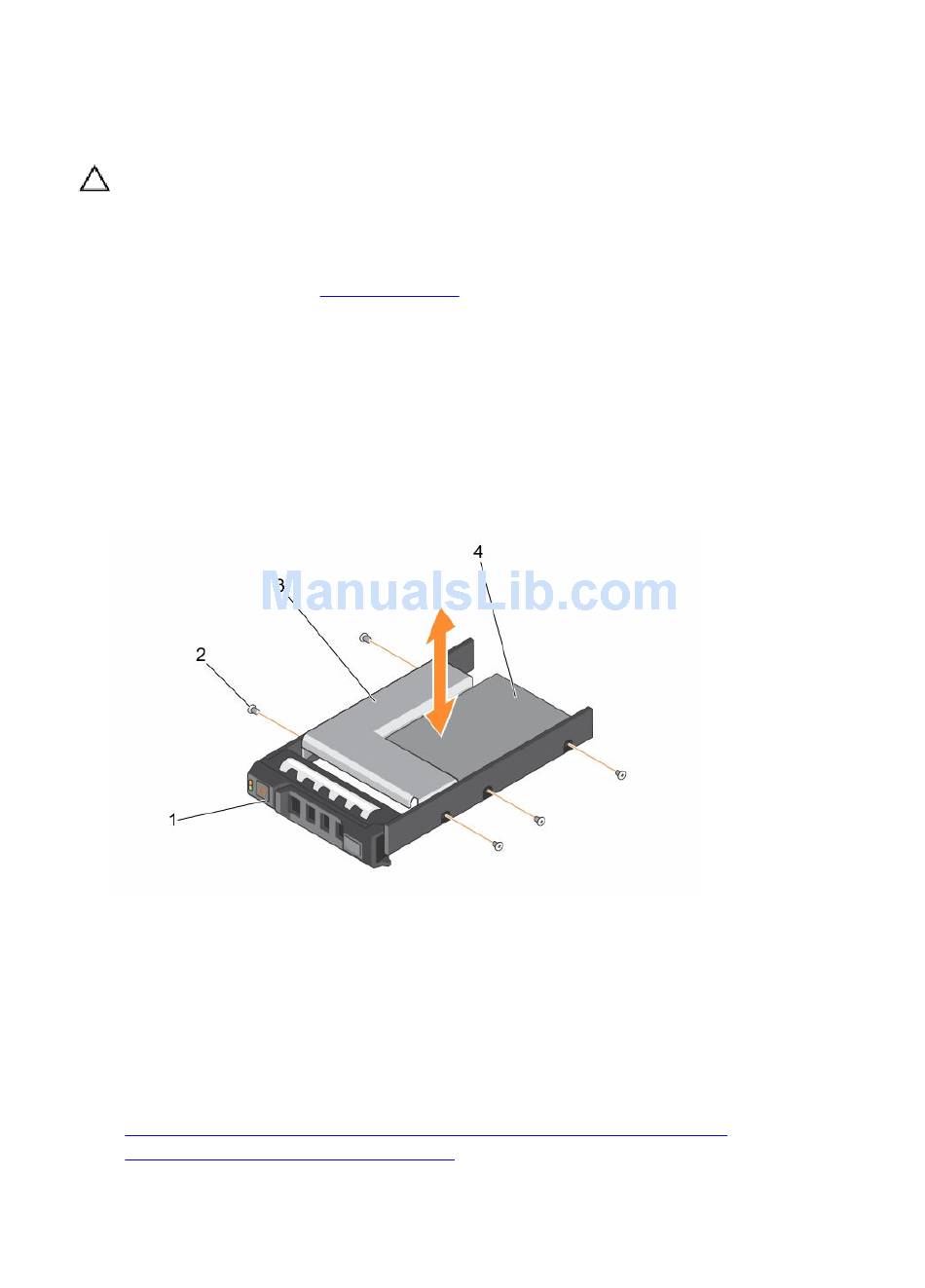

Figure 23. Removing and installing a 3.5-inch hard drive adapter into a 3.5-inch hot swappable hard
drive carrier
1. 3.5-inch hot swappable hard drive carrier
3. 3.5-inch hard drive adapter
Next steps
Install the 3.5-inch hot swappable hard drive carrier into the system.
Related Tasks
Installing a 2.5-inch hot swappable hard drive into a 3.5-inch hard drive adapter
Installing a hot swappable hard drive carrier
Safety instructions.
2. screw (5)
4. 2.5-inch hot swappable hard drive
