Item Indicator, button, or
connector
9 Optical drive or tape
drives
10 Hard drives
11 Four-slot hard drive
blank
Front panel features and indicators — rack mode

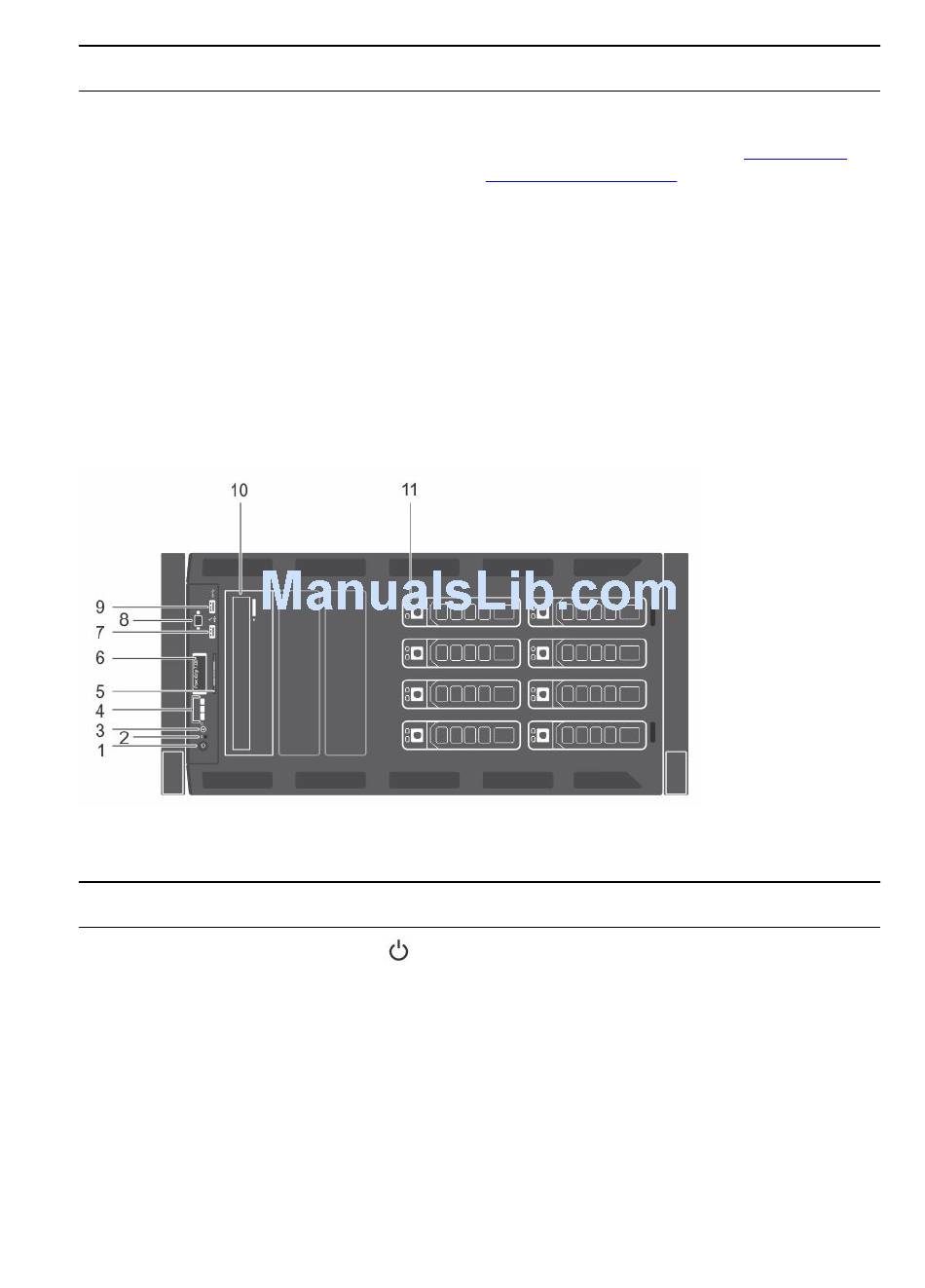

Figure 3. Front panel features and indicators — rack mode
Table 4. Front panel features and indicators — rack mode
Item Indicator, button, or
connector
1 Power-on indicator,
power button
Icon Description
Enables you to install an optical drive or tape
drives. For more information about supported
optical drives and tape drives, see
and tape drives
Enables you to install up to four 3.5-inch (2.5-inch
with adapter) hot swappable hard drives/SSDs.
Supported on systems with an x8 hard drive
backplane configured for software RAID support.
These systems support only four hard drives, and
the remaining hard drive slots are preinstalled with
the four-slot hard drive blank, and cannot be
upgraded for additional storage.
Icon Description
Enables you to know the power status of the
system. The power-on indicator glows when the
system power is on. The power button controls the
power supply output to the system.
Optical drives
(optional).
15
