Steps
1. Open the expansion card latch by pulling the latch up.
2. Hold the expansion card by its edges, and pull the card until the card edge connector disengages
from the expansion card connector.
3. Install the filler bracket by performing the following steps:
a. Align the tab on the filler bracket with the expansion card slot.
b. Press the expansion card latch until the filler bracket locks into place.
NOTE: Filler brackets must be installed over empty expansion card slots to maintain FCC
certification of the system. The brackets also keep dust and dirt out of the system and aid in
proper cooling and airflow inside the system.

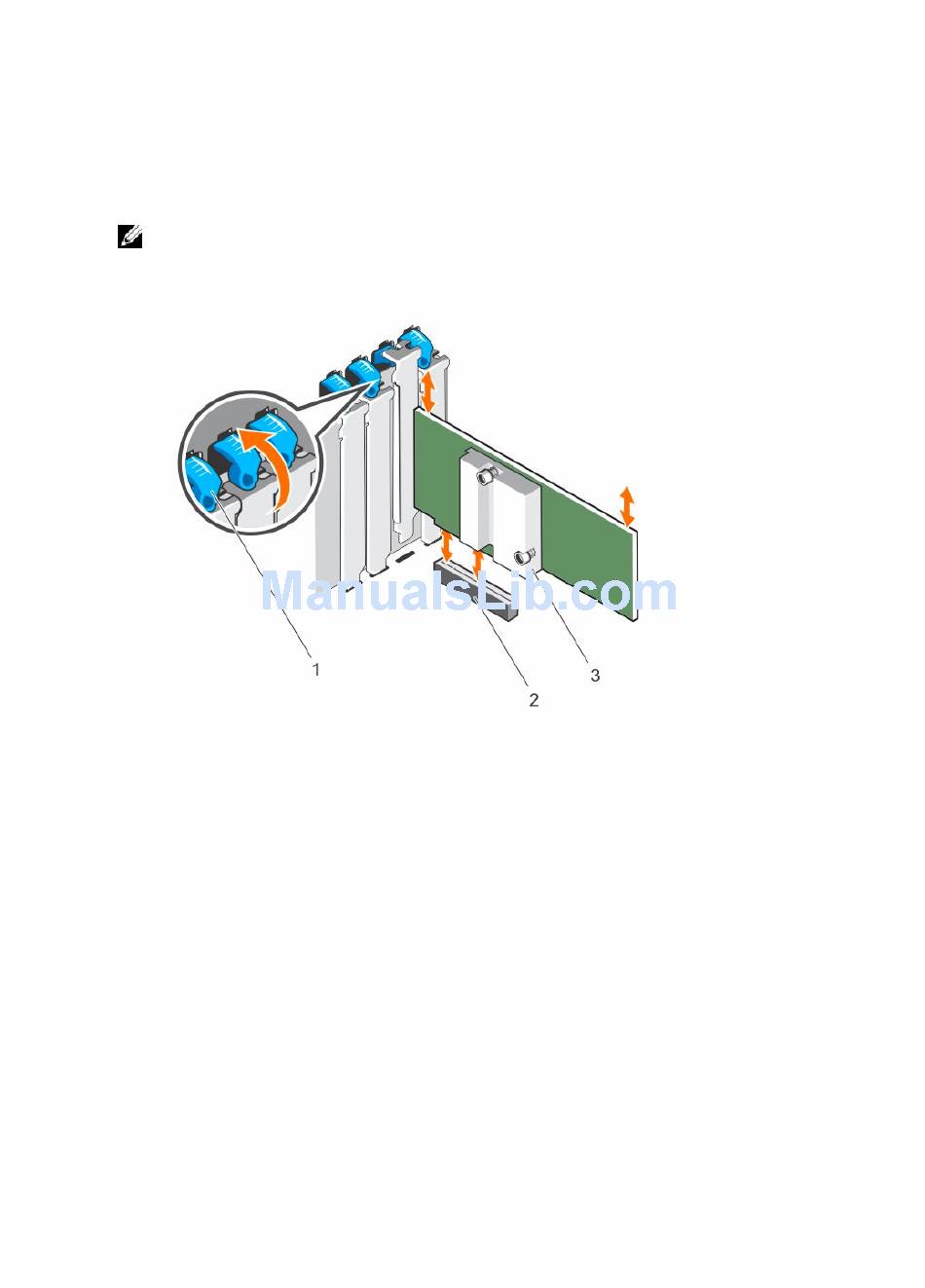

Figure 34. Removing and installing an expansion card
1. expansion card latch
3. expansion card
92
2. expansion card connector
