Click Reset; the device resets, utilizing the new cmp and ini file you loaded up to now
as well as utilizing the other configuration files.
Click Back; the 'Load a cmp file' screen is reverted to; see Figure 25.
Click Next; the 'Load a CPT File' screen opens, see Figure 28; Loading a new CPT
file or any other auxiliary file listed in the Wizard is optional.

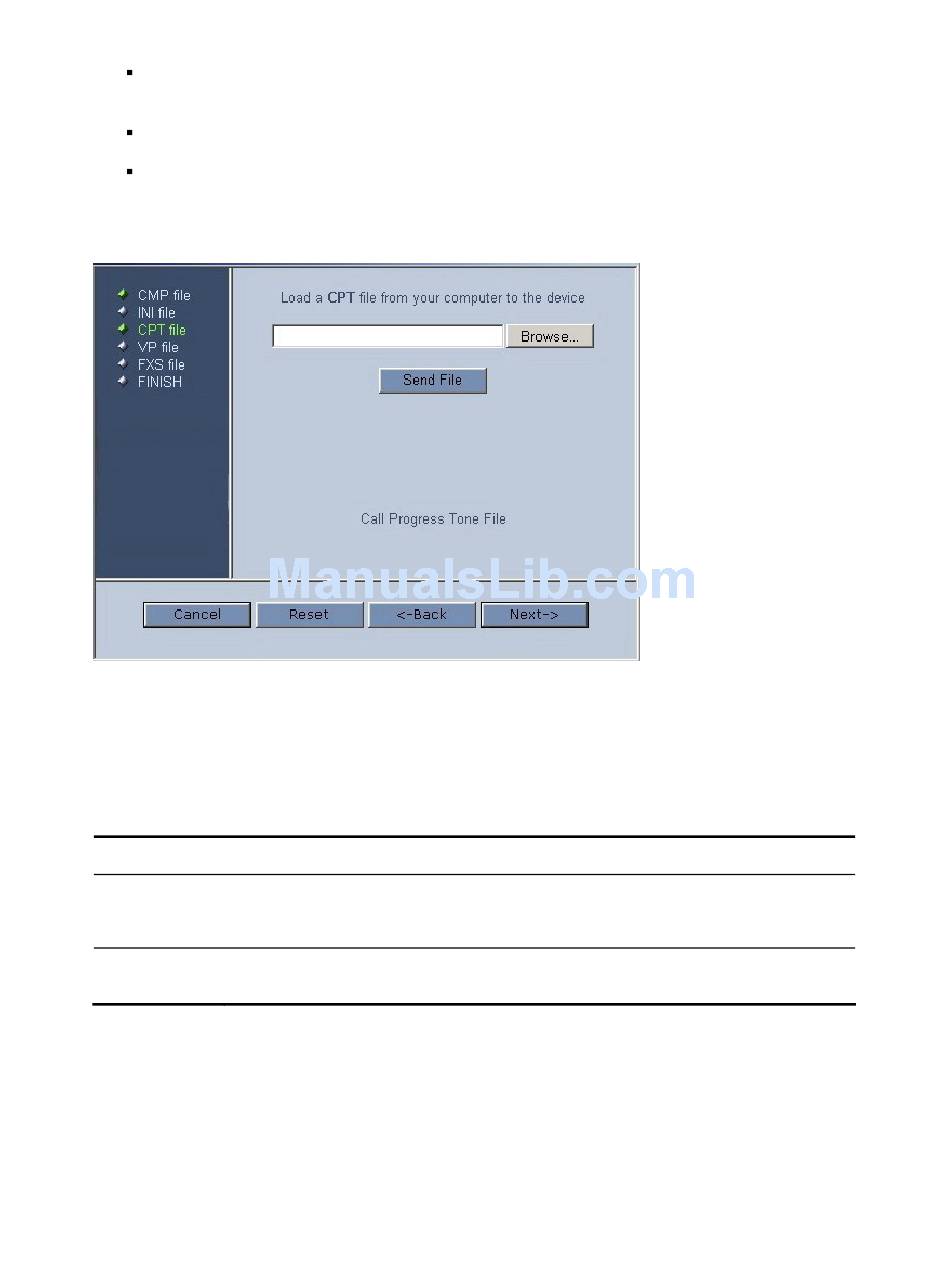

Load a CPT File Screen
Figure 28
Follow the same procedure you followed when loading the ini file (see Step 6). The same
7
procedure applies to the 'Load a VP file' (not applicable to the VCX V7111 gateway)
screen and 'Load a coefficient file' screen.
In the 'FINISH' screen (see Figure 29 on page 54), the Next button is disabled. Complete
8
the upgrade process by clicking Reset or Cancel.
Button Result
Reset The device 'burns' the newly loaded files to flash memory. The 'Burning files to flash
memory' screen appears. Wait for the 'burn' to finish. When it finishes, the 'End Process'
screen appears displaying the burned configuration files (see Figure 30).
The device resets, utilizing the files previously stored in flash memory. (Note that these
Cancel
are NOT the files you loaded in the previous Wizard steps).
