Use the screws found in the device's package to attach the long bracket to the side of the
7
device.
Position the device in the rack and line up the bracket holes with the rack frame holes.
8
Use four standard rack screws to attach the device to the rack. These screws are not
9
provided with the device.

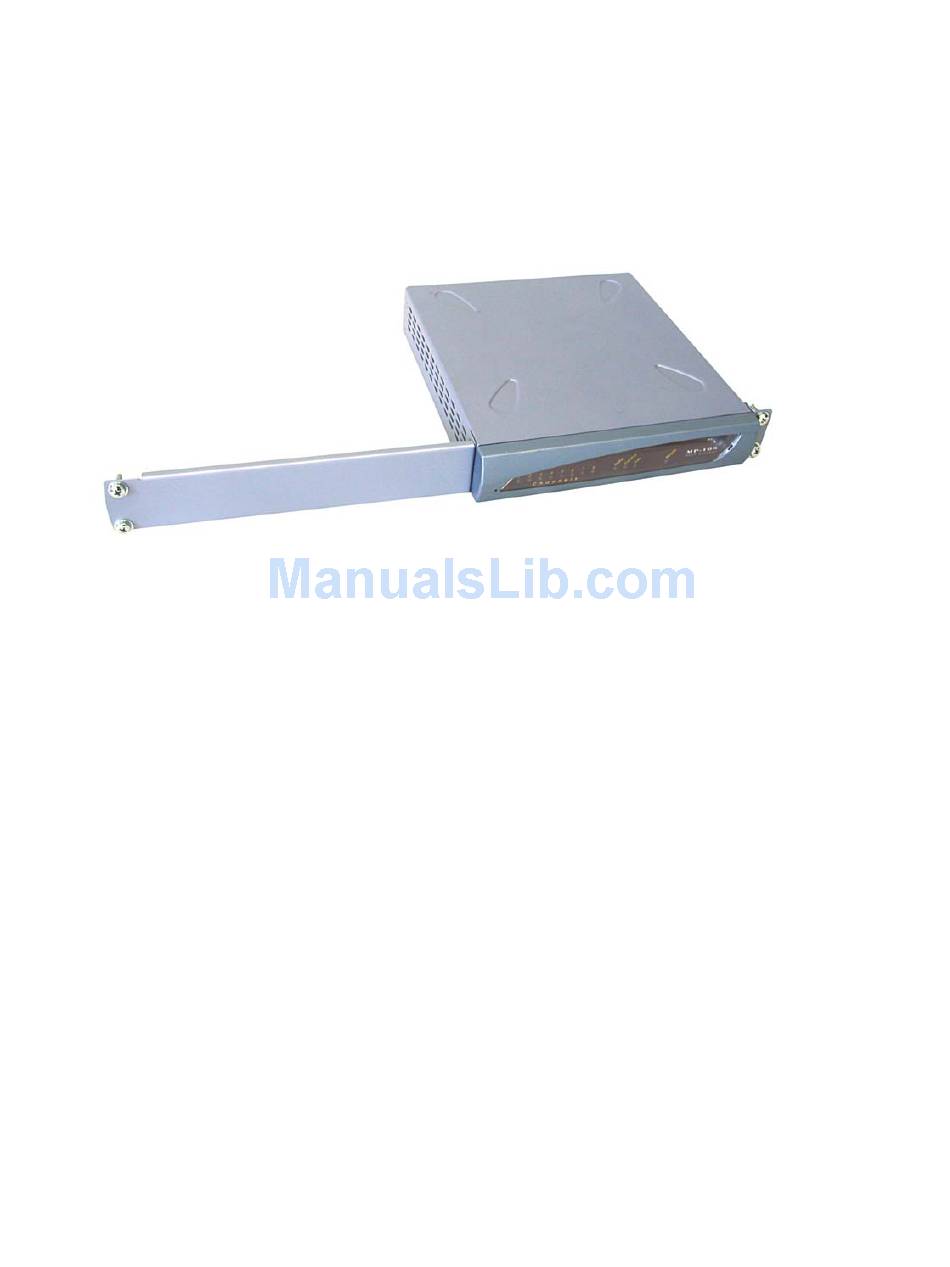

VCX V7111 8FXS with Brackets for Rack Installation
Figure 3

Installing the 24 Port VCX V7111 in a 19-Inch Rack

The VCX V7111 24FXS is installed into a standard 19-inch rack by the addition of two short
(equal-length) supplied brackets. The VCX V7111 24FXS with brackets for rack installation is
shown in Figure 4 on page
To install the VCX V7111 24FXS in a 19-inch rack, follow these steps:
Remove the two screws on one side of the device nearest the front panel.
1
Insert the peg on one of the brackets into the third air vent down on the column of air
2
vents nearest the front panel.
Swivel the bracket until the holes in the bracket line up with the two empty screw holes
3
on the device.
Use the screws found in the devices' package to attach the bracket to the side of the
4
device.
Repeat steps 1 to 4 to attach the second bracket to the other side of the device.
5
Position the device in the rack and line up the bracket holes with the rack frame holes.
6
Use four standard rack screws to attach the device to the rack. These screws are not
7
provided with the device.
16
17.
3Com VCX V7111 Fast Track Installation Guide
