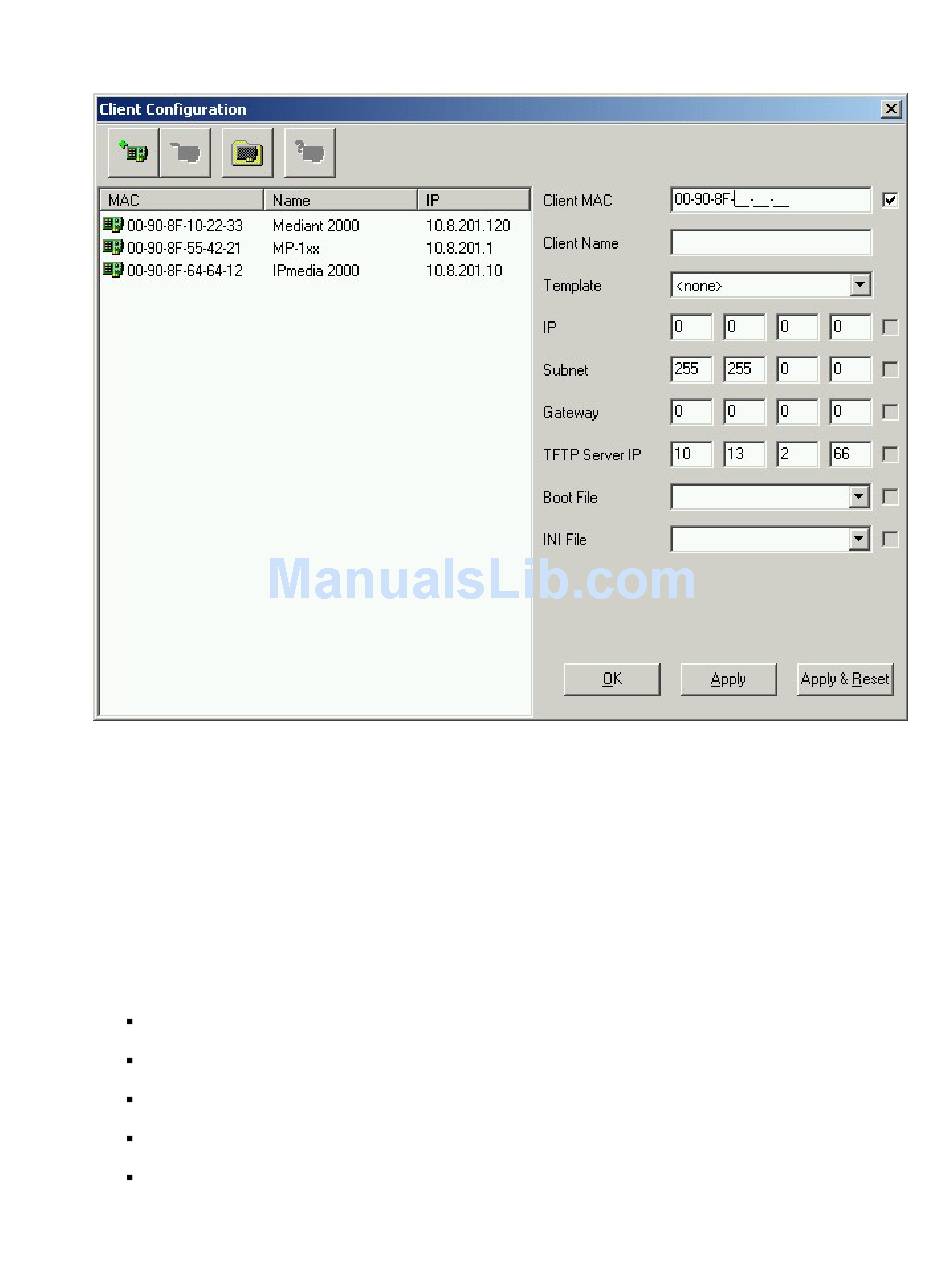

Client Configuration Screen with Blank Parameters
Figure 15
Assigning the IP Address via the RS-232 Port
To assign an IP address via the RS-232, follow these steps
Connect the VCX V7111 RS-232 port to either COM1 or COM2 RS-232 communication
1
port on your PC with a standard RS-232 straight cable (not a cross-over cable) with DB-9
connectors.
Use a serial communication software (e.g., HyperTerminal
2
V7111. Set your serial communication software to the following communications port
settings:
Baud Rate:
Data bits:
Parity:
Stop bits:
Flow control:
30
115,200 bps
8
None
1
Hardware
3Com VCX V7111 Fast Track Installation Guide
TM
) to connect to the VCX
