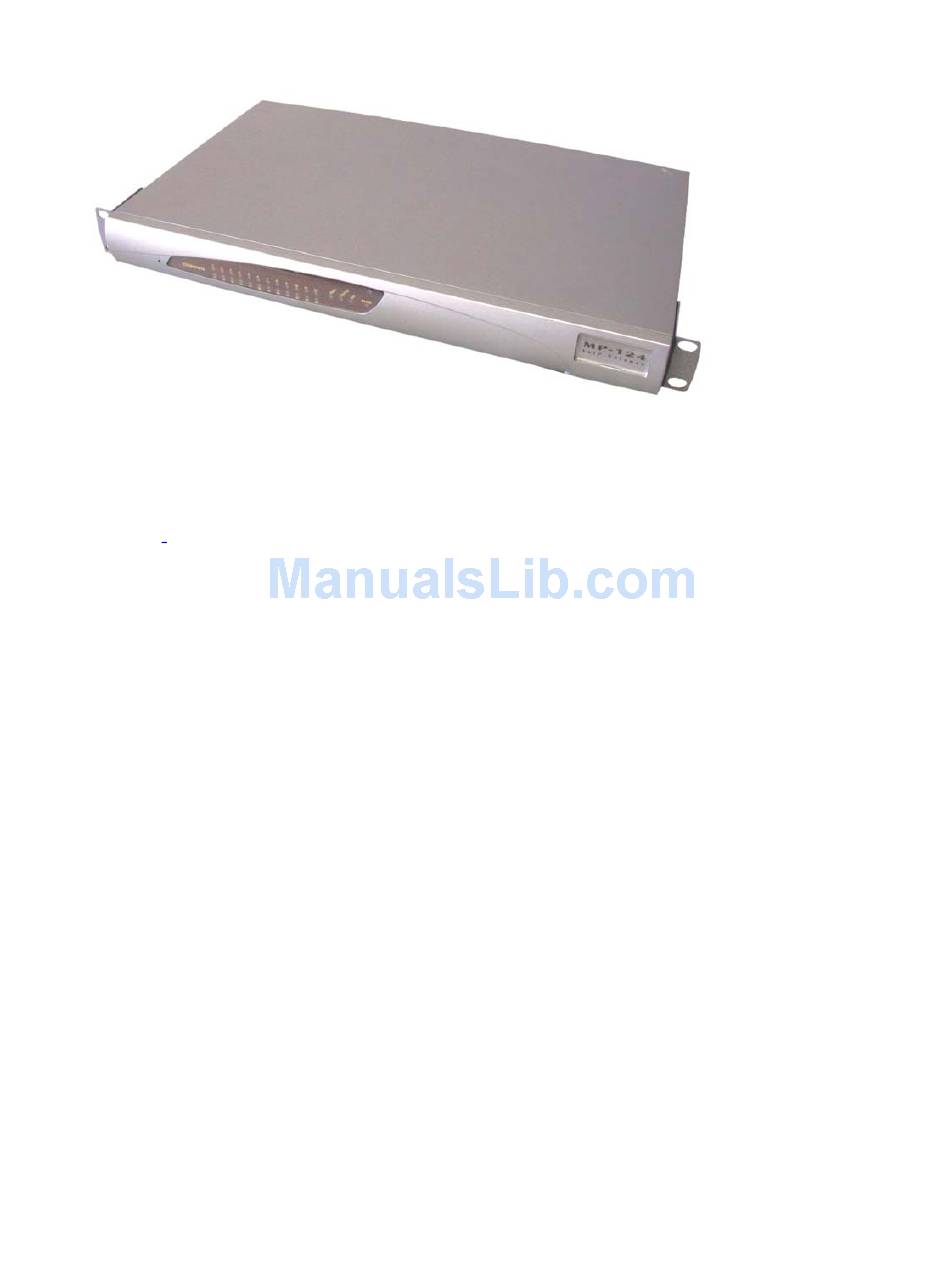

VCX V7111 24FXS with Brackets for Rack Installation
Figure 4

Mounting the 2, 4, or 8 Port VCX V7111 on a Wall

The 2, 4, or 8 port VCX V7111 is mounted on a wall by the addition of two short (equal-
length) supplied brackets. The VCX V7111 2FXS with brackets for wall mount is shown in
Figure 5 on page 18.
To mount a 2, 4, or 8 port VCX V7111 on a wall, follow these steps:
Remove the screw on the side of the device that is nearest the bottom and the front
1
panel.
Insert the peg on the bracket into the third air vent down on the column of air vents
2
nearest the front panel.
Swivel the bracket so that the side of the bracket is aligned with the base of the device
3
and the hole in the bracket line up with the empty screw hole.
Attach the bracket using one of the screws provided in the device package.
4
Repeat steps 1 to 4 to attach the second bracket to the other side of the device.
5
Position the device on the wall with the base of the device next to the wall.
6
Use four screws to attach the device to the wall. These screws are not provided with the
7
device.
3Com VCX V7111 Fast Track Installation Guide 17
