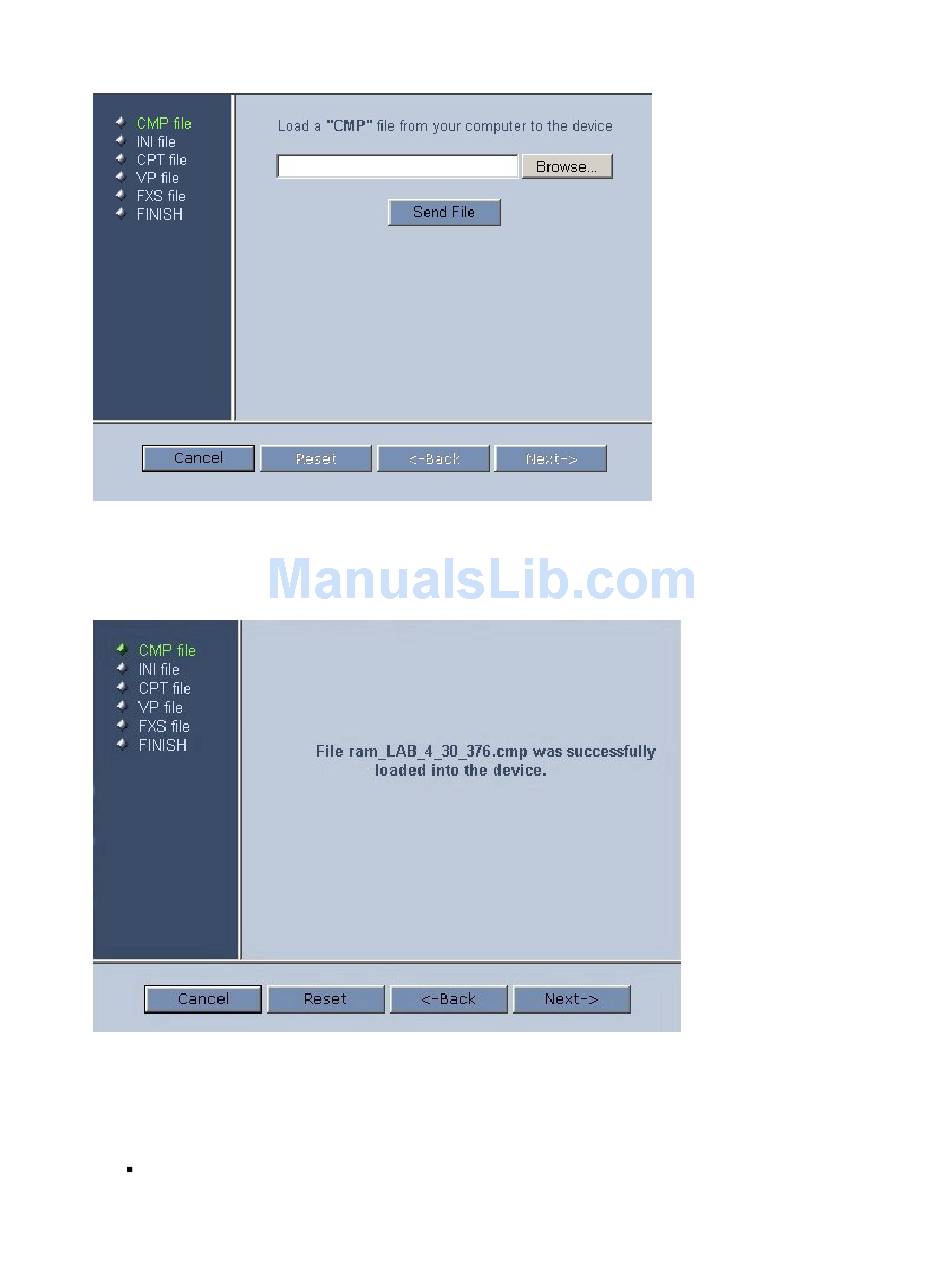

Load a cmp File Screen
Figure 25
Click the Browse button, navigate to the cmp file and click the button Send File; the cmp
4
file is loaded to the device and you're notified as to a successful loading (Figure 26).
cmp File Successfully Loaded into the Device Notification
Figure 26
Note that the four action buttons (Cancel, Reset, Back, and Next) are now activated
5
(following cmp file loading).
You can now choose to either:
Click Reset; the device resets, utilizing the new cmp you loaded and utilizing the
current configuration files.
