Tensioning the X & Y Motor Belts (Belt Table)
X Motor Belt
Required Tools
9
• ⁄ " allen wrench
64
• Belt tension tool
1. Power down the system using the power-down switch. Once the system is powered down,
switch the circuit breaker to the off position.
2. Unplug the AC power cord, RJ-45 network cable and UPS cable (if used) from the rear of
the printer.
3. Remove the rear door. See
4. Remove the side panels. See
5. Locate the X motor. See
9
6. Using a ⁄ " allen wrench, remove the 3 X motor mounting screws. See
64
"Removing the Rear Door:" on page 5-9.
"Side Panels" on page 5-11.
Figure 33.

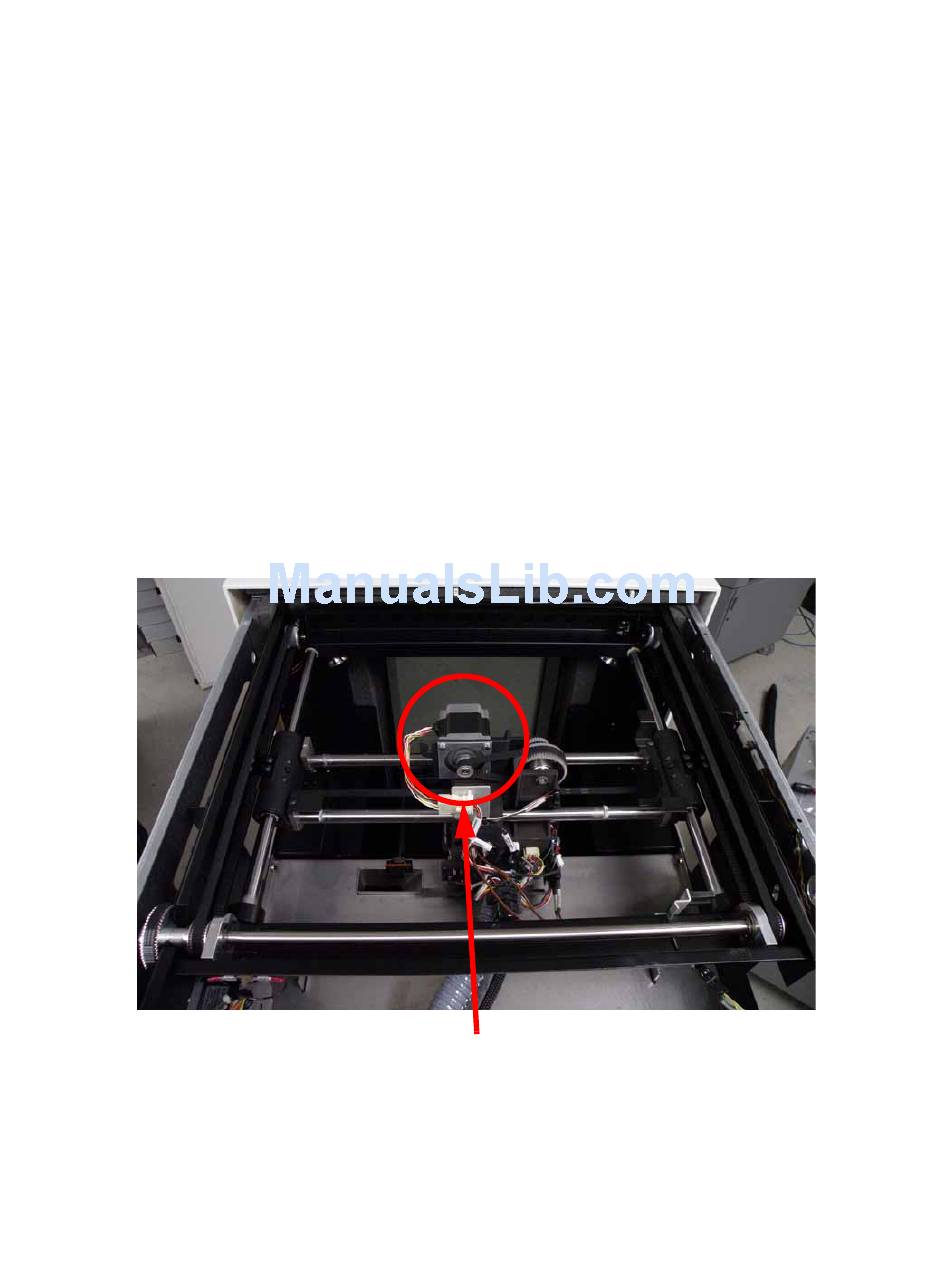

Figure 33: X motor location
X motor
Figure 34.
6-31
