Installing The 5/12 Vdc Power Supply - Stratasys Dimension 768/Elite Service Manual

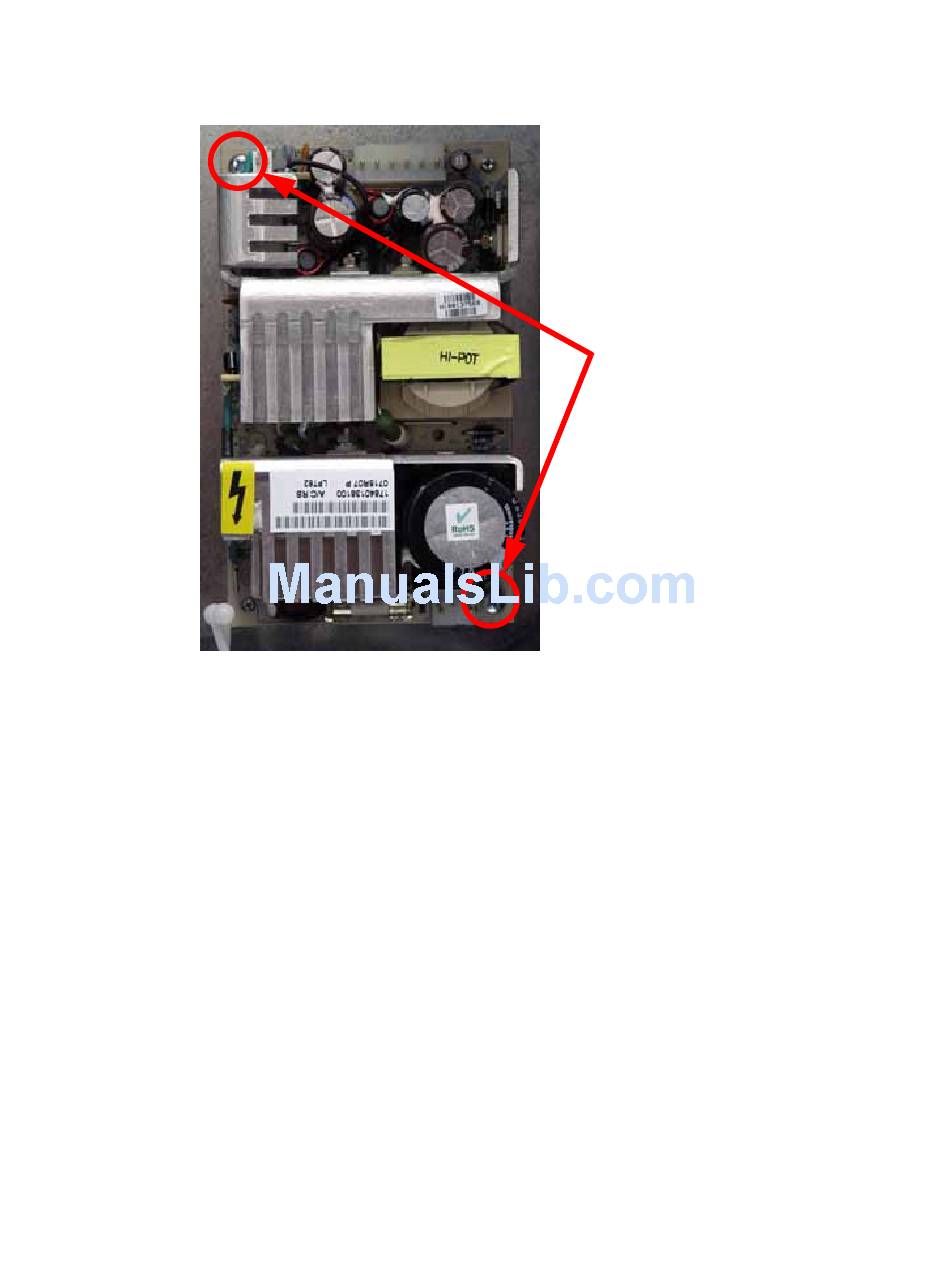

Figure 67: 5/12 VDC power supply mounting screw locations
2 mounting screws

Installing the 5/12 VDC Power Supply:

1. Wear a grounding wrist strap and connect the end to the electronics bay pan.
2. Align the 5/12 VDC power supply with the mounting holes and use a phillips screwdriver
to reinstall the 2 mounting screws.
3. Reconnect the G2 ground wire.
4. Reconnect the power input cable.
5. Reconnect the J4 cable.
6. Reinstall the rear door. See "Installing the Rear Door:" on page 5-10.
7. Reconnect the AC power cord, RJ-45 network cable and UPS cable (if used).
8. Power up the printer.
9. Run a small test part and monitor system operation during build.
5-68
