Stratasys Dimension 768/Elite Service Manual page 532

5
8. Using a ⁄ " nut driver or standard screwdriver, remove the 6 Z stage base plate mounting
16
screws. See Figure 499.

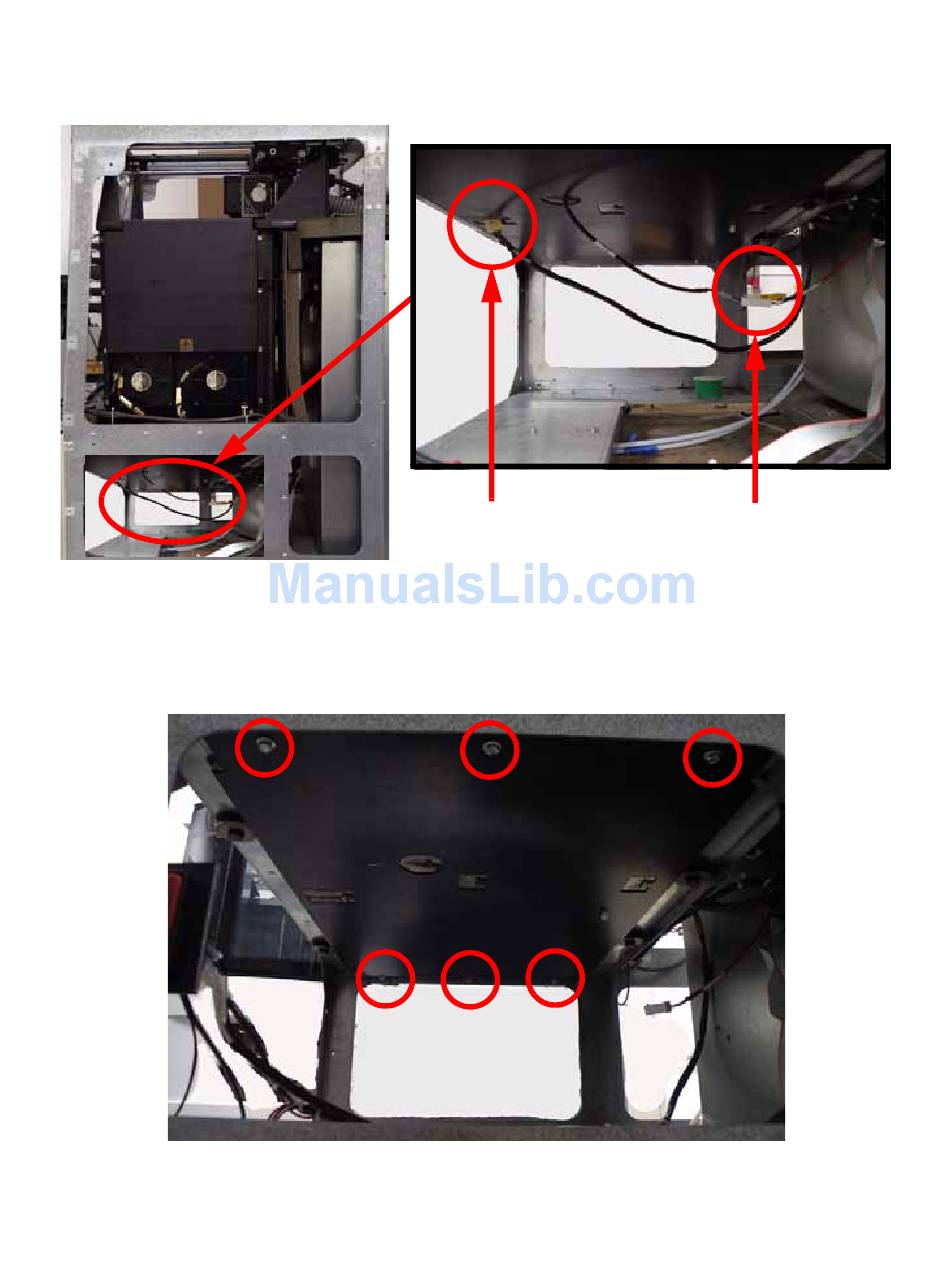

Figure 499: Z stage base plate mounting screw locations
9. Lower the Z stage base plate and remove the Z jam sensor cable and Z motor cable through
the slots. See Figure 500.
Figure 498: Z jam sensor connector location
Z motor connector
Z jam sensor connector
5-395
