Stratasys Dimension 768/Elite Service Manual page 453

Shaft retaining ring
1
8. Using a ⁄ " allen wrench, remove the 4 left side Y belt clamp mounting screws and remove
8
the belt clamp. See
Figure 387: Left side Y belt clamp mounting screw locations
1
9. Using a ⁄ " nut driver or box wrench, remove the left side Y belt tension nut and washer.
2
See Figure 388.
5-316

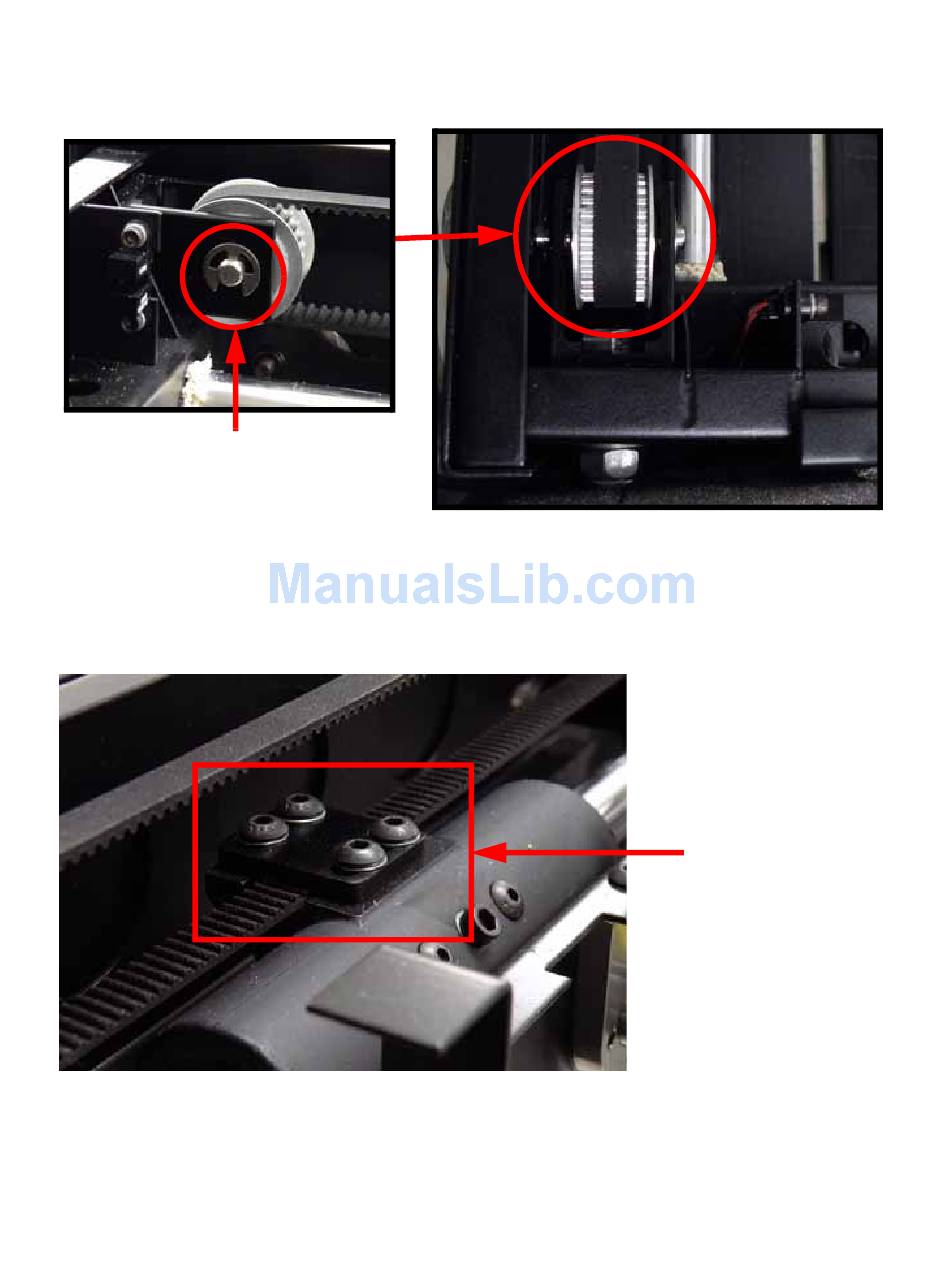

Figure 386: Shaft retaining ring location
Figure 387.
Right side Y belt
clamp
