Stratasys Dimension 768/Elite Service Manual page 538

f. Align the head bracket and dial indicator with the head fan mounting holes and use a
1
⁄ " allen wrench to install the 2 mounting screws. Position the head fan behind the
8
head bracket. See

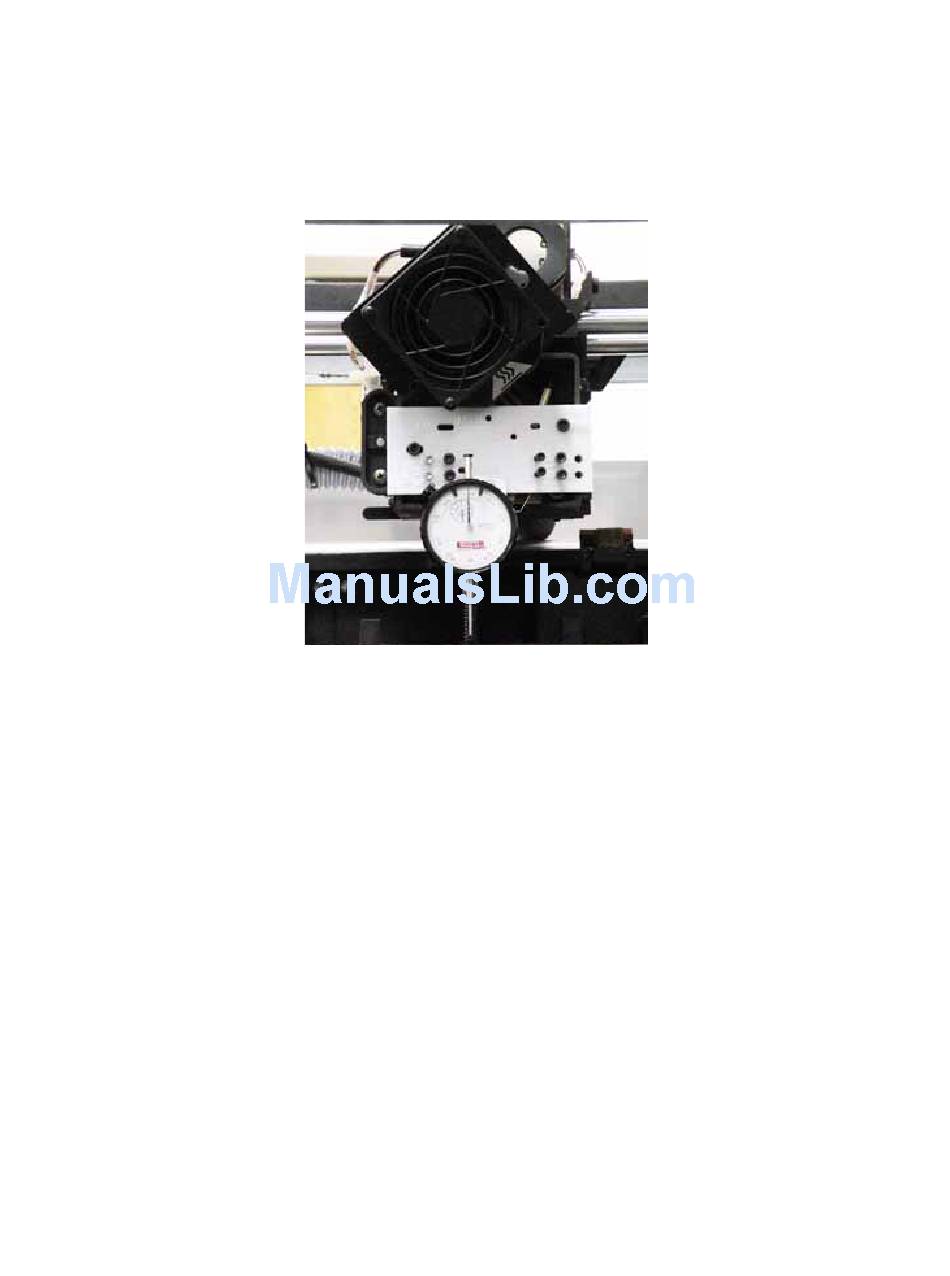

Figure 509: Head bracket and dial indicator installation
g. Raise the Z stage until it is 2 inches from the upper limit by turning the lead screws.
h. Move the dial indicator to the rear center mark and zero the dial indicator by loosening
the set screw and turning the dial until the long hand is at 0. Once the dial indicator is at
zero, tighten the set screw. See
Figure 509.
Figure 510.
5-401
