Stratasys Dimension 768/Elite Service Manual page 689

Illustrated Parts Breakdown
Cable Drive XY Table Components
Reference # Part Number
1 201301-0001
2 201307-0011
3 201307-0010
4 201857-0002
5 201627-0001
6 202409-0001
7 201473-0001
8 200100-CS01
X and Y stepper motors on cable XY tables are not field replaceable.
8
7
Appendix-2
Description
Y EOT limit switch
X BOT (home) sensor
Y home sensor (optical)
Head umbilical cable (gen 1 electronics)
Umbilical hose
Chamber snap switch (90° C)
X EOT sensor (optical)
XY table assembly (CABLE drive)

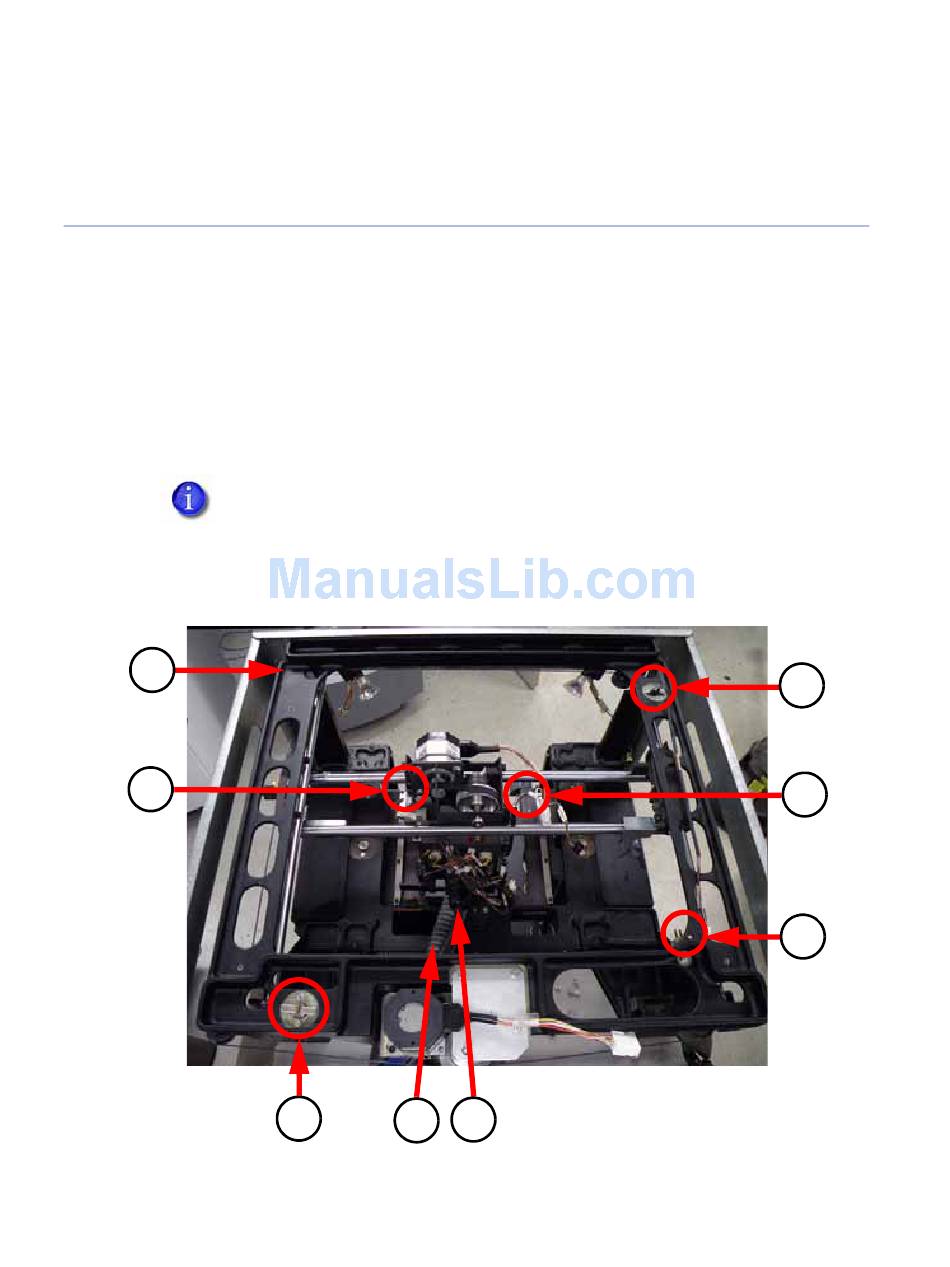

Figure 1: Cable drive XY table reference numbers
Front of printer
6
5
4
1
2
3
