25. ALERT MANAGEMENT SYSTEM (option)

25.12 Alert Icons

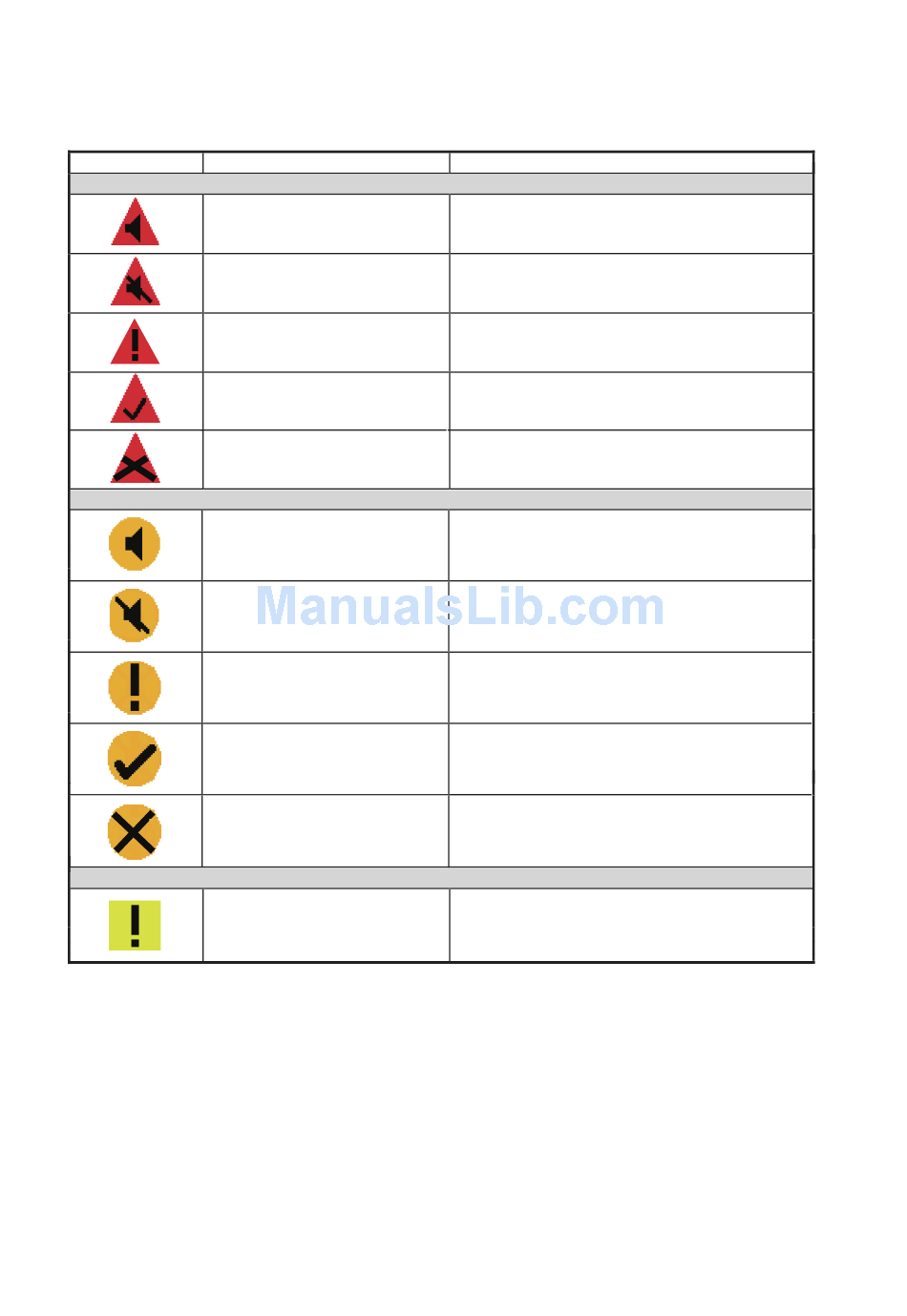

The alert icons show the state of all alerts.
Icon
Alert priority: Emergency, Alarm
Not acknowledged/Not rectified
Not acknowledged/Not rectified
Buzzer temporarily silenced
Acknowledged/Not rectified
Not acknowledged/Rectified
Acknowledge not allowed for
alarm
Alert priority: Warning
Not acknowledged/Not rectified
Not acknowledged/Not rectified
Buzzer temporarily silenced
Acknowledged/Not rectified
Not acknowledged/Rectified
Acknowledge not allowed for
warning
Alert priority: Caution
Caution
25-8
Alert state
Red triangle with black loudspeaker in center of
triangle. Flashing every 0.5 s.
Red triangle with crossed out black loudspeaker
in center of triangle. Flashing every 0.5 s.
Red triangle with black exclamation point in
center of triangle.
Red triangle with black check mark in
center of triangle. Lights 3 s, off 1 s, repeat.
Red triangle with black cross in middle of
triangle. Presented with first two icons above.
Yellow-orange circle with black loudspeaker in
center of circle.
Yellow-orange circle with crossed out black
loudspeaker in center of circle. Flashing every
0.5 s.
Yellow-orange circle with black exclamation
point in center of circle.
Yellow-orange circle with black check mark
in center of circle. Lights 3 s, off 1 s, repeat.
Yellow-orange circle with a cross in middle of
circle. Presented with first two warning icons
above.
Steadily displayed yellow square with black
exclamation point in center of square.
Icon description
