Furuno FMD-3300 Operator's Manual

Electronic Chart Display and Information System (ECDIS)
English
FMD-3200/FMD-3200-BB/FMD-3300
Model

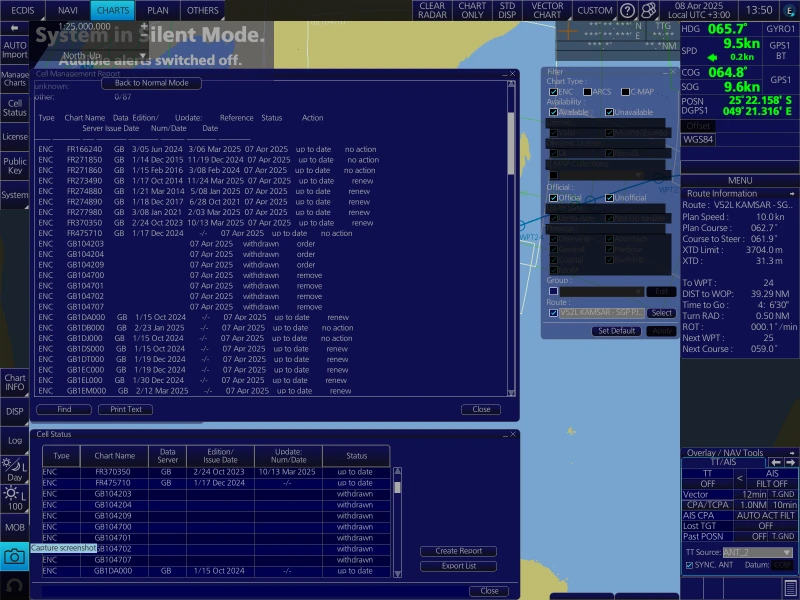

Controls
The system can be operated with the controls or the trackball module. The procedures in this operator's guide use the trackball module.
BRILL knob
Rotate: Adjusts
the brilliance of
the monitor.
A/C RAIN knob
Push: Selects a
color palette. Rotate: Suppresses rain clutter.
Push: Toggles between manual and automatic rain
clutter adjustment.
A/C SEA knob
Rotate: Suppresses sea clutter.
Push: Toggles between manual and automatic sea
clutter adjustment.
Rotary encoder for EBL
Adjusts the active EBL.
EBL1, EBL2
Activates, deactivates respective EBL.
ALARM ACK key
Acknowledges alerts; silences
the audio alarm.
InstantAccess knob
Accesses functions on the
InstantAccess bar TM .
Rotate: Selects item.
Push: Confirms selection.
ESC key
Goes back one step in current
TM
InstantAccess bar operation.
GAIN knob
Rotate: Adjusts
the sensitivity of
the radar receiver.
Push: Takes
screenshot.
Rotary encoder for VRM
VRM1, VRM2
Keyboard
MFD key
A keyboard for entering
Toggles operating
alphanumeric data.
modes.
Operator's Guide
Status LED
The color and state of the LED change according to alert status.
OFF: Heater on CPU board is on.
Green, lighting: Normal operation status; no alerts generated.
Red, flashing rapidly: Alert not acknowledged nor rectified.
Red, flashing slowly: Alert not acknowledged, but rectified.
Red, lighting: SYSTEM FAIL, or acknowledged but not rectified alert.
Adjusts the active VRM.
Activates, deactivates respective VRM.
UNDO key
Undoes the last operation, when
creating a route or user chart.
This guide provides the basic operating
procedures for this equipment. For detailed
information, see the Operator's Manual.
The brand and product names mentioned in this
guide are trademarks, registered trademarks or
service marks of their respective holders.
POWER key
Turns the system on or off. (This key may or may not control
monitor on/off depending on monitor setting.)
USB port (under cover)
Connects a USB flash drive.
Trackball module
Operates like a PC mouse.
RANGE key
Selects a chart
scale.
VIEW/HIDE key
Shows, hides EBLs, Instant
TM
Access bar , Overlay/NAV
Tools box, VRMs, Route
Information box.
ACQ/ACT key
Activates selected sleeping
AIS target.
TARGET DATA key
Displays the detailed
target data for selected TT,
AIS target.
TARGET CANCEL key
Sleeps selected activated
AIS target.
