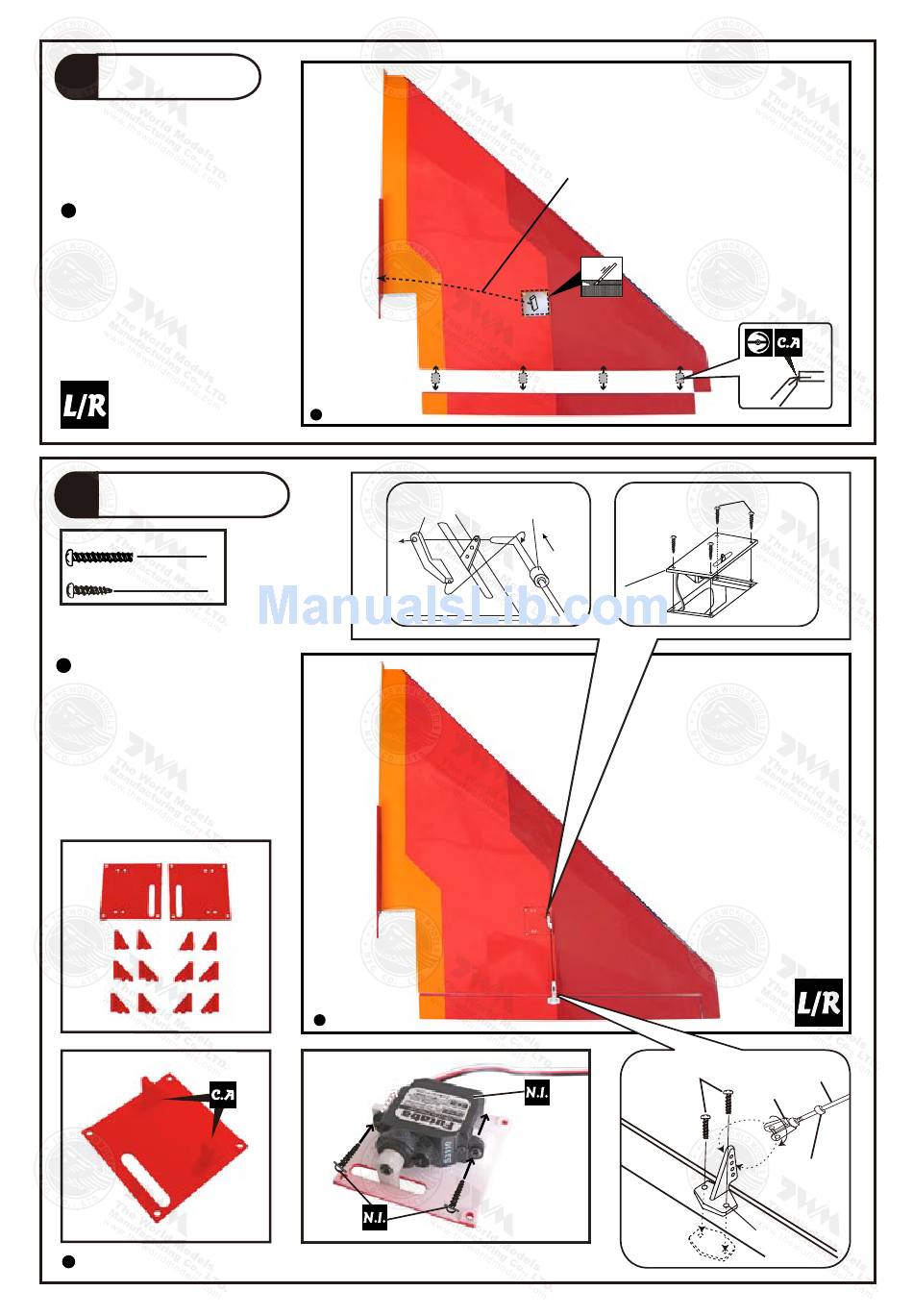

Aileron Servo - THE WORLD MODELS Delta Jet EP Instruction Manual

1
Main Wing
Apply instant type CA
glue to both sides of
each hinge.
2

Aileron Servo

PB2x12mm Screw
4
PA1.7x8mm Screw
8
Ø1mm pilot holes for
World Models horn are
pre-drilled. Please look
for pin-hole marks at
under side of control
surfaces.
02L 02R
03L 03R
04L 04R
Please choose either 02L & 02R or 03L & 03R or 04L & 04R that suits your servo.
Bottom View
Fuel Tube
Straper
d2xD4x4mm
Bottom View
P.3
Aileron Servo Lead
PB2x12mm
PA1.7x8mm
Pushrod
Ø1.4x96mm
Clevis
Fuel Tube
d2xD4x4mm
Horn
