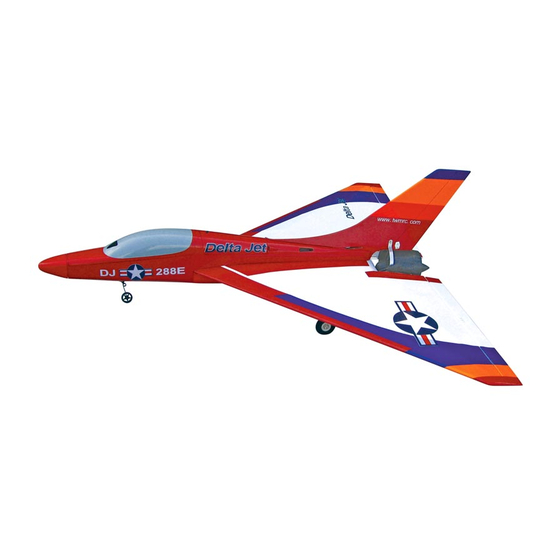

Delta Jet EP
Requires : 4-channel "mixing" radio (elevator and
aileron) w/ 3 micro servos,
Ducted Fan Propulsion Unit PL6800010,
Ducted Fan Booster Cone PL6800011 and
Outrunner Motor KM0283110
30A (burst 35A) brushless ESC,
3 cells 11.1V 15C discharge 2100 mAh
Li - Po battery & charger.
Wing Span
Wing Area
Flying Weight
Fuselage Length
Warning! This model is not a toy.
It is designed for maximum performance. Please seek advice if one is not familiar with this kind
of electric powered precision model. Operating this model without prior preparation may cause
injuries. Remember, safety is the most important thing. Always keep this instruction manual at
hand for quick reference.
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
Specifications
*Specifications are subject to change without notice.*
34.5 in / 880 mm
384 sq in / 24.8 sq dm
28 oz / 790 g
32.5 in / 825 mm
ALMOST-READY-TO-FLY (ARF) SERIES
INSTRUCTION MANUAL
FACTORY PRE-FABRICATED
MADE IN CHINA
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for THE WORLD MODELS Delta Jet EP
Summary of Contents for THE WORLD MODELS Delta Jet EP
- Page 1 INSTRUCTION MANUAL Delta Jet EP Requires : 4-channel “mixing” radio (elevator and aileron) w/ 3 micro servos, Ducted Fan Propulsion Unit PL6800010, Ducted Fan Booster Cone PL6800011 and Outrunner Motor KM0283110 30A (burst 35A) brushless ESC, 3 cells 11.1V 15C discharge 2100 mAh Li - Po battery &...
-
Page 2: Before You Begin
Delta Jet EP I N D E X BEFORE YOU BEGIN P. 1 PARTS LIST P. 2 ASSEMBLY P.3-P.9 SAFETY PRECAUTIONS BEFORE YOU BEGIN Read through the manual before you begin, so you will have an overall idea of what to do. -
Page 3: Parts List
Parts List 9. BELLY PAN -- 1 pc. 1. MAIN WING -- 1 pair SCREW PM3x45mm -- 2 pcs 2. SERVO MOUNTING PANEL -- 1 pair WASHER d3xD7mm -- 2 pcs PUSHROD Ø1.4x96mm w/ Threads (For Aileron) -- 2 pcs 10. -
Page 4: Aileron Servo
Main Wing Aileron Servo Lead Apply instant type CA glue to both sides of each hinge. Bottom View Aileron Servo PA1.7x8mm Fuel Tube Straper d2xD4x4mm PB2x12mm Screw PA1.7x8mm Screw Ø1mm pilot holes for World Models horn are pre-drilled. Please look for pin-hole marks at under side of control surfaces. - Page 5 Main Wing 141mm 141mm Wing Tube d8xD9.6x282mm Wing Tube Center Line Plywood 3x95x106mm Completed Balsa 2x14.6x15.2mm Bottom Balsa 2x11.6x14.7mm...
- Page 6 Ducted Fan Propulsion Unit with 28/31 Motor PM3x12mm Screw d3xD7mm Washer PM2x5mm M3 Nut Optional Parts PL6800010 M3x6mm Rear View Outrunner Motor 28 / 31 KM0283110 PL6800011 Motor Lead Exit Make sure rotating motor casing is not in contact with wiring or anything.
-
Page 7: Main Landing Gear
Vertical Fin & Rudder Apply instant type CA glue to both sides of each hinge. A=A' Intercooler Air Exit Completed Ø1mm pilot hole is pre-drilled. Please look for Main Landing Gear pin-hole marks at under side of wing. PA2.3x8mm Screw Mounting Plate 2.6mm Collar PA2.3x8mm... -
Page 8: Front Landing Gear
Ø1mm pilot hole is pre-drilled. Please look for Front Landing Gear pin-hole marks at under side of fuselage. PA2x8mm Screw Plastic Collar d1.1xD5x2mm PA2x8mm 1.3mm Bottom View Completed Ø1mm pilot holes for World Models horn are pre-drilled. Please Rudder Pushrod look for pin-hole marks at under side of control surfaces. -
Page 9: Radio Equipment
Radio Equipment PM2x8mm Screw Straper PM2x10mm Screw Fuel Tube d2xD4x4mm Front Landing Gear M2 Nut Rudder Pushrod Pushrod Ø1.2x444mm Rudder Servo Front Landing Gear d2xD5mm Washer Battery Battery Tie Sponge Receiver Plastic Tube d2xD3x54mm 20A Brushless ESC Nose Gear Ø0.8x104mm Install and arrange the M2 Nut M2 Nut... - Page 10 Wing Setting Adjust the wing and fuselage configuration as shown in the diagrams. A=A' B=B' C=C'...
- Page 11 # Pre-flight adjustment must be done before flying, it is very dangerous to fly a badly pre-adjusted aircraft. Delta Jet EP is designed for high speed flying. Too low an air speed during take off or landing may cause tip stall. Point the DeltaJet EP towards the wind, use full throttle and let the DeltaJet EP gain enough ground speed before pulling the elevator gently for take off.
- Page 12 Product Registration Form (US Customers) We would like to share with you any relevant information regarding your model, including product news and free upgrade parts when applicable. Please fill in the following and send to AirBorne Models, 2403 Research Drive, Livermore, CA 94550 USA. 1.
- Page 13 Ｐａｔｔｅｒｎ Ｄｕｃｔｅｄ Ｆａｎ Ｆｕｎｆｌｙ Ｗａｒｂｉｒｄｓ Ｓｃａｌｅ Ｅｌｅｃｔｒｉｃ Ｓｐｏｒｔｓ Ｇｌｉｄｅｒ Ｂｏａｔ Ｔｒａｉｎｅｒ Ａｃｃｅｓｓｏｒｉｅｓ Ｃｏｖｅｒｉｎｇ （Ｌｉｇｈｔｅｘ ／ Ｔｏｕｇｈｌｏｎ） The World Models Manufacturing Co., LTD. www.theworldmodels.com E288XMPO18120901...
