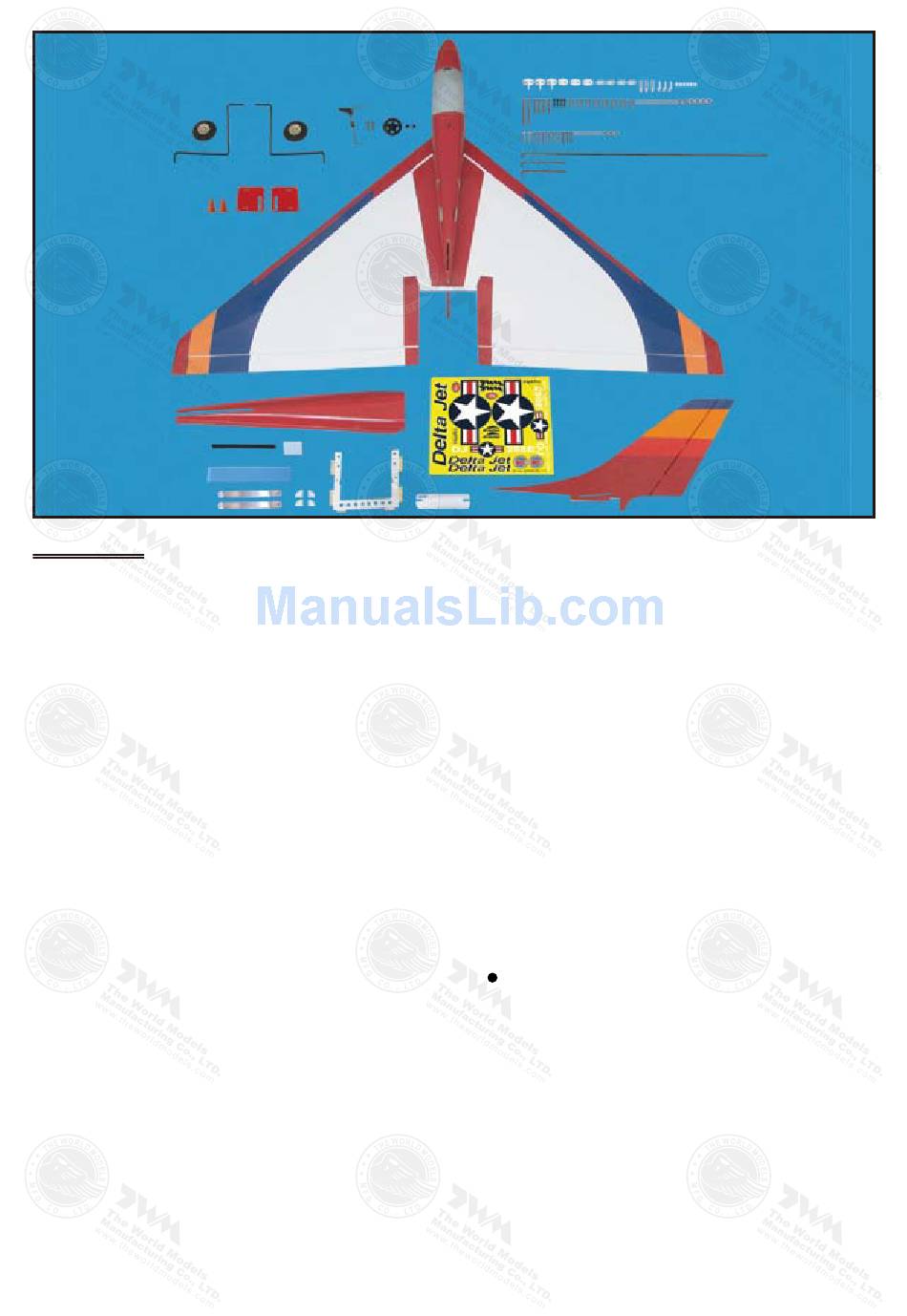

Parts List

1. MAIN WING -- 1 pair
2. SERVO MOUNTING PANEL -- 1 pair
PUSHROD Ø1.4x96mm w/ Threads (For Aileron) -- 2 pcs
STRAPER -- 2 pcs
FUEL TUBE d2xD4x4mm -- 4 pcs
CLEVIS -- 2 pcs
HORN -- 2 sets
SCREW PB2x12mm -- 4 pcs
SCREW PA1.7x8mm -- 8 pcs
3. WING TUBE D9.6x282mm -- 1 pc.
PVC PLATE 0.5mm -- 1 pc.
PLYWOOD 3x95x106mm -- 1 pc.
BALSA 2x14.6x15.2mm -- 2 pcs
BALSA 2x11.6x14.7mm -- 2 pcs
4. SCREW PM3x12mm -- 4 pcs
WASHER d3xD7mm -- 4 pcs
M3 NUT -- 4 pcs
5. VERTICAL FIN & RUDDER -- 1 set
FUSELAGE -- 1 pc.
INTERCOOLER AIR EXIT -- 2 pcs
6. MAIN LANDING GEAR -- 1 pair
MOUNTING PLATE 12x27mm (PL4114030) -- 4 pcs
MAIN WHEEL Ø40mm -- 2 pcs
COLLAR Ø2.6mm w/ set screw -- 4 sets
SCREW PA2.3x8mm -- 8 pcs
7. NOSE GEAR -- 1 set
PLASTIC COLLAR d1.1xD5x2mm -- 2 pcs
FRONT WHEEL Ø23mm -- 1 pc.
SCREW PA2x8mm -- 2 pcs
8. PUSHROD Ø1.2x444mm w/ Threads (For Rudder) -- 1 pc.
HORN -- 1 set
CLEVIS -- 1 pc.
FUEL TUBE d2xD4x4mm -- 1 pc.
SCREW PB2x8mm -- 2 pcs
9. BELLY PAN -- 1 pc.
SCREW PM3x45mm -- 2 pcs
WASHER d3xD7mm -- 2 pcs
10. PUSHROD Ø0.8x104mm (For Front Landing Gear) -- 1 pc.
PLASTIC TUBE d2xD3x54mm -- 1 pc.
STRAPER -- 1 pc.
FUEL TUBE d2xD4x4mm -- 1 pc.
BATTERY TIE 200mm -- 1 pc.
SPONGE 10x50x150mm -- 1 pc.
DOUBLE-SIDED TAPE 30x35mm -- 1 pc.
ALUMINUM PLATE 1mm -- 1 pair
SCREW PM2x8mm -- 2 pcs
SCREW PM2x10mm -- 1 pc.
M2 NUT -- 3 pcs
WASHER d2xD5mm -- 6 pcs
11. COCKPIT -- 1 pc.
BATTERY COVER -- 1 pc.
SCREW PWA2x8mm -- 2 pcs
12. DECALS E288XMDEC -- 1 pc.
COVERING:--
LIGHTEX SGX 100 WHITE
LIGHTEX SGX 250 BLUE
LIGHTEX SGX 310 RED
LIGHTEX SGX 320 ORANGE
