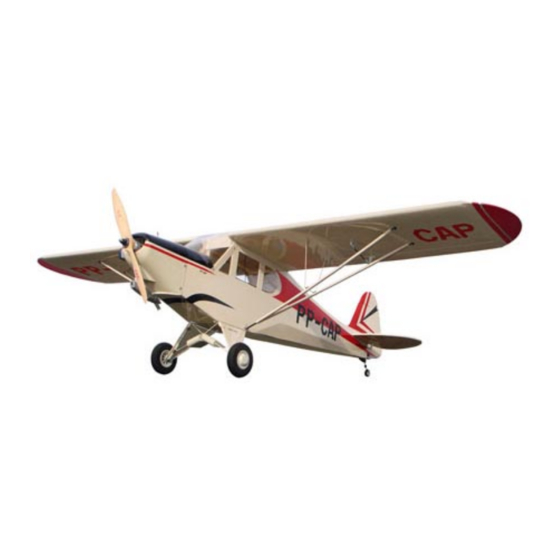

PAULISTINHA P-56 EP
PAULISTINHA P-56 EP
Requires:
4-channel radio w/ 4 micro servos. Outrunner
Motor KM0283011 w/ Propeller Adaptor HW2340100
20A Brushless ESC, 3 cells 11.1V 15C 1800 mAh Li-Po
battery & charger.
Wing Span
Wing Area
Flying Weight
Fuselage Length
Warning! This model is not a toy.
It is designed for maximum performance. Please seek advice if one is not familiar with this kind
of engine powered precision model. Operating this model without prior preparation may cause
injuries. Remember, safety is the most important thing. Always keep this instruction manual at
hand for quick reference.
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
E326PO28761301
Specifications
* Specifications are subject to change without notice. *
48.5 in / 1230 mm
330 sq in / 21.3 sq dm
28 oz / 800 g
30 in / 760 mm
ALMOST-READY-TO-FLY (ARF) SERIES
INSTRUCTION MANUAL
( E326 )
FACTORY PRE-FABRICATED
MADE IN CHINA
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for THE WORLD MODELS PAULISTINHA P-56 EP
Summary of Contents for THE WORLD MODELS PAULISTINHA P-56 EP
- Page 1 INSTRUCTION MANUAL PAULISTINHA P-56 EP PAULISTINHA P-56 EP ( E326 ) Requires: 4-channel radio w/ 4 micro servos. Outrunner Motor KM0283011 w/ Propeller Adaptor HW2340100 20A Brushless ESC, 3 cells 11.1V 15C 1800 mAh Li-Po battery & charger. Specifications Wing Span 48.5 in / 1230 mm...
-
Page 2: Before You Begin
PAULISTINHA P-56 EP PAULISTINHA P-56 EP INDEX BEFORE YOU BEGIN PARTS LIST ASSEMBLY P.3-P.10 SAFETY PRECAUTIONS P.10 BEFORE YOU BEGIN Read through the manual before you begin, so you will have an overall idea of what to do. Check all parts. If you find any defective or missing parts contact your local dealer. Please DRY FIT and check for defects for all parts that will require CA or Epoxy for final assembly. -
Page 3: Parts List
Parts List 1. MAIN WING -- 1 pair 10. SPONGE 10x50x150mm -- 2 pcs DOUBLE-SIDED TAPE 30x35mm -- 1 pc. 2. MICRO AILERON SERVO MOUNT (For Aileron) PL5310020 -- 1 pair FUEL TUBE d2xD4x4mm -- 2 pcs CLEVIS PL4112105 -- 2 pcs BATTERY TIE 200mm-- 1 pc. -
Page 4: Bottom View
Main Wing Apply instant type CA glue to both sides of each hinge. Aileron Servo Lead Bottom View Aileron Servos PB2x14mm Screw PA1.7x8mm PA1.7x8mm Screw Ø1mm pilot holes for World Models horn are pre-drilled. Please look for pin-hole marks at under side of control surfaces. Straper Fuel Tube d2xD4x4mm... -
Page 5: Stabilizer & Elevator
Stabilizer & Elevator (Stabi l i zer) PB2x8mm Screw Temporary install the main wing, adjust (Mai n Wi ng) leveling of the stabilizer to make it as B=B' parallel to the main wing as possible . A=A' Remove coverings for all surfaces in contact before applying A/B epoxy glue. -
Page 6: Tail Landing Gear
Tail Landing Gear PA2x8mm Screw M2 Nut Screw PM2x8mm Steering Bracket PM2x8mm Wheel Ø23mm Plastic PA2x8mm Collar Bottom View Rudder Pushrod Ø1mm pilot holes for World Models horn are pre-drilled. Please look for pin-hole marks at under side of control surfaces. PB2x8mm Screw TWM PL8210010... -
Page 7: Optional Parts
Outrunner Motor / Cowling M3x6mm Socket Head Screw Motor KP0011310 PM2x12mm Screw Solder Solder PA1.7x8mm Screw Don't over-tighten the M3 screws, too d3xD7mm Washer Optional Parts much stress on the screws could split the firewall. PWA2x8mm Screw Outrunner Motor 28/ 30 KM0283011 Washer d3xD7mm Make sure rotating... -
Page 8: Radio Equipment
Windows Securely glue the windows to the fuselage. PWA2x8mm Screw PWA2x8mm Radio Equipment lnstall and arrange the servo as shown in the diagram. Front Rudder Pushrod Fuel Tube d2xD4x4mm Rudder Servo Straper Elevator Pushrod Elevator Servo Sponge Receiver Battery Tie Battery Sponge Battery Tie... -
Page 9: Main Landing Gear
Main Landing Gear Screw PM2x10mm PVC32x6mm Landing Gear Cover PM2x6mm PM2x6mm Screw Landing Gear Cover 70x20mm M2 Nut Transparent Decals Washer d2xD5mm PA2.6x10mm PA2.6x10mm Screw d2xD5mm Washer Wheel Ø50mm D2.6mm Collar Fuselage Mounting Plate PM2x10mm M2 Nylon Insert Lock Nut M3 x 3mm M2 Nylon Set Screw... - Page 10 Wing Setting Adjust the wing and fuselage configuration as shown in the diagrams. A = A ' B = B ' C = C ' E326PO28761301...
-
Page 11: Control Throws
# First time flyer should never fly by himself / herself. Assistance from experienced flyer is absolutely necessary. # Pre-flight adjustment must be done before flying, it is very dangerous to fly a badly pre-adjusted aircraft. KM0283011 Outrunner Motor PAULISTINHA P-56 EP PAULISTINHA P-56 EP is specially designed to be powered by # Make sure the air field is spacious, never fly the plane too close to people and never get too close to a running propeller. - Page 12 KM0283011 Pl8210010 Large Clevis • Small Clevis •...
- Page 13 E326PO28761301...
