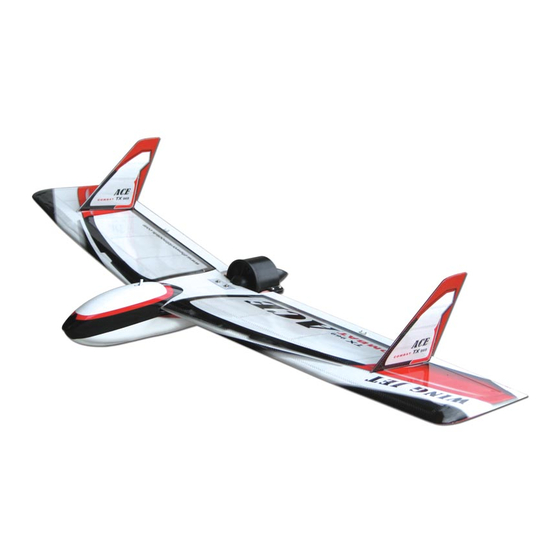

Wing Jet EP
Requires : 3-channel "mixing" radio (elevator & ailerons),
2 micro servos, Ducted Fan Propulsion Unit
PL6800010 and Outrunner Motor KM0283110,
30A (burst 35A) brushless ESC, 3 cells 11.1V 15C
2100 mAh Li - Po battery & charger.
Warning ! This model is not a toy.
It is designed for maximum performance. Please seek advice if one is not familiar with this kind
of electric powered precision model. Operating this model without prior preparation may cause
injuries. Remember, safety is the most important thing. Always keep this instruction manual at
hand for quick reference.
E210NXMPO24831008
Wing Span
Wing Area
Flying Weight
Fuselage Length
*Specifications are subject to change without notice.*
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
Specifications
39.5 in / 1000 mm
301 sq in / 19.4 sq dm
22 oz / 620 g
17.5 in / 440 mm
INSTRUCTION MANUAL
FACTORY PRE-FABRICATED
ALMOST-READY-TO-FLY(ARF)SERIES
MADE IN CHINA
Advertisement
Table of Contents
Related Manuals for THE WORLD MODELS Wing Jet EP
Summary of Contents for THE WORLD MODELS Wing Jet EP
- Page 1 INSTRUCTION MANUAL Wing Jet EP Requires : 3-channel “mixing” radio (elevator & ailerons), 2 micro servos, Ducted Fan Propulsion Unit PL6800010 and Outrunner Motor KM0283110, 30A (burst 35A) brushless ESC, 3 cells 11.1V 15C 2100 mAh Li - Po battery & charger.
-
Page 2: Before You Begin
Wing Jet EP INDEX BEFORE YOU BEGIN PARTS LIST ASSEMBLY P.3-P.8 SAFETY PRECAUTIONS BEFORE YOU BEGIN Read through the manual before you begin, so you will have an overall idea of what to do. Check all parts. If you find any defective or missing parts contact your local dealer. Please DRY FIT and check for defects for all parts that will require CA or Epoxy for final assembly. -
Page 3: Parts List
Parts List 1. MAIN WING -- 1 pair 2. SCREW PB2x10mm -- 4 pcs SCREW PA1.7x8mm -- 8 pcs STRAPER PL4112106 -- 2 pcs CLEVIS PL4112105 -- 2 pcs FUEL TUBE d2xD4x4mm -- 4 pcs HORN PL4113102 -- 2 sets PUSHROD Ø1.4x97mm w/ Threads (For Aileron) -- 2 pcs MICRO AILERON SERVO MOUNT PL5310020 -- 1 pair 3. -
Page 4: Aileron Servo
Main Wing Aileron Servo Lead Apply instant type CA glue to both sides of each hinge. Bottom View Aileron Servo PA1.7x8mm Fuel Tube Straper d2xD4x4mm PB2x10mm Screw PA1.7x8mm Screw Ø1mm pilot holes for World Models tri-horn are pre-drilled. Please look for pin-hole marks at under side of control surfaces. - Page 5 Main Wing Please apply glue to wing joiner and all surfaces in contact. Ø5x135mm Vertical Fin PM2x20mm Screw d2xD5mm Washer M2 Nylon Insert Lock Nut M2 Nylon Insert Lock Nut d2xD5mm Washer PM2x20mm Completed Battery & ESC 30A Brushless Install and arrange the equipment as shown in Cable Tie the picture.
- Page 6 Ducted Fan Propulsion Unit with 28/31 Motor Optional Parts M3x6mm Socket Head Screw Outrunner Motor 28/ 31 Make sure rotating motor casing KM0283110 PM2x5mm Screw is not in contact with wirings or anything. PWM3x13mm Screw M3 NUT Ducted Fan Propulsion Unit PL6800010 PM2x5mm M3x6mm Rear View...
- Page 7 Receiver PM2.5x20mm Screw d2.5xD8mm Washer Double-Sided Tape Receiver Antenna Lead d2.5xD8mm PM2.5x20mm Washer Plywood 2x20x40mm Canopy Completed E210NXMPO24831008...
- Page 8 Field Stand/ Launching Pad Completed The field stand can be used as a launching-pad if you are flying on paved runways. Place the Wing Jet on the stand, point it into the wind, check your controls and advance the throttle. When the Wing Jet gets enough air speed, pull the elevator gently and the Wing Jet will fly off the field stand and get airborne gracefully.
-
Page 9: Control Throws
# First time flyer should never fly by himself / herself. Assistance from experienced flyer is absolutely necessary. # Pre-flight adjustment must be done before flying, it is very dangerous to fly a badly pre-adjusted aircraft. Wing Jet EP KM0283110 Outrunner Motor... - Page 10 Product Registration Form (US Customers) We would like to share with you any relevant information regarding your model, including product news and free upgrade parts when applicable. Please fill in the following and send to AirBorne Models, 4749-K, Bennett Drive, Livermore, CA 94551 USA. 1.
-
Page 11: Optional Parts ( Accessories)
Optional Parts ACCESSORIES) Outrunner 28/31(for ducted fan) Ducted Fan Propulsion Unit without Motor 180mm Extension (3-cell Li-po) Code No. Size Package PL6800010 KW0011800 180mm 1 set KM0283110 Micro Servo Code No SV2031 -Operating Voltage/Current: 12V/30V(35A Burst) -Kv(rpm/V):3600 -Thrust: Approx.560g -Operating Power:375W -Weight:60g(without motor) -Operating Voltage:6-15V -Rotor diameter: 67mm... - Page 12 The World Models Manufacturing Co., Ltd. www.theworldmodels.com E210NXMPO24831008...
