P R O 4 8
R E M O V I N G T H E

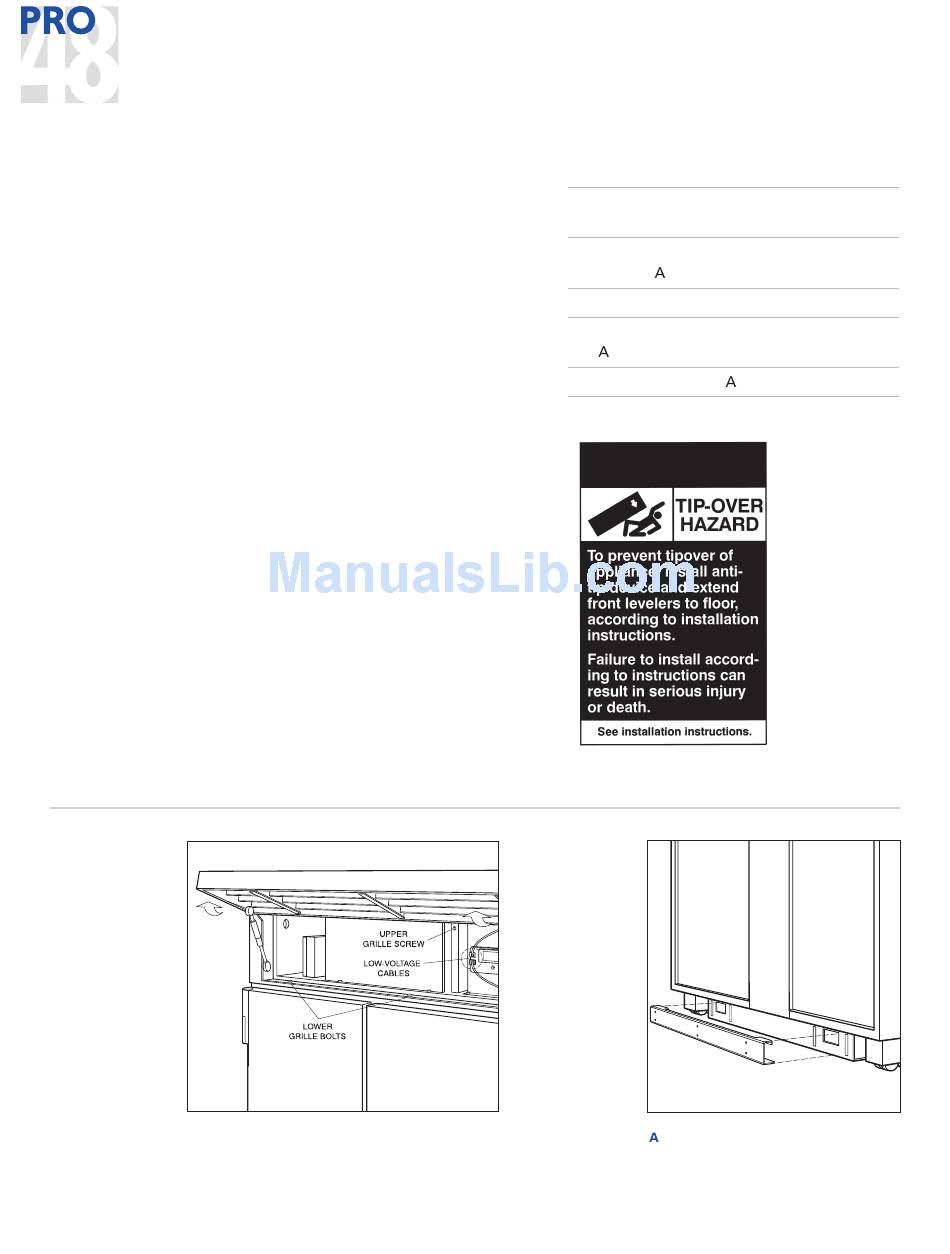

In order to prevent damage to the grille, the
top grille assembly should be removed prior
to moving the unit.
To remove the grille assembly, pull out on the
bottom edge of the grille and tilt the grille
frame forward. Disconnect the low-voltage
cable which connects the exterior temperature
displays on the grille to the display module,
and cut the two white cable ties which attach
the network cable to the right grille support.
These cables ties should be replaced once the
unit is properly installed with the extra cable
ties provided in this package. Remove the
three bolts from base of the grille. Remove the
screw from the upper grille area to remove the
grille assembly. Refer to the illustration below.
Removing the grille
12
I N S TA L L AT I O N I N S T R U C T I O N S
G R I L L E
A N T I - T I P B R A C K E T
A N T I - T I P H A R D W A R E I N C L U D E D
12 #12 x 63.5 mm PN HD
Wood Screw
3
3 / " x 95,25 mm
8
Trubolt nchor
12 #12 flat washer
3 #8–18 x 31,75 mm
B PH HD Screw
3 Nylon Zip-It Wall nchor
nti-tip bracket alignment
I N S TA L L AT I O N
6201190
6110620
6240040
6201520
6160390
