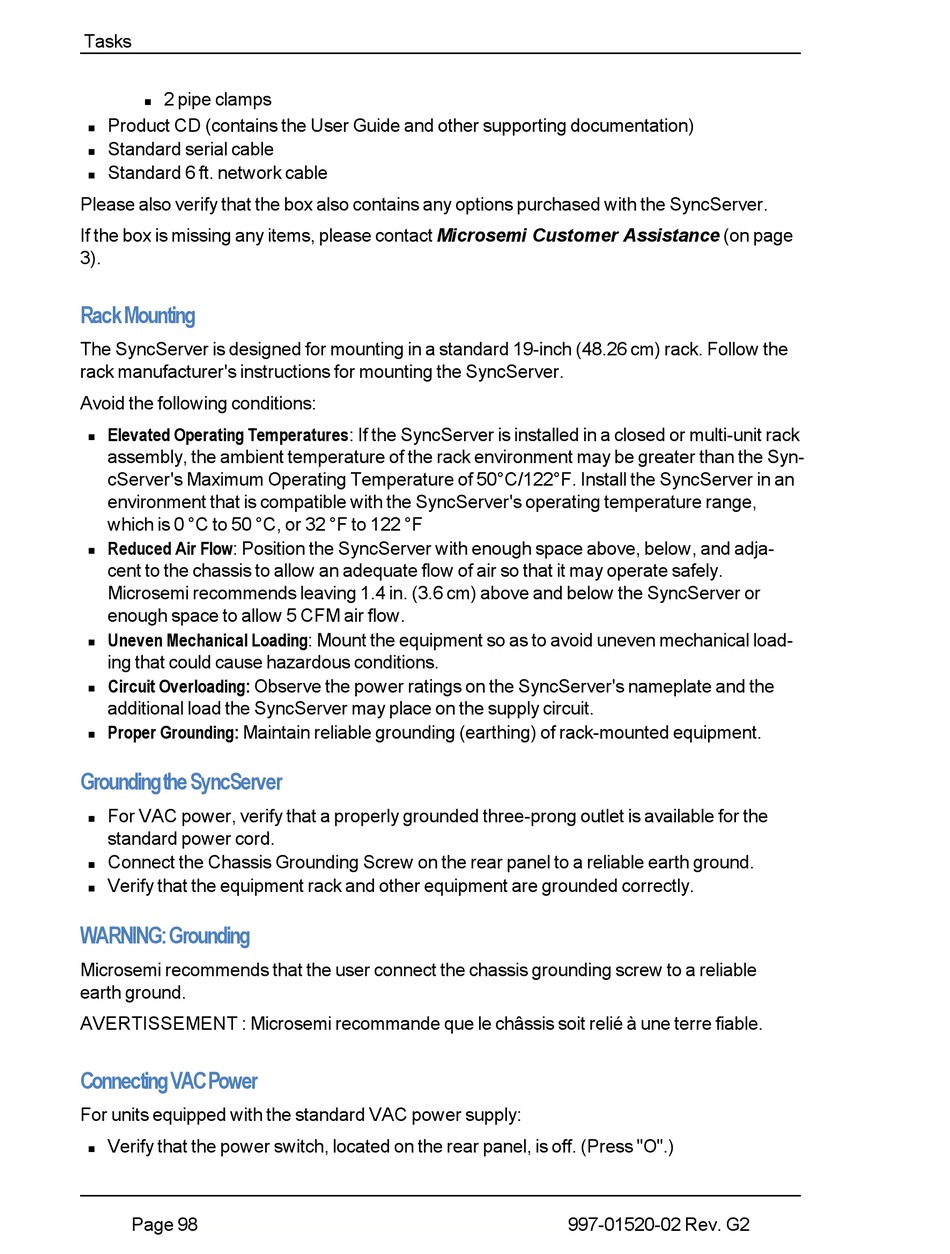

Tasks
2 pipe clamps
n
Product CD (contains the User Guide and other supporting documentation)
n
Standard serial cable
n
Standard 6 ft. network cable
n
Please also verify that the box also contains any options purchased with the SyncServer.
If the box is missing any items, please contact Microsemi Customer Assistance (on page
3).

RackMounting

The SyncServer is designed for mounting in a standard 19-inch (48.26 cm) rack. Follow the
rack manufacturer's instructions for mounting the SyncServer.
Avoid the following conditions:
Elevated Operating Temperatures: If the SyncServer is installed in a closed or multi-unit rack
n
assembly, the ambient temperature of the rack environment may be greater than the Syn-
cServer's Maximum Operating Temperature of 50°C/122°F. Install the SyncServer in an
environment that is compatible with the SyncServer's operating temperature range,
which is 0 °C to 50 °C, or 32 °F to 122 °F
Reduced Air Flow: Position the SyncServer with enough space above, below, and adja-
n
cent to the chassis to allow an adequate flow of air so that it may operate safely.
Microsemi recommends leaving 1.4 in. (3.6 cm) above and below the SyncServer or
enough space to allow 5 CFM air flow.
Uneven Mechanical Loading: Mount the equipment so as to avoid uneven mechanical load-
n
ing that could cause hazardous conditions.
Circuit Overloading: Observe the power ratings on the SyncServer's nameplate and the
n
additional load the SyncServer may place on the supply circuit.
Proper Grounding: Maintain reliable grounding (earthing) of rack-mounted equipment.
n

Groundingthe SyncServer

For VAC power, verify that a properly grounded three-prong outlet is available for the
n
standard power cord.
Connect the Chassis Grounding Screw on the rear panel to a reliable earth ground.
n
Verify that the equipment rack and other equipment are grounded correctly.
n

WARNING:Grounding

Microsemi recommends that the user connect the chassis grounding screw to a reliable
earth ground.
AVERTISSEMENT : Microsemi recommande que le châssis soit relié à une terre fiable.

ConnectingVACPower

For units equipped with the standard VAC power supply:
Verify that the power switch, located on the rear panel, is off. (Press "O".)
n
Page 98..........................................................................997-01520-02 Rev. G2
