Web Interface
Auth Crypt: The authentication type, MD5 or SHA1. It uses the Auth Phrase as its key
when calculating the message hash.
Priv Phrase: Creates a unique encryption passphrase for messages exchanged between
the network management software and the SyncServer. It must be at least eight characters
long.
Min Priv: Establishes the minimum authentication level required for the user. One of the fol-
lowing must be selected:
Authentication (Auth): Auth Phrase is always required
n
Auth and Privacy (Priv): Auth and Priv Phrase are always required
n

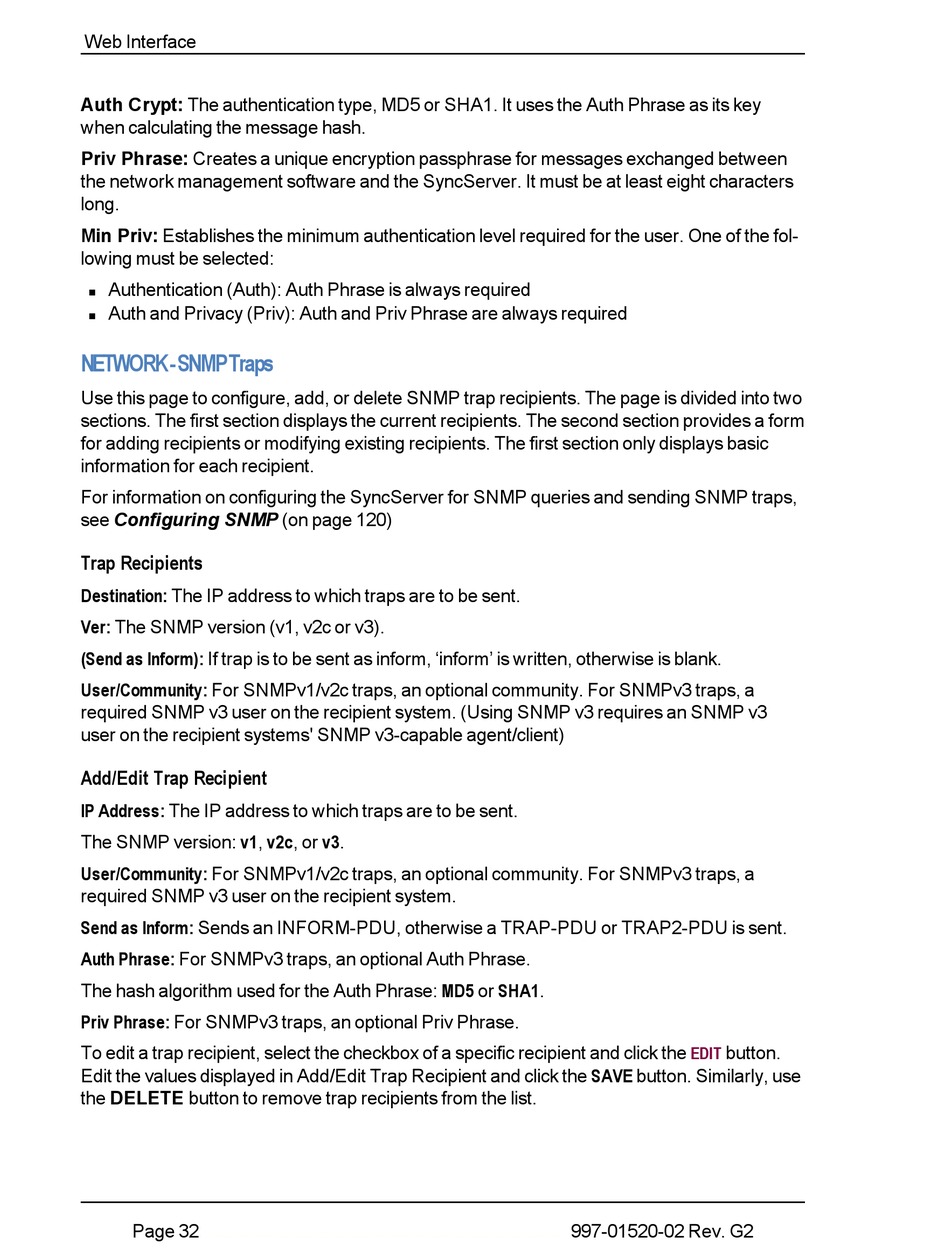

NETWORK-SNMPTraps
Use this page to configure, add, or delete SNMP trap recipients. The page is divided into two
sections. The first section displays the current recipients. The second section provides a form
for adding recipients or modifying existing recipients. The first section only displays basic
information for each recipient.
For information on configuring the SyncServer for SNMP queries and sending SNMP traps,
see Configuring SNMP (on page 120)
Trap Recipients
Destination: The IP address to which traps are to be sent.
Ver: The SNMP version (v1, v2c or v3).
(Send as Inform): If trap is to be sent as inform, 'inform' is written, otherwise is blank.
User/Community: For SNMPv1/v2c traps, an optional community. For SNMPv3 traps, a
required SNMP v3 user on the recipient system. (Using SNMP v3 requires an SNMP v3
user on the recipient systems' SNMP v3-capable agent/client)
Add/Edit Trap Recipient
IP Address: The IP address to which traps are to be sent.
The SNMP version: v1, v2c, or v3.
User/Community: For SNMPv1/v2c traps, an optional community. For SNMPv3 traps, a
required SNMP v3 user on the recipient system.
Send as Inform: Sends an INFORM-PDU, otherwise a TRAP-PDU or TRAP2-PDU is sent.
Auth Phrase: For SNMPv3 traps, an optional Auth Phrase.
The hash algorithm used for the Auth Phrase: MD5 or SHA1.
Priv Phrase: For SNMPv3 traps, an optional Priv Phrase.
To edit a trap recipient, select the checkbox of a specific recipient and click the
Edit the values displayed in Add/Edit Trap Recipient and click the SAVE button. Similarly, use
the DELETE button to remove trap recipients from the list.
Page 32..........................................................................997-01520-02 Rev. G2
button.
EDIT
