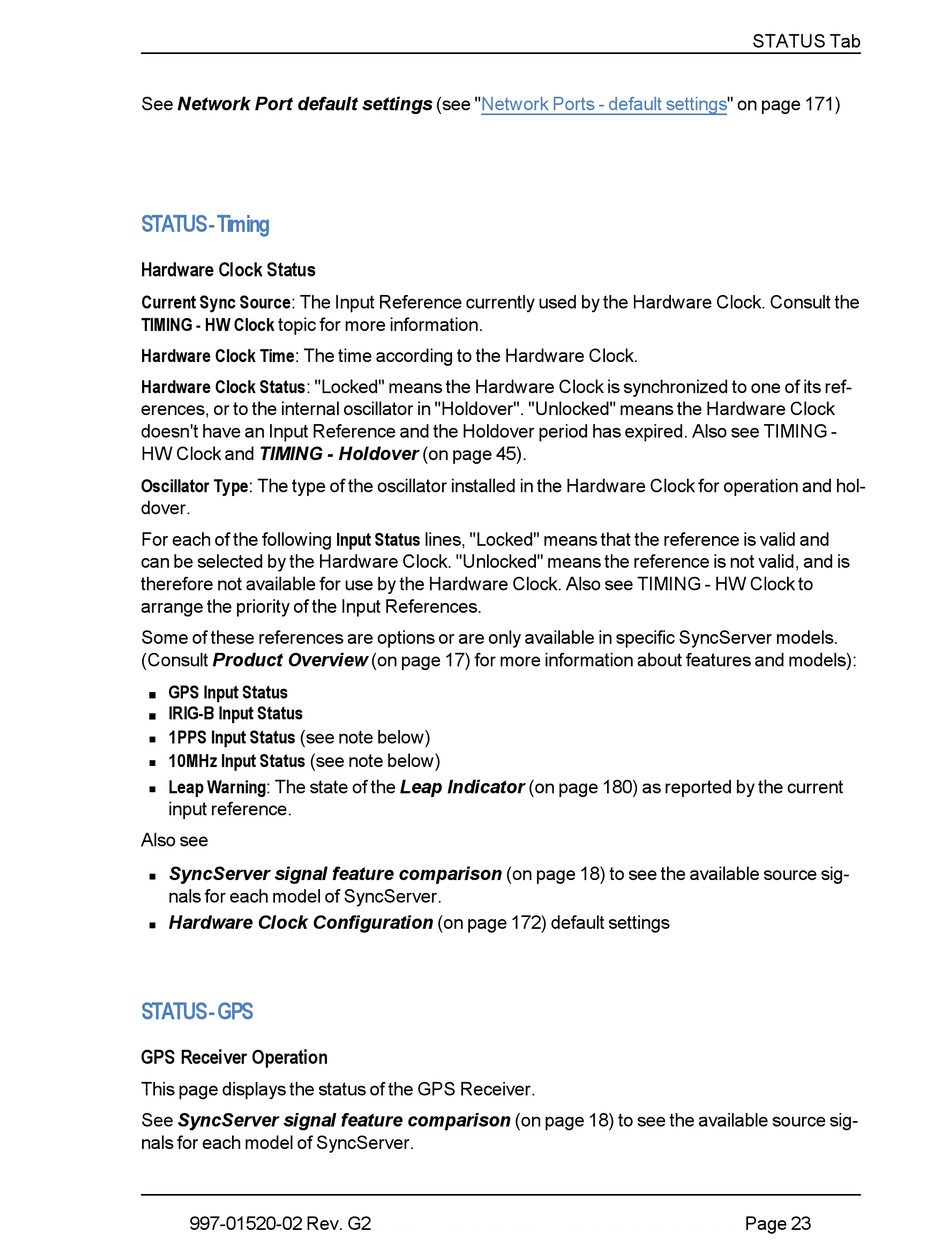

See Network Port default settings (see

STATUS- Timing

Hardware Clock Status
Current Sync Source: The Input Reference currently used by the Hardware Clock. Consult the
TIMING - HW Clock topic for more information.
Hardware Clock Time: The time according to the Hardware Clock.
Hardware Clock Status: "Locked" means the Hardware Clock is synchronized to one of its ref-
erences, or to the internal oscillator in "Holdover". "Unlocked" means the Hardware Clock
doesn't have an Input Reference and the Holdover period has expired. Also see TIMING -
HW Clock and TIMING - Holdover (on page 45).
Oscillator Type: The type of the oscillator installed in the Hardware Clock for operation and hol-
dover.
For each of the following Input Status lines, "Locked" means that the reference is valid and
can be selected by the Hardware Clock. "Unlocked" means the reference is not valid, and is
therefore not available for use by the Hardware Clock. Also see TIMING - HW Clock to
arrange the priority of the Input References.
Some of these references are options or are only available in specific SyncServer models.
(Consult Product Overview (on page 17) for more information about features and models):
GPS Input Status
n
IRIG-B Input Status
n
1PPS Input Status (see note below)
n
10MHz Input Status (see note below)
n
Leap Warning: The state of the Leap Indicator (on page 180) as reported by the current
n
input reference.
Also see
SyncServer signal feature comparison (on page 18) to see the available source sig-
n
nals for each model of SyncServer.
Hardware Clock Configuration (on page 172) default settings
n

STATUS- GPS

GPS Receiver Operation
This page displays the status of the GPS Receiver.
See SyncServer signal feature comparison (on page 18) to see the available source sig-
nals for each model of SyncServer.
997-01520-02 Rev.
"Network Ports - default
G2..........................................................................
STATUS Tab
settings" on page 171)
