EN | 28

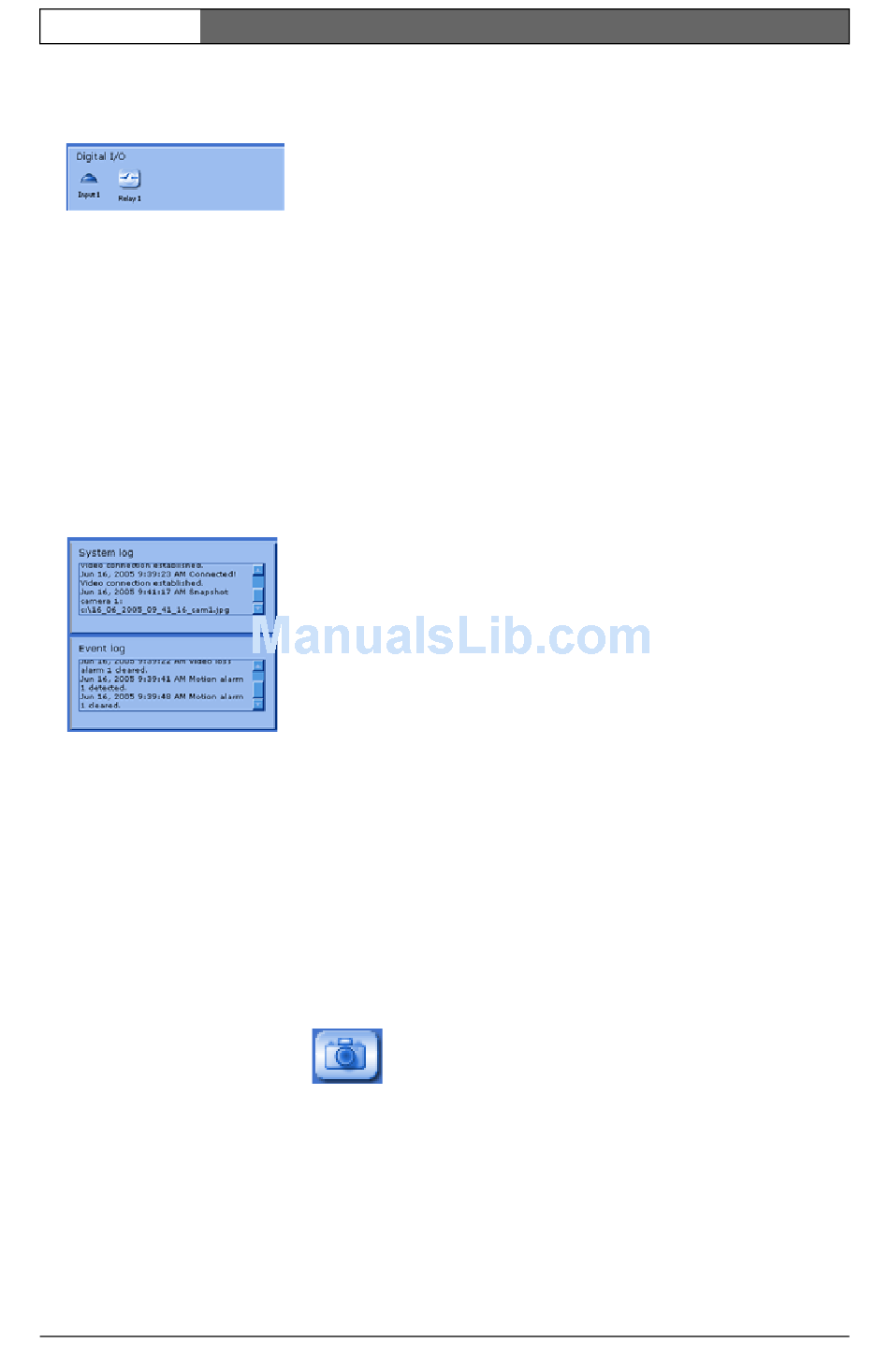

Digital I/O

Depending on the configuration of the unit, the alarm input and the relay output
are displayed next to the camera image. The alarm symbol is for information and
indicates the input status of the alarm input: Active 1 = Symbol is green, Active 0
= Symbol not lit. The relay on the camera allows you to operate a device (for
example a light or a door opener).
– To operate, click the relay symbol next to the video image. The symbol is red
when the relay is activated.

System log / Event log

The System log field contains information about the operating status of the
camera and the connection. These messages can be saved automatically in a file.
Events such as the triggering or end of alarms are shown in the Event log field.
These messages can be saved automatically in a file.

Saving snapshots

Individual images from the video sequence that is currently being shown on the
Livepage can be saved in JPEG format on the computer's hard drive.
– Click the camera icon
– The image is saved at a resolution of 704 × 576/480 pixels (4CIF). The
storage location depends on the configuration of the camera.

Recording video sequences

Sections of the video sequence that is currently being shown on the Livepage can
be saved on the computer's hard drive. The sequences are recorded at the
Dinion IP
to save single images.
Bosch Security Systems | 2006-05 | V2.0
| Installation Manual
