Iscsi Settings; Scan Iscsi Ip Address - Bosch Dinion IP NWC-0495 Installation Manual

EN | 54

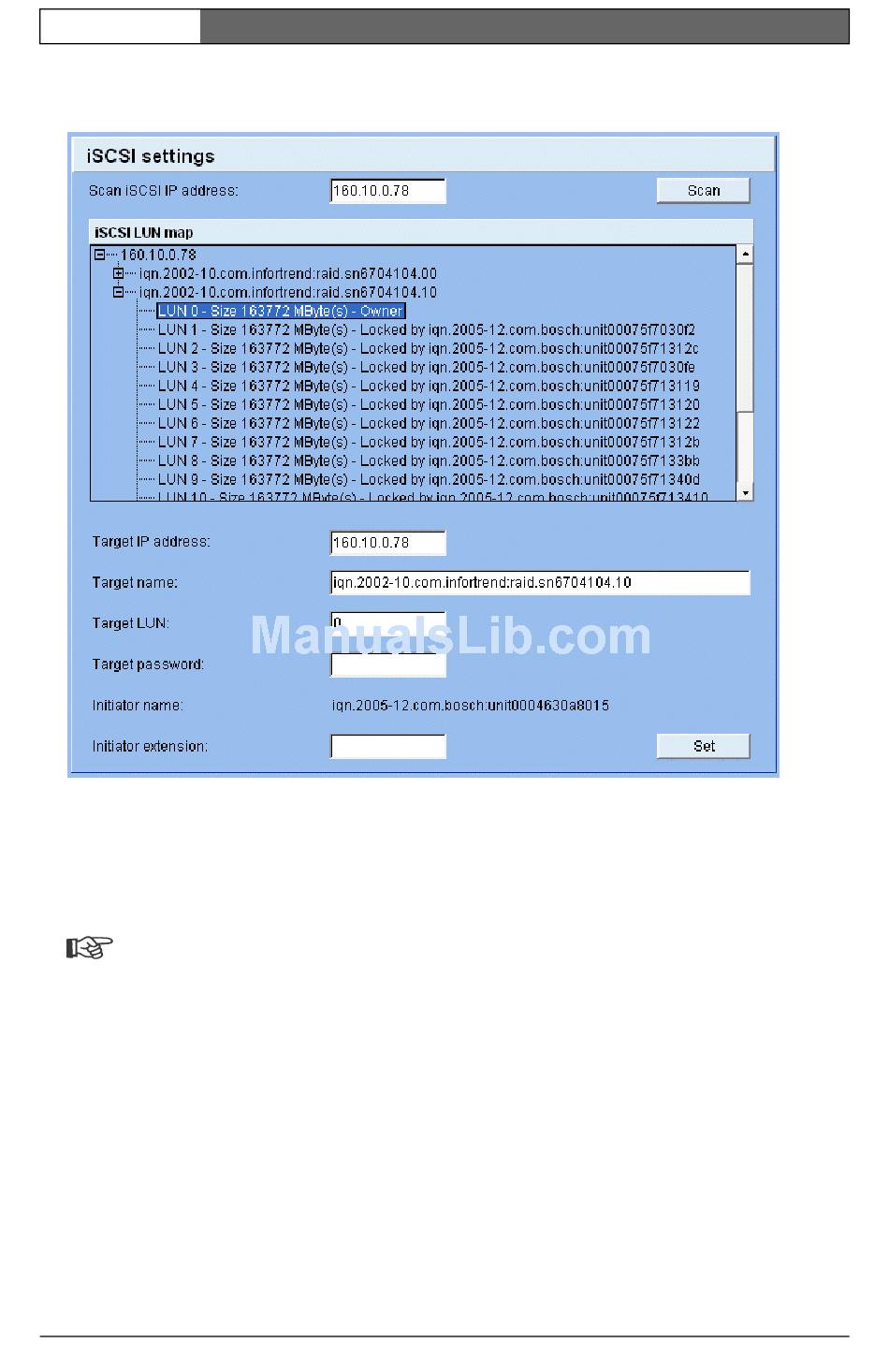

iSCSI settings

If you select type iSCSI server as the storage medium, you then need to set up a
connection to the desired iSCSI storage device and set the configuration
parameters.
Note
The storage device selected must adhere to the iSCSI specification, be
available on the network and be completely set up. Amongst other things,
it must have an IP address and be divided into logical drives (LUN).

Scan iSCSI IP address

• Enter the IP address of the required iSCSI server here.
• Click the Scan button. The connection to the IP address will be established.
The iSCSI LUN map field contains the corresponding logical drives.
Dinion IP
| Installation Manual
Bosch Security Systems | 2006-05 | V2.0
