EN | 44

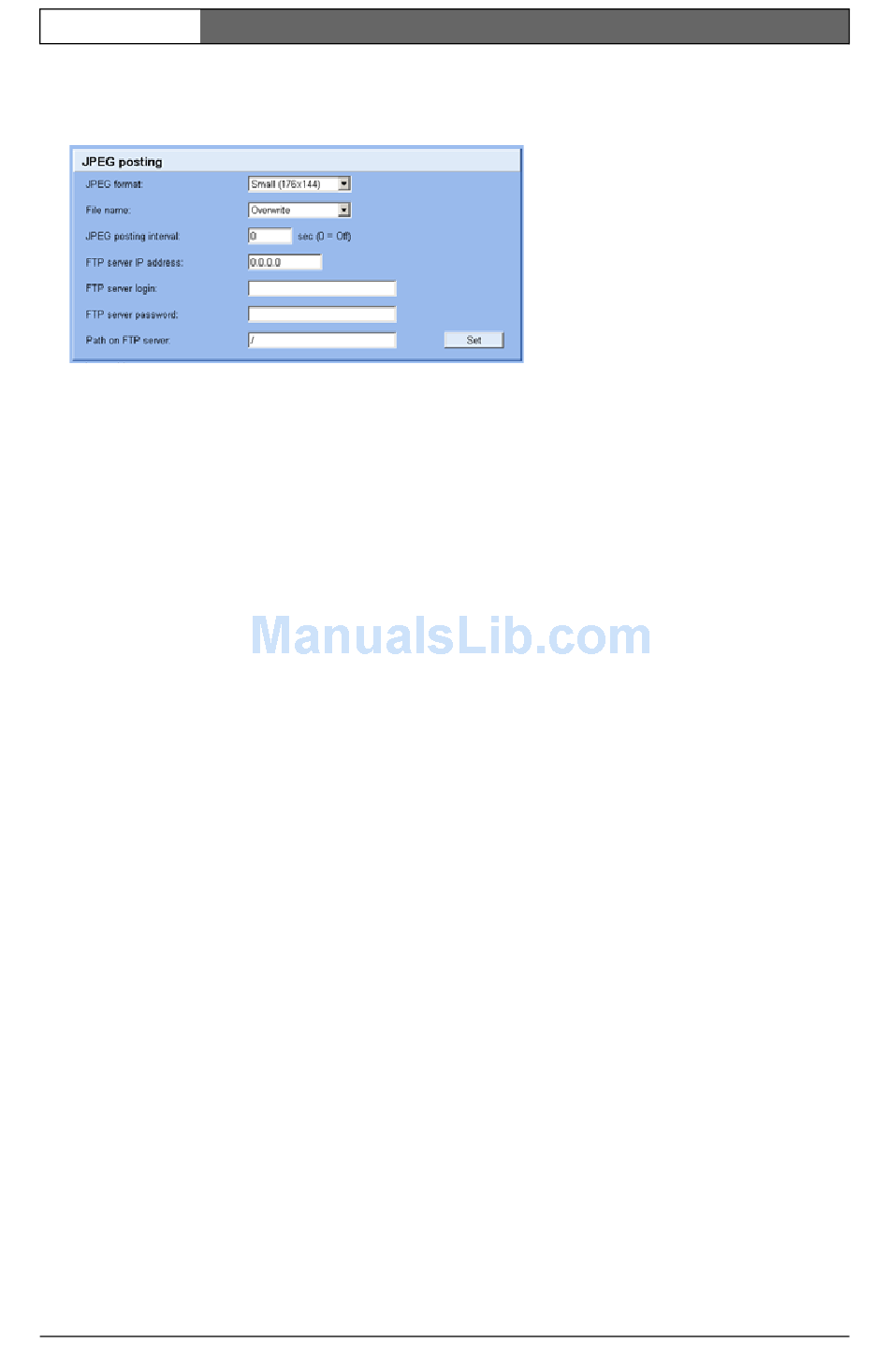

JPEG posting

You can save individual JPEG images on an FTP server at certain intervals. You
can then retrieve these images at a later date to reconstruct alarm events if
required.
JPEG format
Select the resolution you wish the JPEG images to have:
• Small 176 × 144 pixels (QCIF)
• Medium 352 × 288 pixels (CIF)
• Large 704 × 576 pixels (4CIF)
File name
You can select how file names will be created for the individual images which are
transmitted.
• Overwrite: The same file name is always used and any existing file will be
overwritten with the current file.
• Increment: A number from 000 to 255 is added to the file name and
automatically incremented by 1. When it reaches 255 it starts again from 000.
• Date/time suffix: The date and time are automatically added to the file
name. When setting this parameter, please ensure that the date and time of
the unit are always correctly set. Example: the file snap021606_124530.jpg
was stored on February 16, 2006 at 12.45 p.m. and 30 seconds.
JPEG posting interval
Enter the interval in seconds at which the images will be sent to an FTP server.
Enter zero if you do not want any images to be sent.
