16. Electrical Equipment

Light / Light Bulb

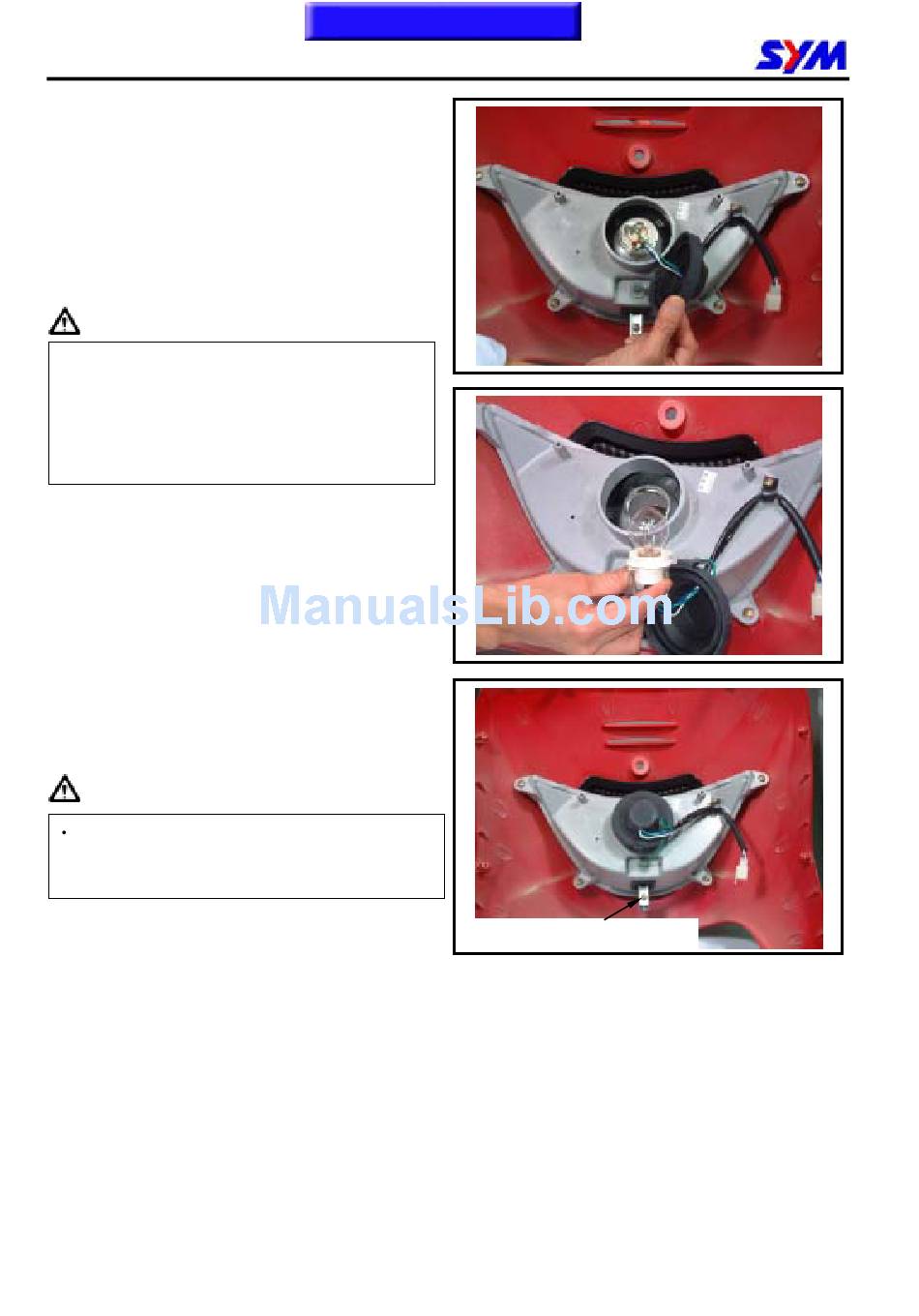

Headlight Bulb Replacement
Remove the front cover. (chapter 12, section 4)
Disconnect the headlight wire connector, and
then remove the rubber boot.
Press down the bulb spring locker and then
remove the locker with turning it in CCW motion.
Replace the bulb with new one if necessary.
Caution
Do not touch the bulb surface with fingers
•
because the bulb will create hot-spot so
that let it be burnt. It has to be package
with cloth or wear glove as installing.
Wipe the bulb with cloth to prevent from
•
damaged if the bulb be touched by hands.
Install the bulb in reverse order of removal.
Connect power to check if the bulb has been
installed properly after installation.
Please conduct the headlight beam adjustment
job if replace the headlight bulb.
The headlight beam adjustment
Loosen the adjustment screw located under the
headlight. Turn the screw to right or left to adjust
the high or low beam of headlight.
Caution
This outer cover of headlight is a fixed type
so that the lamp seat will be moved only
when adjusting.
