Configuration Manual
Ascom i62 VoWiFi Handset
8.
Handset Internal Web Administration Page
The internal web administration page for the handset makes it possible to:
• View general information about a handset
• Troubleshoot the VoWiFi System.
• View statistics
8.1
Access the Handset´s Internal Web Administration page
In a web browser, enter the handset´s IP address to access the internal web administration
page for the handset. The IP address can be found in the handset´s menu (Settings >Device
info >Network info).
8.1.1
General View
In the "System" tab, the following information is shown:
• Software version
• MAC address
• SNTP server
• Local time
• Uptime
• License information
• Network information
• VoIP information
• SIP proxy/H.323 gatekeeper IP address
• End User License Agreement (EULA).

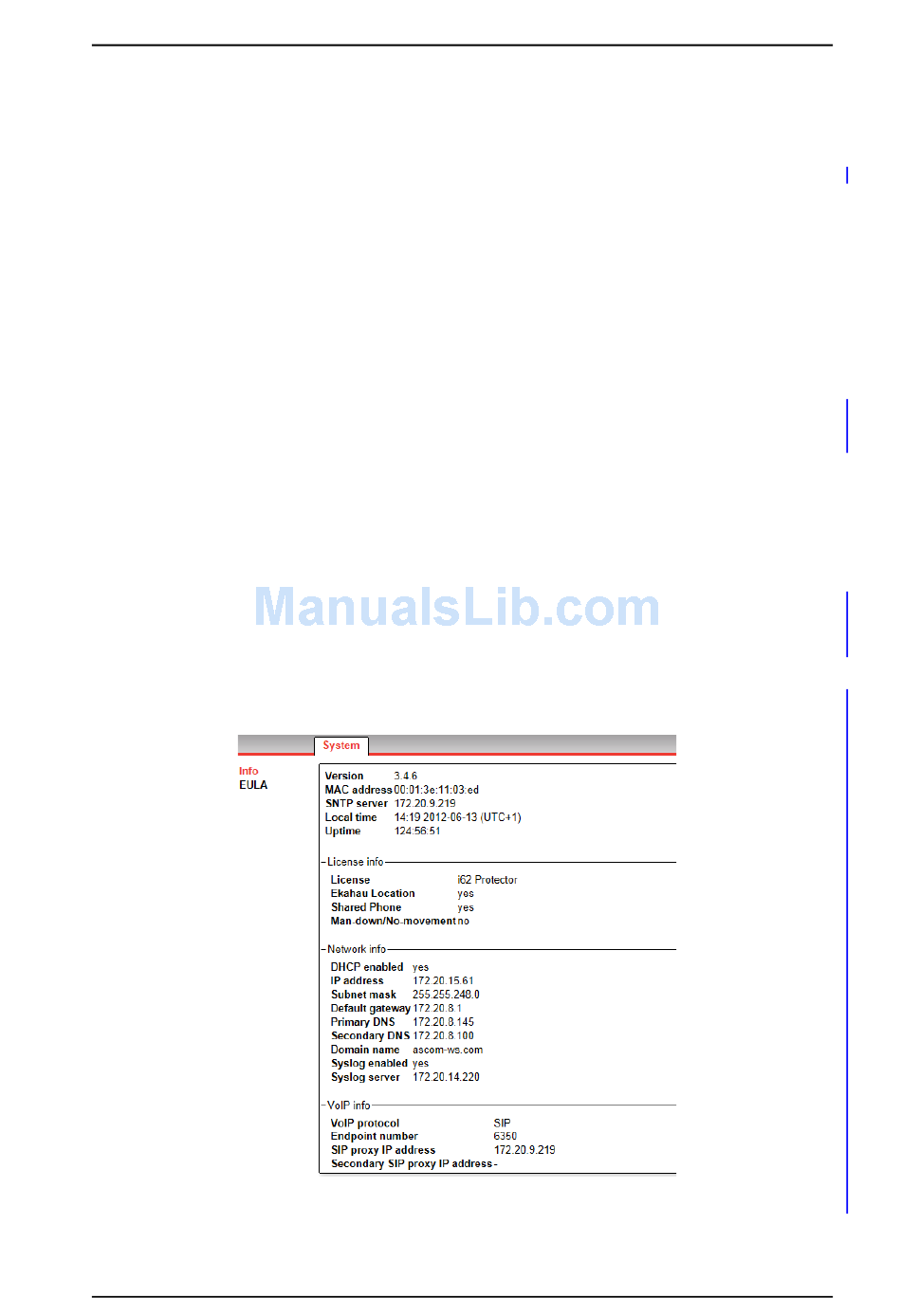

Figure 8. Internal Web Administration Page
Enter administration user name and administration password to access further pages.
20 June 2012 / Ver. E
8. Handset Internal Web
TD 92675EN
61
Hide quick links:
Advertisement
Table of Contents
Troubleshooting
Need help?
Do you have a question about the i62 and is the answer not in the manual?
Questions and answers
no access solving
To solve access issues with the Ascom i62, follow these steps:
1. Login to the Device:
- Enter the phone's IP address in the browser.
- Click the login link in the top right corner.
- Enter the username “admin” and password “changeme”.
- Click OK.
2. Check Logs and Errors:
- Navigate to the Troubleshoot tab.
- Review the Syslog for real-time handset actions.
- Check the Errorlog for stored errors and download it if needed.
3. Review WLAN and Voice Statistics:
- Open the Statistics tab to check call and WLAN connectivity details.
4. Wi-Fi Configuration Adjustments:
- Ensure consistent transmission power across all APs.
- Avoid large power variations set by ARM.
- Match AP channels with the i62 configuration.
- If connectivity is intermittent, test with one AP first, then expand.
5. SSID Profile Optimization:
- Use a clean SSID profile and apply optimizations step by step.
- Observe behavior after each change to identify potential issues.
If the issue persists, provide logs to Ascom support for further analysis.
