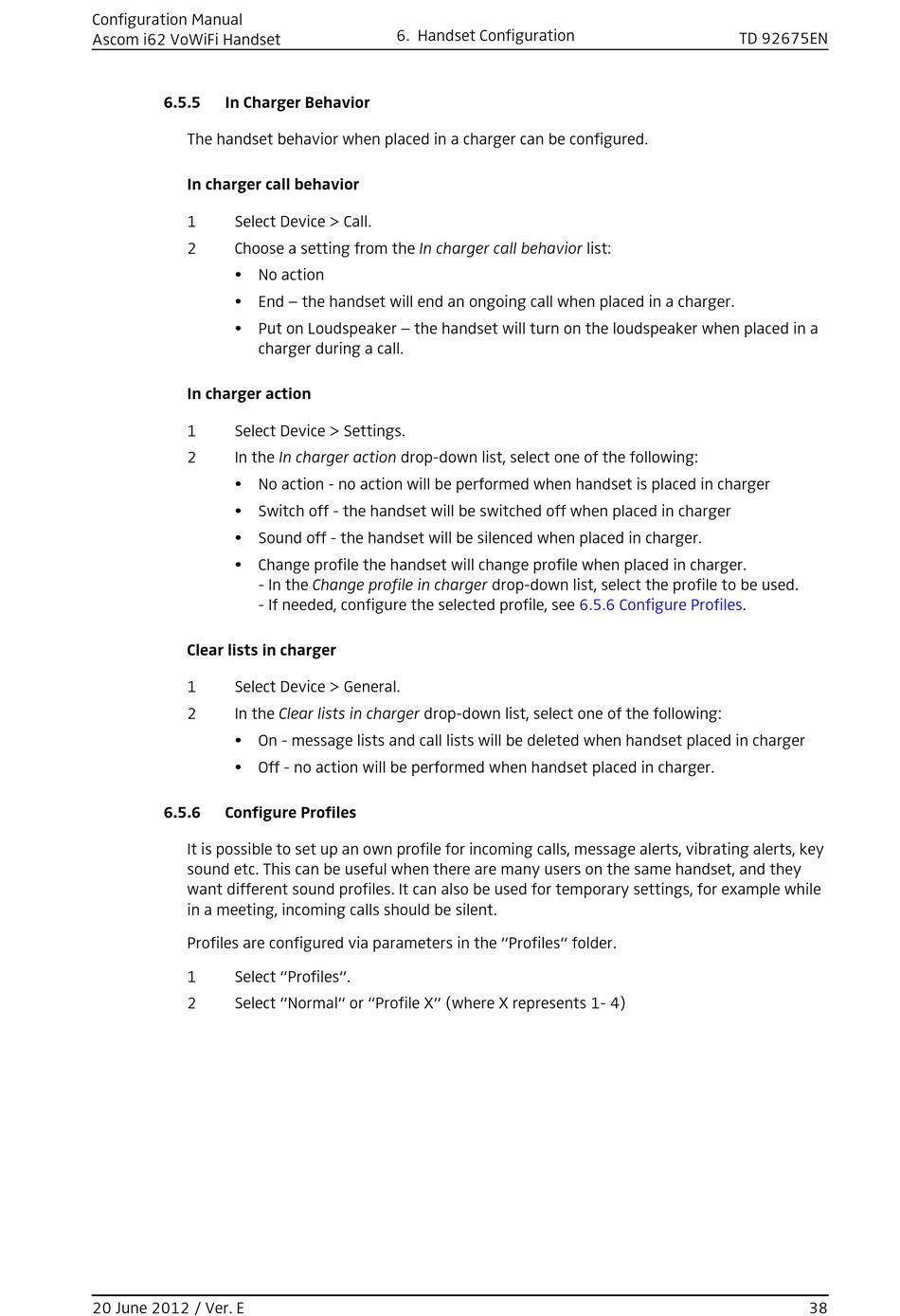

Configuration Manual
Ascom i62 VoWiFi Handset
6.5.5
In Charger Behavior
The handset behavior when placed in a charger can be configured.
In charger call behavior
1
Select Device > Call.
2
Choose a setting from the In charger call behavior list:
• No action
• End – the handset will end an ongoing call when placed in a charger.
• Put on Loudspeaker – the handset will turn on the loudspeaker when placed in a
charger during a call.
In charger action
1
Select Device > Settings.
2
In the In charger action drop-down list, select one of the following:
• No action - no action will be performed when handset is placed in charger
• Switch off - the handset will be switched off when placed in charger
• Sound off - the handset will be silenced when placed in charger.
• Change profile the handset will change profile when placed in charger.
- In the Change profile in charger drop-down list, select the profile to be used.
- If needed, configure the selected profile, see
Clear lists in charger
1
Select Device > General.
2
In the Clear lists in charger drop-down list, select one of the following:
• On - message lists and call lists will be deleted when handset placed in charger
• Off - no action will be performed when handset placed in charger.
6.5.6
Configure Profiles
It is possible to set up an own profile for incoming calls, message alerts, vibrating alerts, key
sound etc. This can be useful when there are many users on the same handset, and they
want different sound profiles. It can also be used for temporary settings, for example while
in a meeting, incoming calls should be silent.
Profiles are configured via parameters in the "Profiles" folder.
1
Select "Profiles".
2
Select "Normal" or "Profile X" (where X represents 1- 4)
20 June 2012 / Ver. E
6. Handset Configuration
TD 92675EN
6.5.6 Configure
Profiles.
38
