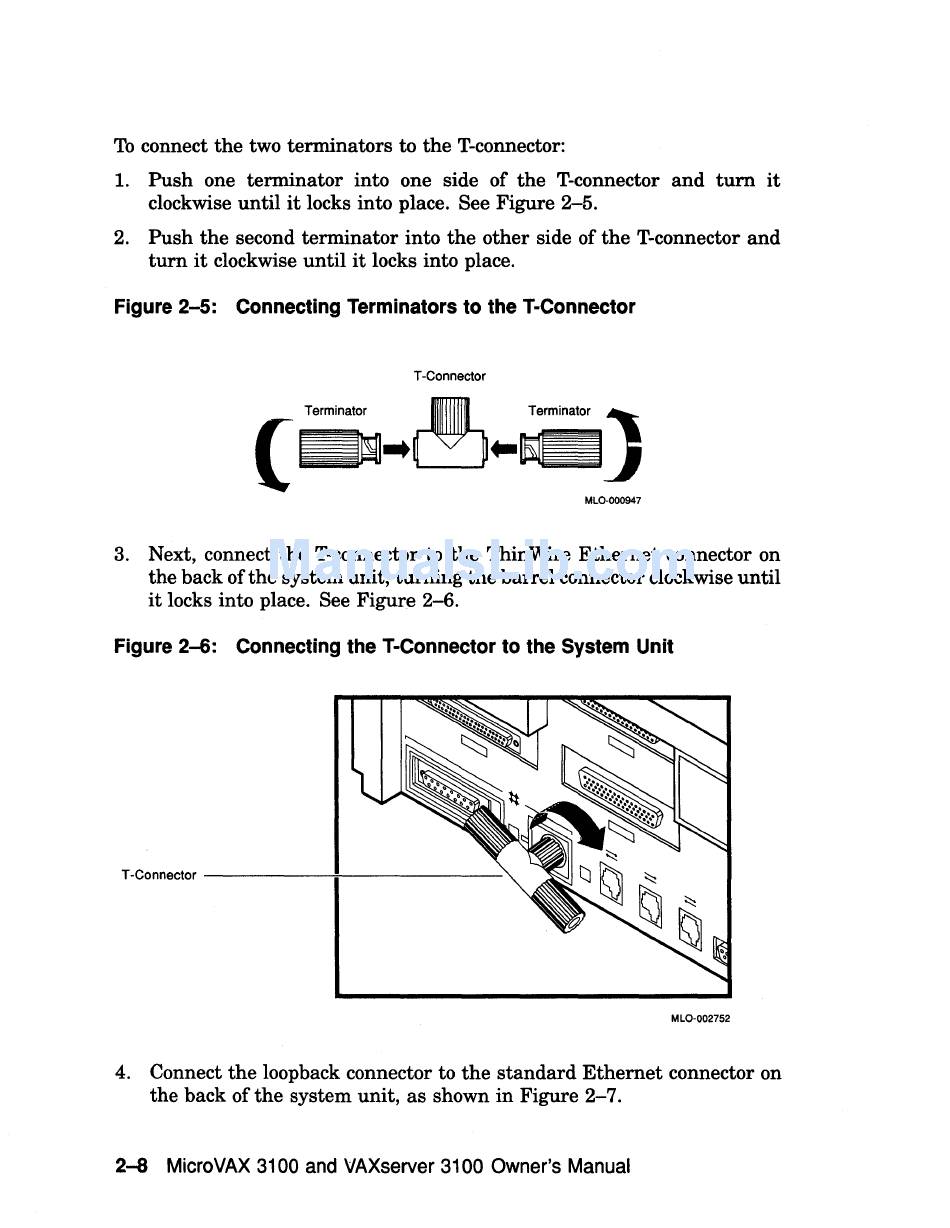

Connecting Terminators To The T-Connector; Connecting The T-Connector To The System Unit - DEC MicroVAX 3100 Owner's Manual

To connect the two terminators to the T-connector:
1.
Push one terminator into one side of the T-connector and tum it
clockwise until it locks into place. See Figure 2-5.
2. Push the second terminator into the other side of the T-connector and
turn it clockwise until it locks into place.
Figure 2-5: Connecting Terminators to the T-Connector
T -Connector
Terminator
JmL
Terminator
J
(I
I~
..
~
..
~I
I
MLO-000947
3. Next, connect the T-connector to the ThinWire Ethernet connector on
the back of the system unit, turning the barrel connector clockwise until
it locks into place. See Figure 2-6.
Figure 2-6: Connecting the T-Connector to the System Unit
T-Connector
----------=--------
MLO-002752
4. Connect the loopback connector to the standard Ethernet connector on
the back of the system unit, as shown in Figure 2-7.
2-8 MicroVAX 3100 and VAXserver 3100 Owner's Manual
