Levelling Step

Step levelling turns step relative to machine to keep it horizontal and provide stable work
platform for the operator.
• Under normal condition, keep step levelling to [AUTO].
• Pinch hazard: beware of pinch spots when levelling step manually. Keep fingers
or hands away of pinch spots.

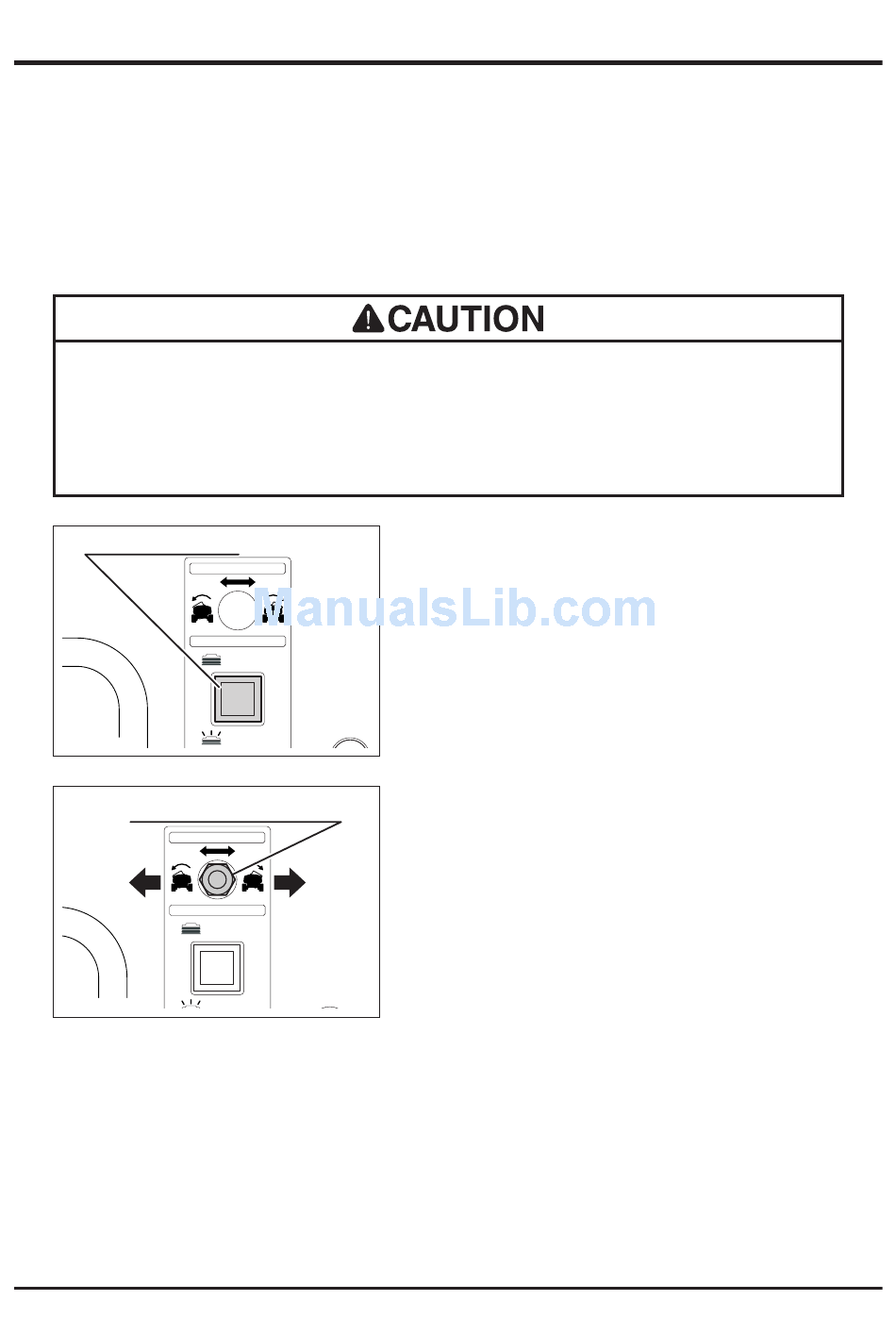

Step Leveling Switch
Manual Step Leveling Switch
Left
5116M-0403-050E
Manual Step Leveling Switch
Manual Step Leveling Switch
Left
Left
Step Leveling Switch
5116M-0403-060E
Operation
Right
Step Leveling Switch
Black out
Manual
Light on
Automatic
Right
Right
Black out
Manual
Light on
1. Automatic step levelling switch activates or
deactivates automatic step levelling function.
When activated, switch illuminates.
Manual Levelling
2. When automatic levelling is deactivated,
tilting manual leveling switch to the right
turns step to the right (clockwise, as seen
from behind), and tilting it to the left turns
step to the left (counter-clockwise).
