CanyCom CG431 Operator's Manual page 37

4
5116M-0403-020E
Implement Direction Switch
Implement Aux. Transmission
Direction Switch
HI
Normal
LO
Reverse
5116M-0403-030E
Implement Switch
5116M-0402-021E

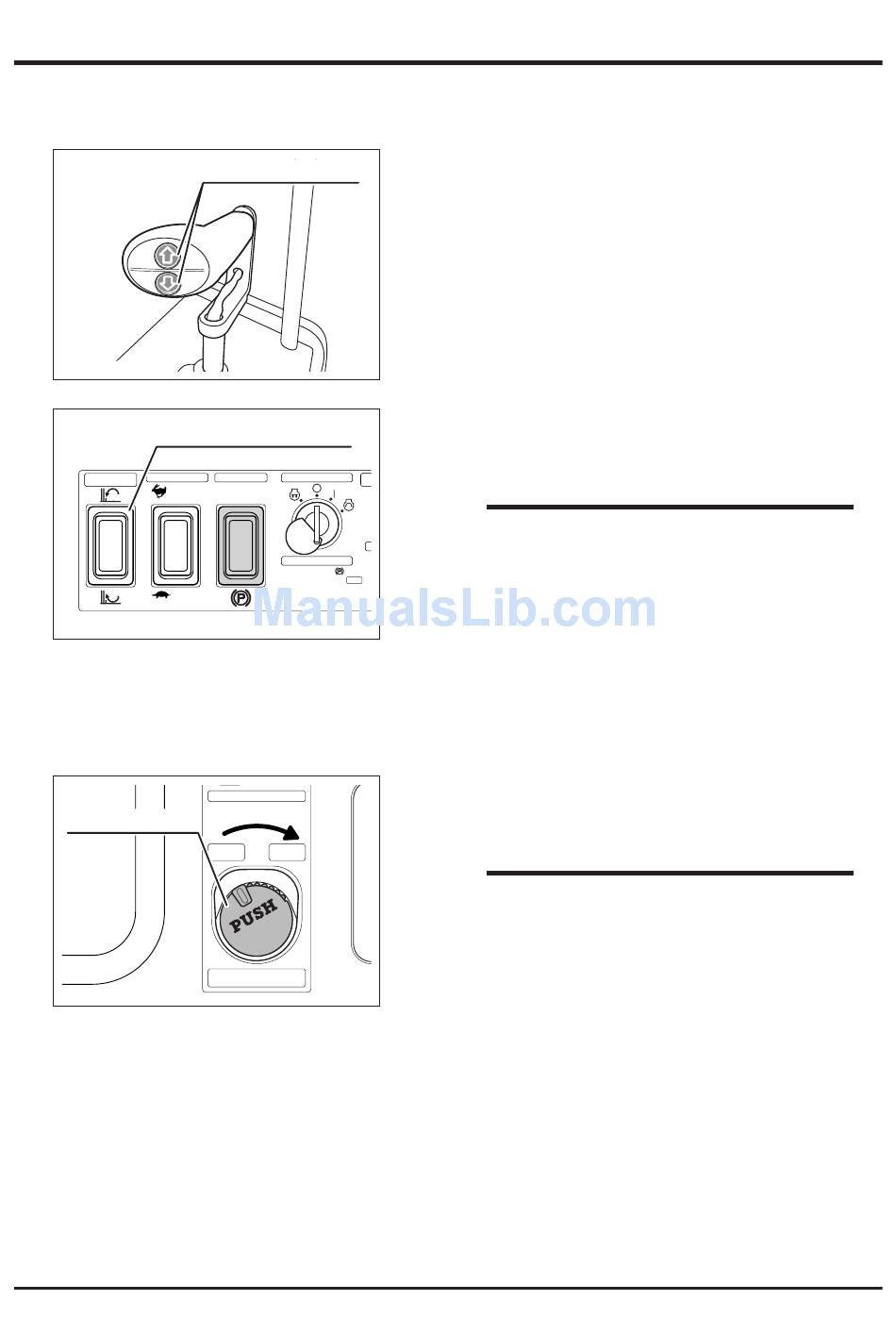

Operation
Implement Lift Switch
Parking Brake Main Switch
Imp
Tra
Drive
Cen
Start
1. Parking Brake
2. Imprement Switch
STOP
3. Safety Switch "ON"
4. Start Engine
Automatic
Implement Switch
Press and turn
Stop
On
Push to stop
3. Use implement lift switch to adjust the
implement height.
4. Use rotation direction switch to choose the
direction of implement rotation.
NOTE
• Reverse rotation can be used only when
implement is not translated to the side.
If implement is translated and rotation
direction switch is in reverse, implement
stops.
• When something gets tangled to implement,
changing the rotating direction back and
forth may help untangle.
5. Push and turn implement switch to [RUN].
6. Drive machine forward to cut.
NOTE
• If load is high, reduce traveling speed or
work in stages at different cutting heights.
7. To stop implement, press implement switch;
it automatically returns to [stop].
-28-
