Translating Implement

With this translation function, the entire implement can be translated to the right by 500mm
at the maximum, allowing working on the edge of ditch or bank.
• Always make certain of the safety of your surroundings before translating
implement.
• Always lift up implement when translating. Translating implement while it is
resting on the ground may cause damage.

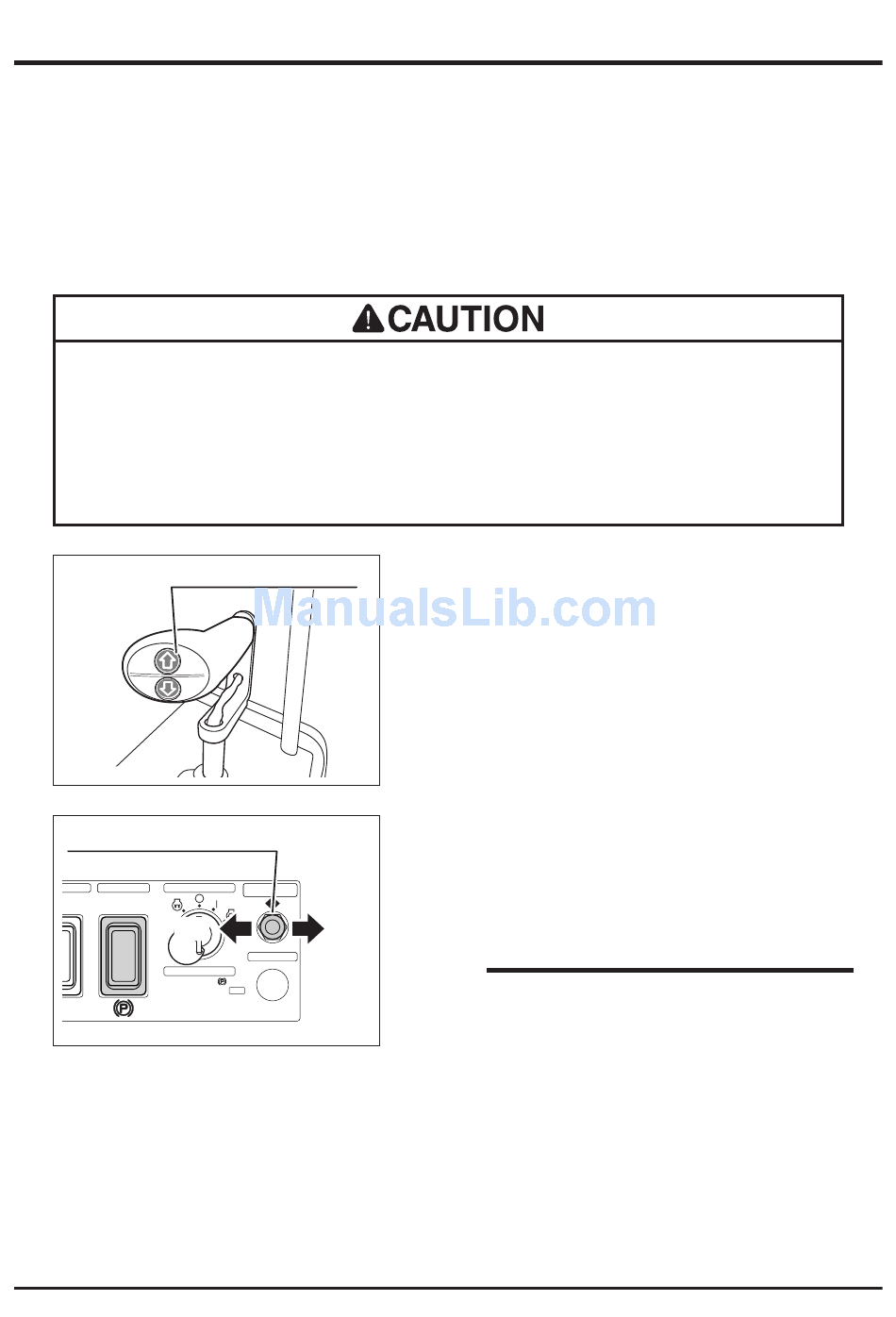

Implement Lift Switch(Up)
5116M-0402-110E
Implement Translation Switch
Main Switch
smission Parking Brake
I
Drive
Left
Start
1. Parking Brake
2. Imprement Switch
3. Safety Switch "ON"
O
4. Start Engine
5116M-0403-040E
Operation
Implement
Translation Switch
Center Right
Right
Horn
STOP
1. Press implement lift switch [UP] to lift
implement off the ground.
2. Tilt implement translation switch to [Right] to
move implement to the right.
3. Tilt translation switch to [Center] to move it
back to the original position.
NOTE
• Implement does not translate when it is
running.
• When rotating direction is set in reverse,
implement can only translate to about 4 in.
to the right.
• When implement is translated and then
direction switch is set in reverse, implement
does not run.
