3. Operating Controls

Terminal Block ( From Left To Right )
13
AUX OUT Receiver's Auxiliary Output
V+ Accessory Supply
SB3 Third Safety Beam Input
SB2 Second Safety Beam Input
SB1 First Safety Beam Input
0V Common For Safety Beams
0V Common Terminal For Control Inputs
FIRE N/O , N/C Input Terminal
GPI N/O Input Terminal
OPN N/O , N/C Input Terminal
STP N/O , N/C Input Terminal
CLS N/O Input Terminal
15
14
13

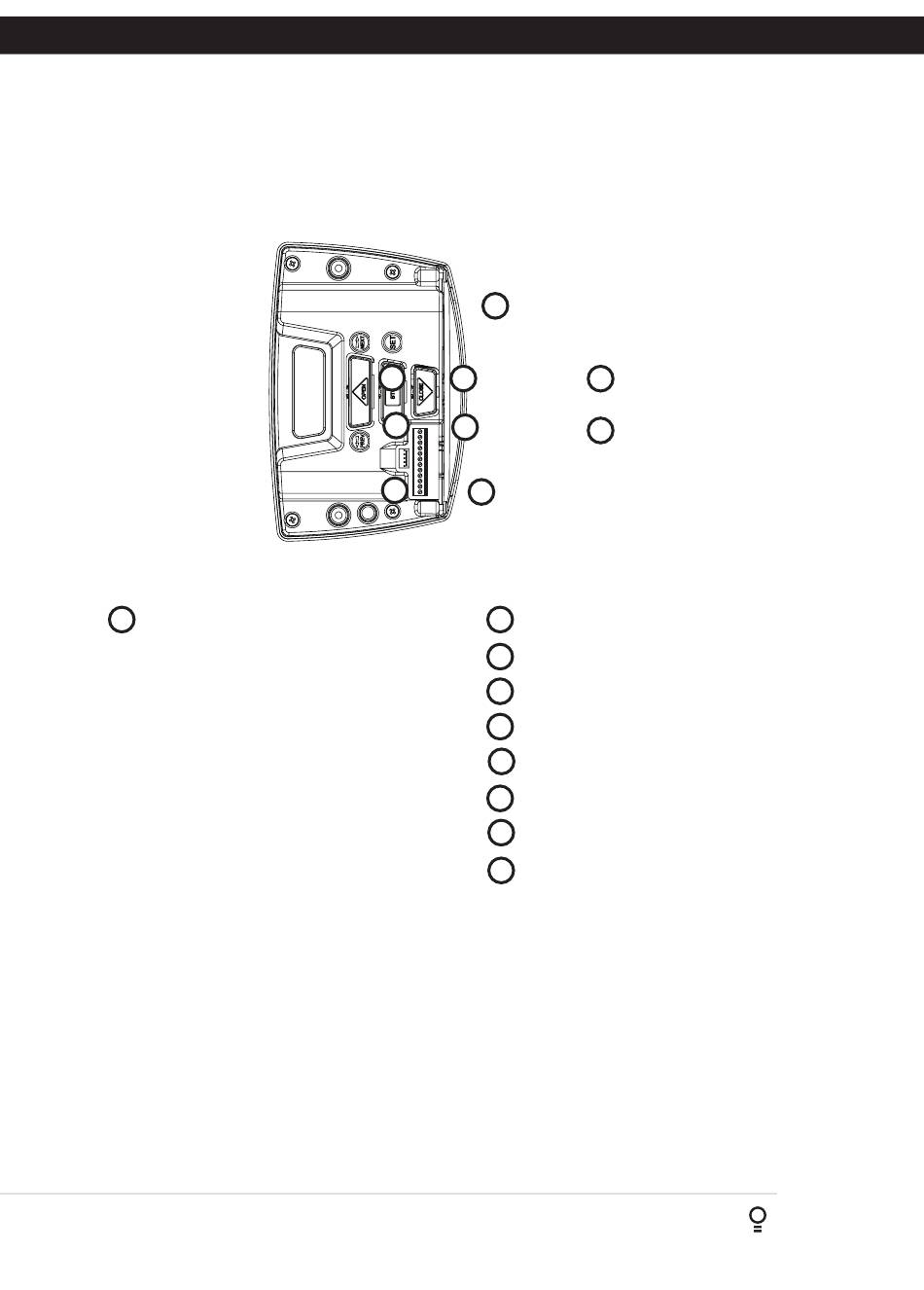

Fig 3.1
16
18 17
19
20
21
Programmer PG-3 Input
14
Console Previous Button
15
Liquid Crystal Display
16
Console Next Button
17
Console Open Button
18
Console Stop Button
19
Console Set Button
20
Console Close Button
21
