4. Set Up Requirements

4.1 Kit Contents

ITEM DESCRIPTION
1 GDO-10V3L2 POWER DRIVE UNIT
2 COMMUNICATION CABLE
3 WALL CONTROL UNIT L2
4 TRIO-CODE 4B PTX-5 TRANSMITTER
5 LOCKING BAR COVER
6 FORK EXTENSION
ACCESSORY PACK (61480)
7 CLIP CABLE CLIPSAL NO 564/1
8 SCREW-EYE
9 SELF TAPPING SCREW 6 X 25 (1")
10 PLASTIC WALL PLUG 6.9 X 25 (1")

4.2 Choosing your Set up

The GDO-10V3L2 can be set up in various ways and therefore may
require additional items. Common Set ups are as follows;
Set Up Items Required
Dead Man Set Up Drive Unit, console
Automated Set Up Drive Unit, console and transmitter
Automated Set Up Drive Unit, console, transmitter and safety beams
with Safety Beams (optional extra)
6 GDO-10V3L2 Toro
QTY ORDER
1
1
1
2
2
6
5
2
2
4
Owner Installation Instructions
™
CODE
60233
61909
61565
61161
71040
61486
72845
10595
10672
11152

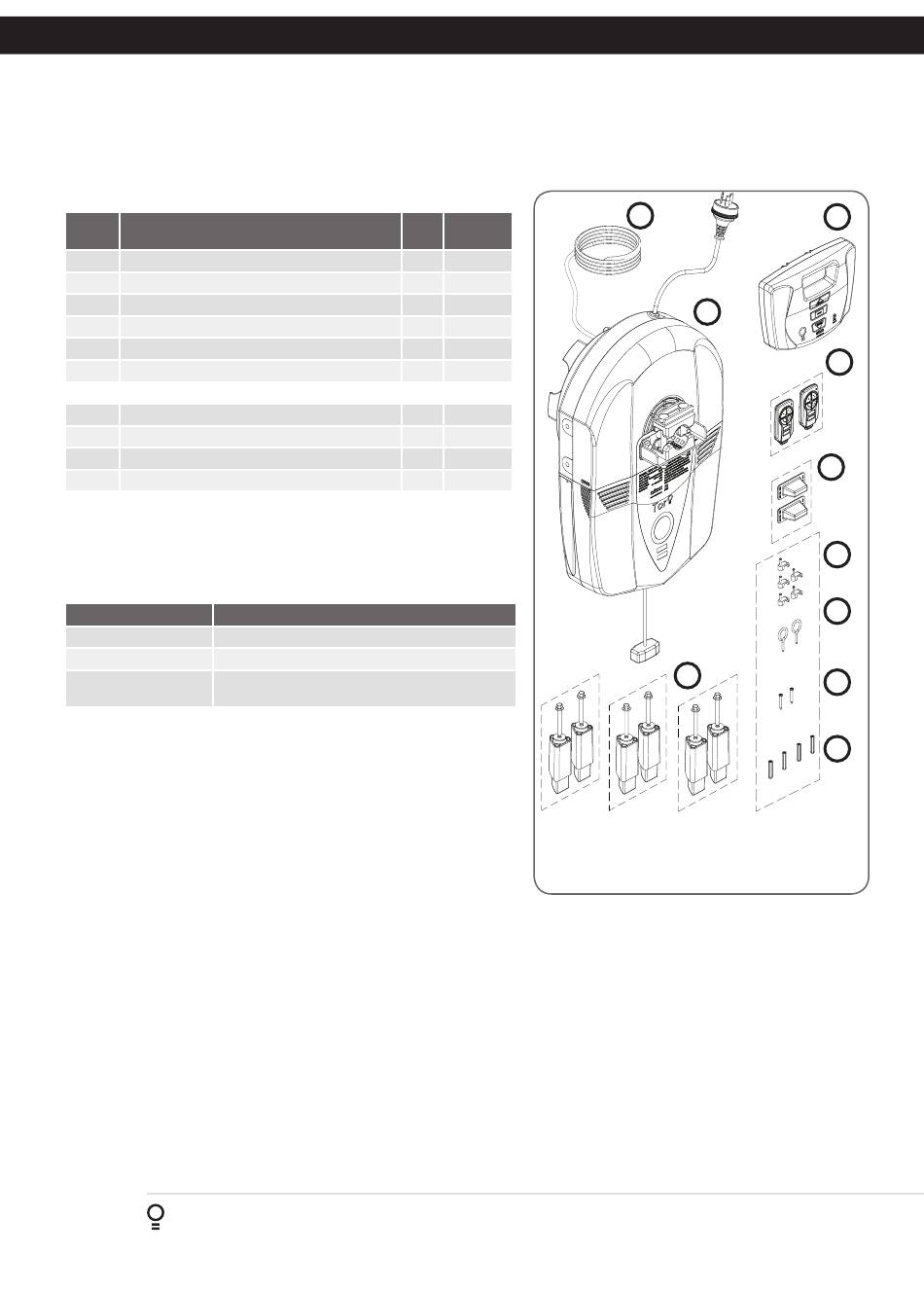

Fig 4.1
2
1
6
3
4
F
5
7
8
9
F
10
F
