Appendix

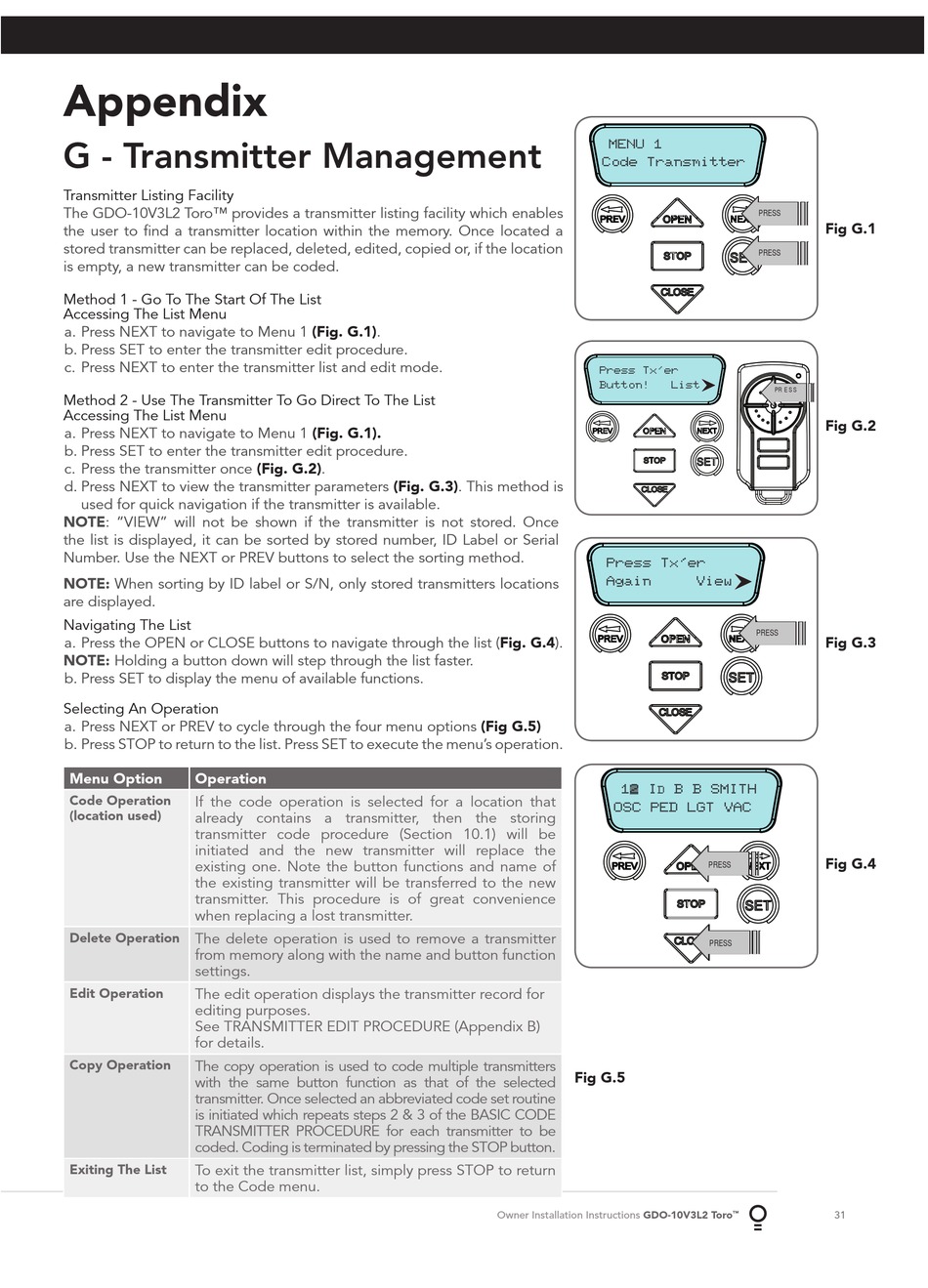

G - Transmitter Management

Transmitter Listing Facility
The GDO-10V3L2 Toro™ provides a transmitter listing facility which enables
the user to find a transmitter location within the memory. Once located a
stored transmitter can be replaced, deleted, edited, copied or, if the location
is empty, a new transmitter can be coded.
Method 1 - Go To The Start Of The List
Accessing The List Menu
a. Press NEXT to navigate to Menu 1
b. Press SET to enter the transmitter edit procedure.
c. Press NEXT to enter the transmitter list and edit mode.
Method 2 - Use The Transmitter To Go Direct To The List
Accessing The List Menu
a. Press NEXT to navigate to Menu 1
b. Press SET to enter the transmitter edit procedure.
c. Press the transmitter once
d. Press NEXT to view the transmitter parameters
used for quick navigation if the transmitter is available.
NOTE: "VIEW" will not be shown if the transmitter is not stored. Once
the list is displayed, it can be sorted by stored number, ID Label or Serial
Number. Use the NEXT or PREV buttons to select the sorting method.
NOTE: When sorting by ID label or S/N, only stored transmitters locations
are displayed.
Navigating The List
a. Press the OPEN or CLOSE buttons to navigate through the list
NOTE: Holding a button down will step through the list faster.
b. Press SET to display the menu of available functions.
Selecting An Operation
a. Press NEXT or PREV to cycle through the four menu options
b. Press STOP to return to the list. Press SET to execute the menu's operation.
Menu Option Operation
Code Operation If the code operation is selected for a location that
(location used)
already contains a transmitter, then the storing
transmitter code procedure (Section 10.1) will be
initiated and the new transmitter will replace the
existing one. Note the button functions and name of
the existing transmitter will be transferred to the new
transmitter. This procedure is of great convenience
when replacing a lost transmitter.
Delete Operation The delete operation is used to remove a transmitter
from memory along with the name and button function
settings.
Edit Operation The edit operation displays the transmitter record for
editing purposes.
See TRANSMITTER EDIT PROCEDURE (Appendix B)
for details.
Copy Operation The copy operation is used to code multiple transmitters
with the same button function as that of the selected
transmitter. Once selected an abbreviated code set routine
is initiated which repeats steps 2 & 3 of the BASIC CODE
TRANSMITTER PROCEDURE for each transmitter to be
coded. Coding is terminated by pressing the STOP button.
Exiting The List To exit the transmitter list, simply press STOP to return
to the Code menu.
(Fig. G.1).
(Fig. G.1).
(Fig. G.2).
(Fig. G.3). This method is
MENU 1
Code Transmitter
Press Tx'er
Button!
Press Tx'er
Again
(Fig. G.4).
(Fig G.5)
12 I
OSC PED LGT VAC
Fig G.5
Owner Installation Instructions GDO-10V3L2 Toro
PRESS
Fig G.1
PRESS
List
PR E S S
Fig G.2
View
PRESS
Fig G.3
B B SMITH
D
Fig G.4
PRESS
PRESS
™
31
