5. Pre-Installation Requirements

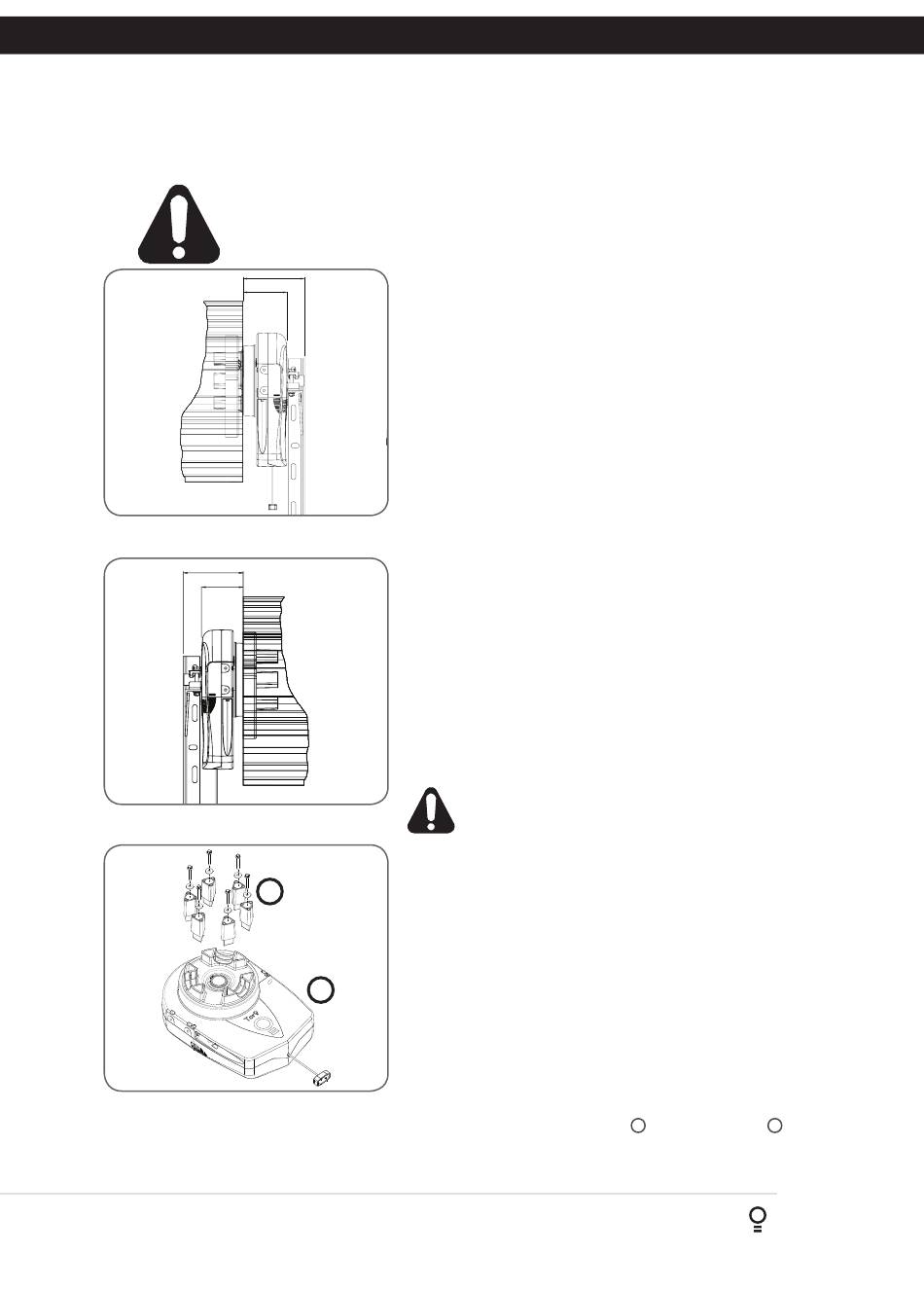

Fig 5.1
182
127
Fig 5.2
Fig 5.3
IMPORTANT SAFETY INSTRUCTIONS FOR INSTALLATION
Warning: Incorrect installation can lead to severe injury.
Follow ALL installation instructions.
185
140
6
1
NOTE: Planetary chain equipment must be removed from the door
prior to installation of GDO-10V3L2 Toro™.

5.1 Door Operation

The door must be in good operating condition. The maximum effort
to move the door up or down, from stationary, should not exceed 150
Newtons (15 kg force) at the bottom rail.
Lift the door to about halfway. When released, the door should stay in
place supported entirely by its springs. Raise and lower the door to check
for binding or sticking.
The door may need to be serviced to meet these requirements – refer
to the door manufacturer's servicing instructions or contact an authorised
dealer.

5.2 Unsuitable Door Types

The fitting of an opener to doors with removable mullions or doors
incorporating a wicket door is not recommended.

5.3 Position

The opener can be installed on either the right or left hand side of the
door (when viewed from inside the garage). The opener is factory set for
right hand side installation.
This opener must be installed in a dry position that is protected from the
weather. Moisture or corrosion damage is not covered by the Warranty.

5.4 Power Supply

Properly earthed 3 pin single-phase power is required.
WARNING! Using a portable power generator is not
recommended. The opener may appear to malfunction
due to spikes, surges and fluctuations in the generated
voltage.

5.5 Sideroom

Sideroom For Right Hand Side Installation
The minimum sideroom required from the edge of the door curtain is 140
mm to the inside of the door bracket when the opener is mounted on the
door bracket (Fig. 5.1).
NOTE: The door axle diameter must not exceed 35mm.
• Sideroom For Left Hand Side Installation
The minimum sideroom required from the edge of the door curtain is 127
mm to the inside of the door bracket when the opener is mounted on the
(Fig. 5.2).
door bracket

5.6 Forks

Attach and secure all six (6) forks
supplied (Fig. 5.3). All the six (6) forks must be used and properly engaged
into the drum of the door for the opener to work effectively.
Owner Installation Instructions
to the drive unit with screws
6 1
