NTI ENVIROMUX TEMPERATURE/HUMIDITY SENSOR ATTACHMENT

INTRODUCTION

Many different sensors can be connected to the ENVIROMUX Series Enterprise Environment Monitoring Systems. Series models

covered by this manual include ENVIROMUX-SEMS-16U and ENVIROMUX-16D/5D/2D. A complete listing of available sensors

and accessories can be found at

http://www.networktechinc.com/enviro-rems.html

for the ENVIROMUX-SEMS-16U,

http://www.networktechinc.com/environment-monitor-16d.html

for the ENVIROMUX-16D,

http://www.networktechinc.com/environment-monitor-5d.html

for the ENVIROMUX-5D,

http://www.networktechinc.com/environment-monitor-2d.html

for the ENVIROMUX-2D, and Manuals for each Environment

Monitoring System covering installation and configuration for all features can also be found at these websites.

This manual is only provided to instruct how to install the ENVIROMUX temperature and humidity sensors to these systems.

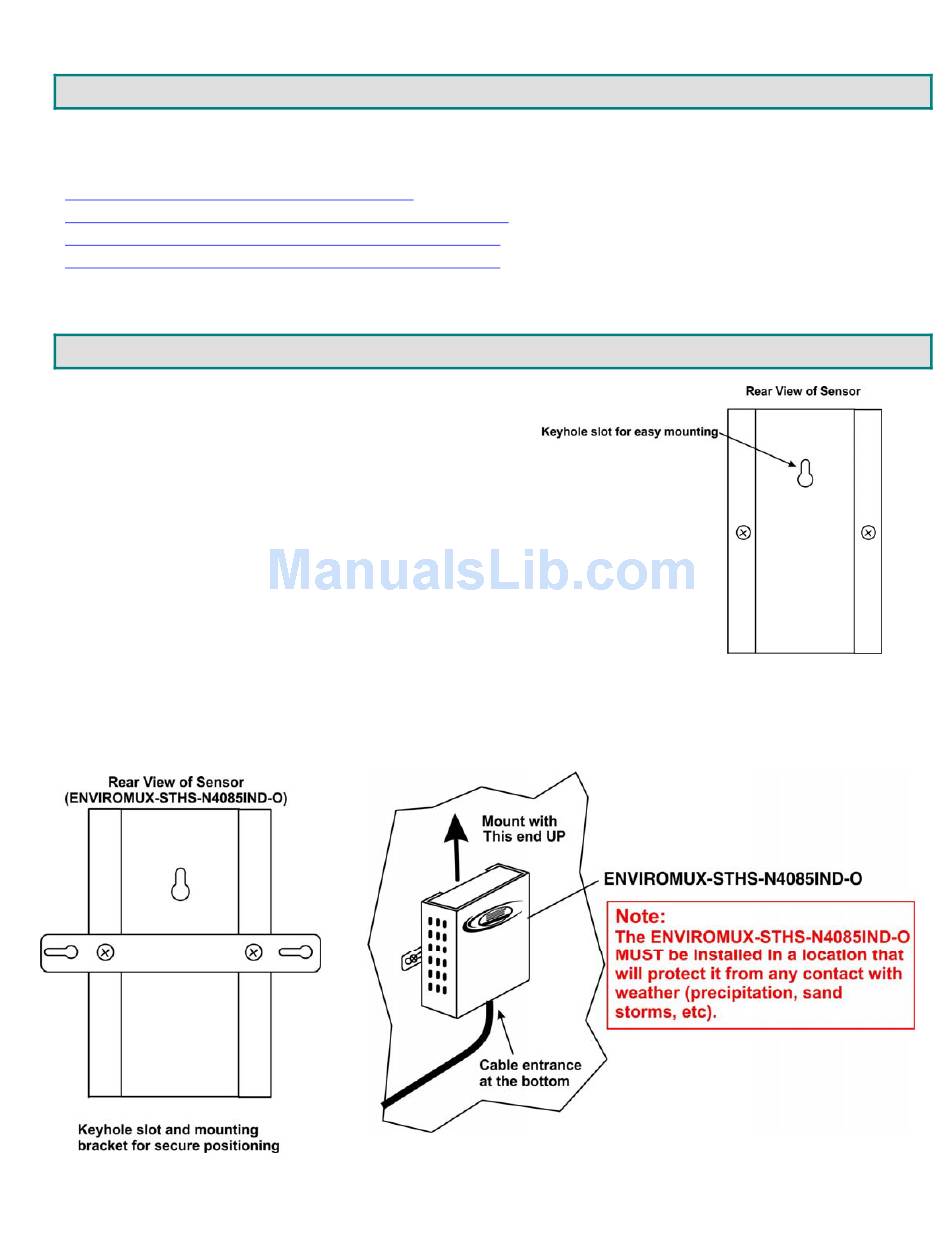

Most of the ENVIROMUX Temperature and Humidity sensors are

intended for indoor use only. These sensors can be mounting in any

position but include a keyhole slot on the back to enable quick wall-

mounting if desired.

The ENVIROMUX-STHS-N4085IND-O is intended for outdoor use and provides additional mounting hardware to make mounting

on a greater variety of surfaces easier to do. The mounting bracket provides additional holes for two screws to enable secure

positioning.

When installed, the cable entrance to the sensor should be at the bottom of the sensor housing.
