CAPA848 Capa Board

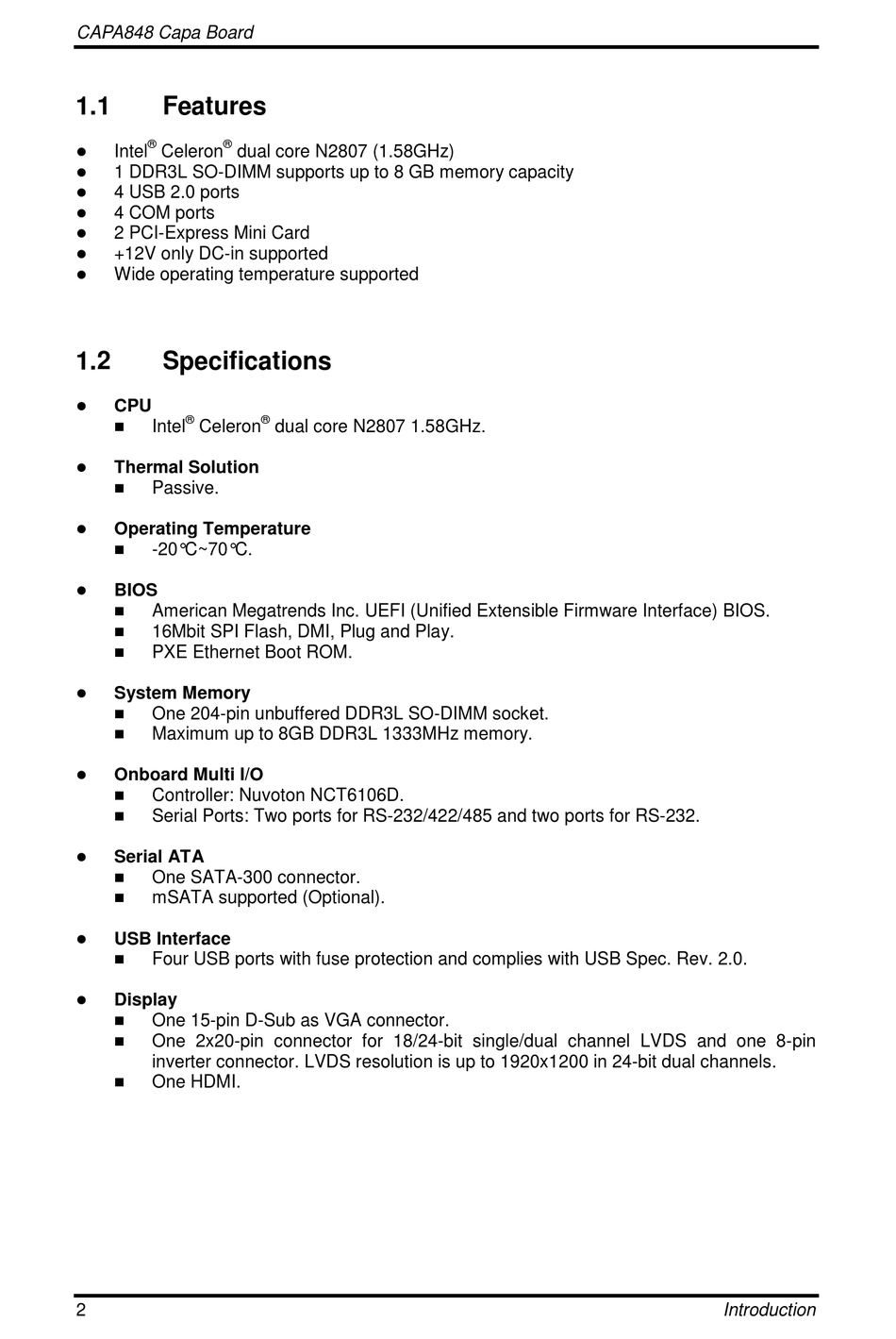

1.1

Features

® ®
 Intel Celeron dual core N2807 (1.58GHz)
 1 DDR3L SO-DIMM supports up to 8 GB memory capacity
 4 USB 2.0 ports
 4 COM ports
 2 PCI-Express Mini Card

+12V only DC-in supported
 Wide operating temperature supported
1.2

Specifications

 CPU
®
 Intel Celeron

Thermal Solution
 Passive.
 Operating Temperature
 -20°C~70°C.
 BIOS

American Megatrends Inc. UEFI (Unified Extensible Firmware Interface) BIOS.
 16Mbit SPI Flash, DMI, Plug and Play.
 PXE Ethernet Boot ROM.
 System Memory
 One 204-pin unbuffered DDR3L SO-DIMM socket.
 Maximum up to 8GB DDR3L 1333MHz memory.
 Onboard Multi I/O
 Controller: Nuvoton NCT6106D.
 Serial Ports: Two ports for RS-232/422/485 and two ports for RS-232.

Serial ATA
 One SATA-300 connector.

mSATA supported (Optional).
 USB Interface
 Four USB ports with fuse protection and complies with USB Spec. Rev. 2.0.

Display

One 15-pin D-Sub as VGA connector.

One 2x20-pin connector for 18/24-bit single/dual channel LVDS and one 8-pin
inverter connector. LVDS resolution is up to 1920x1200 in 24-bit dual channels.
 One HDMI.
2
®
dual core N2807 1.58GHz.
Introduction
