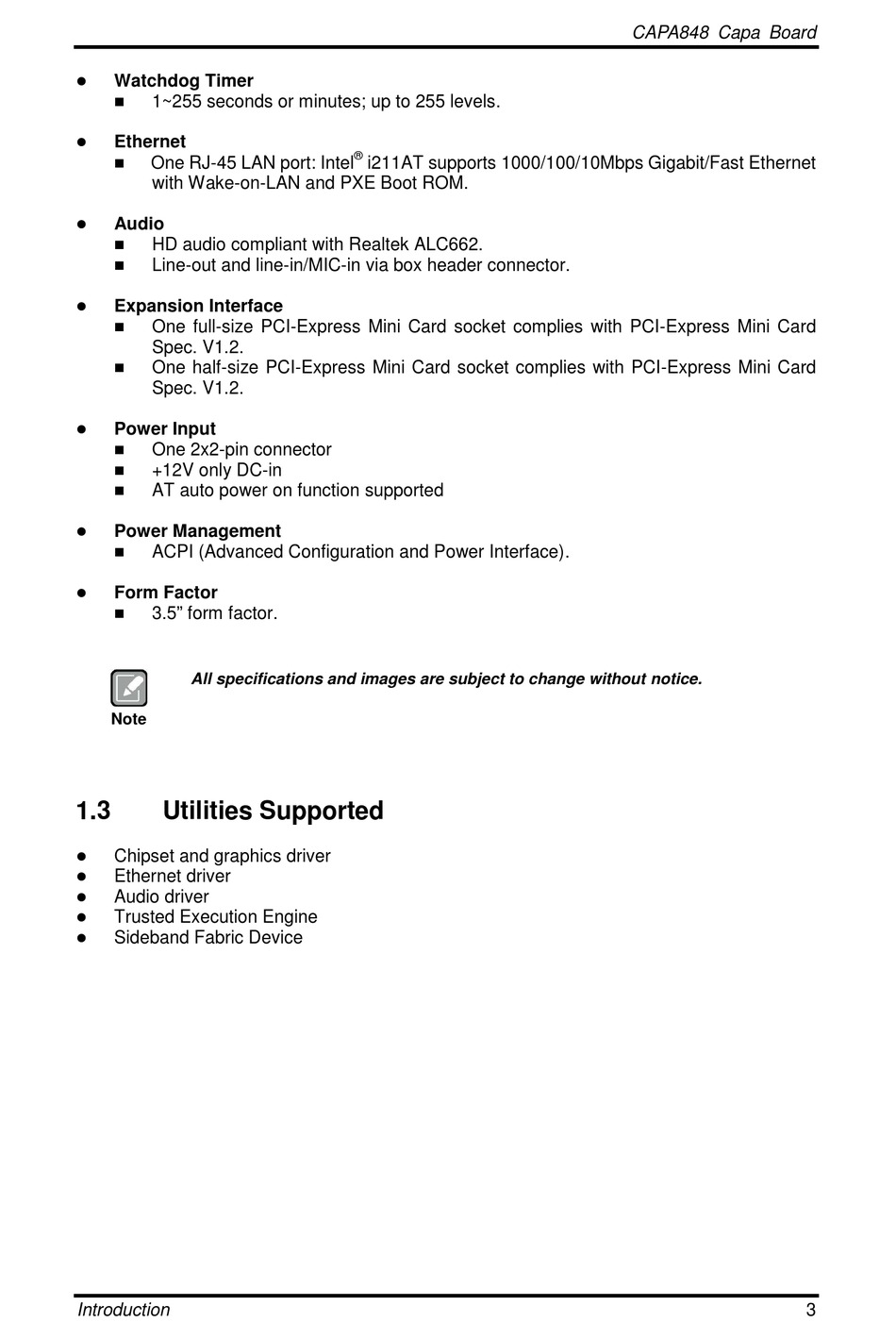

Utilities Supported - AXIOMTEK CAPA848 User Manual

 Watchdog Timer
 1~255 seconds or minutes; up to 255 levels.
 Ethernet
 One RJ-45 LAN port: Intel
with Wake-on-LAN and PXE Boot ROM.
 Audio
 HD audio compliant with Realtek ALC662.
 Line-out and line-in/MIC-in via box header connector.
 Expansion Interface
 One full-size PCI-Express Mini Card socket complies with PCI-Express Mini Card
Spec. V1.2.
 One half-size PCI-Express Mini Card socket complies with PCI-Express Mini Card
Spec. V1.2.
 Power Input
 One 2x2-pin connector
 +12V only DC-in
 AT auto power on function supported

Power Management
 ACPI (Advanced Configuration and Power Interface).
 Form Factor
 3.5" form factor.
All specifications and images are subject to change without notice.
Note
1.3

Utilities Supported

 Chipset and graphics driver
 Ethernet driver
 Audio driver
 Trusted Execution Engine
 Sideband Fabric Device
Introduction
®
i211AT supports 1000/100/10Mbps Gigabit/Fast Ethernet
CAPA848 Capa Board
3
