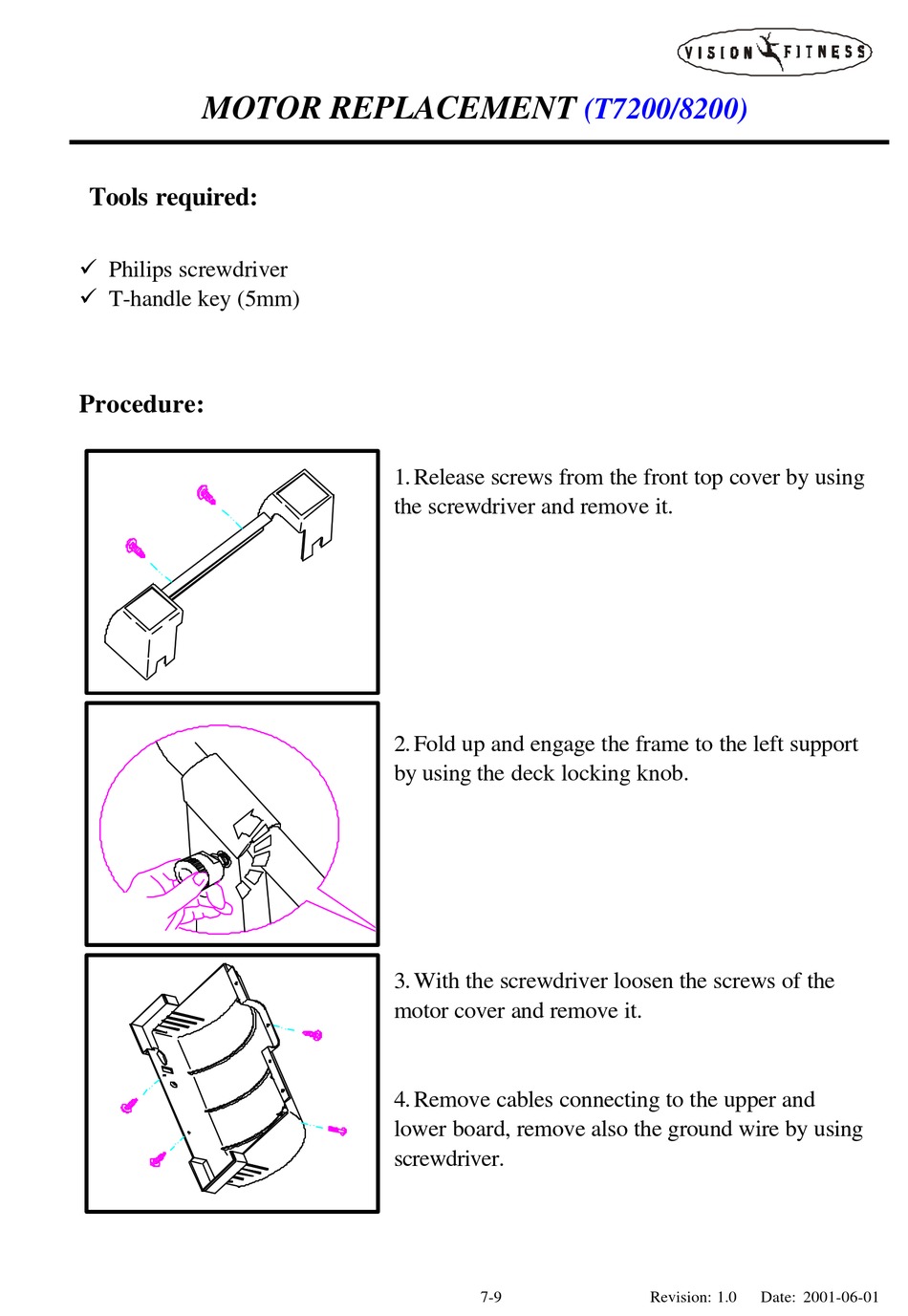

MOTOR REPLACEMENT
Tools required:
ü Philips screwdriver
ü T-handle key (5mm)
Procedure:
1. Release screws from the front top cover by using
the screwdriver and remove it.
2. Fold up and engage the frame to the left support
by using the deck locking knob.
3. With the screwdriver loosen the screws of the
motor cover and remove it.
4. Remove cables connecting to the upper and
lower board, remove also the ground wire by using
screwdriver.
7-9
(T7200/8200)
Revision: 1.0
Date: 2001-06-01
